Product Description

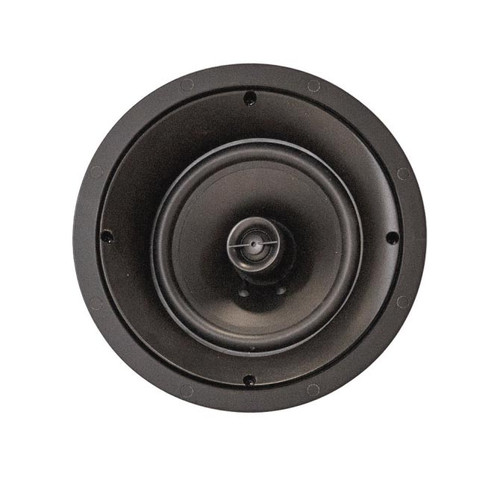

Phase Technology CS-6R 6.5" 2-way In-Ceiling Speaker

Overview

6.5" Coax In-Ceiling Speaker w/ Micro-Flange Grille. The CS-6R redefines what should be expected in an affordable in-ceiling speaker, offering the looks, performance, and cost of most other manufacturers®' premium-priced solutions. The CS-6R model features a 6.5" coaxial polypropylene cones with butyl rubber surrounds, a variable-axis soft dome tweeter, a true high-pass/low-pass crossover, high-quality metal binding posts and a magnetic micro-flange grille. The CS-6R®'s micro-flange is one of the thinnest on the market, with a bezel that is nearly invisible, which is paintable to blend in with the ceiling. The CS-6R pairs with Phase Velocity®'s V52, V62 and V5520.

Specifications

Manufacturer: Phase Technology

Manufacturer's Category: CS Professional Series

Depth: 3.4 in / 86.4 mm

Width/Diameter: 9.1 in / 231.1 mm

Shipping Weight: 3 lbs / 1.36 kg

Carton Height: 4 in / 101.6 mm

Carton Length: 10.5 in / 266.7 mm

Carton Width: 10.5 in / 266.7 mm

Enclosure Properties: Infinite Baffle

Included Accessories: Grille, Hole Template

Optional Accessories: Pre-Construction Bracket (RB21)

Source Inputs: Metal Push Binding Posts

Cutout Width/Diameter: 8.06 in / 204.7 mm

Frequency Response (± 3 dB): 50 Hz - 20 kHz

Grille Properties: Flangeless, Magnetic, Powder-Coated, White, Paintable

Mounting Depth: 2.87 in / 73 mm

Nominal Impedance (Ω Ohms): 8 Ω

Tweeter Driver: .75" Variable Axis Soft Dome

Woofer Driver: 6.5" Coaxial Polypropylene w/ NBR Surround

Recommended Power: 5-100 W

Sensitivity dB @ 2.83V/1M: 87 dB
