Product Description
PCI Standard "normally open" Relay Card
Model number 54-015031-01

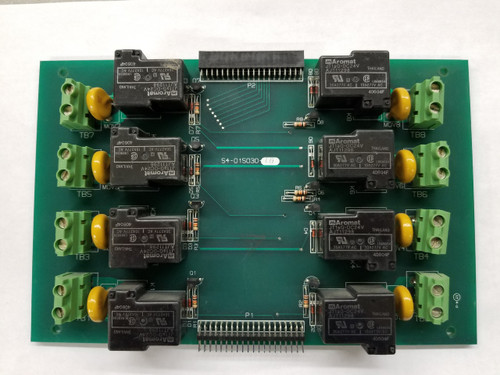

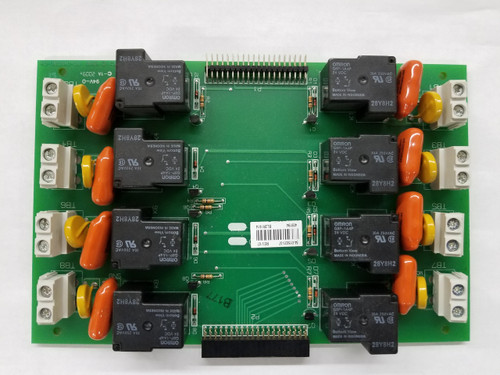

This relay card contains eight (8) individually controlled relays.
This relay card is compatible with the following lighting control systems:
- Control Keeper
- DMX Keeper
- Watch Keeper
- Light Keeper
- Switch Keeper
- Eaton GreenGate
Please note that this relay card does not come with the newer "latching" relays, but rather the standard "normally open" relays.
This product may also be associated with the brands Leviton, Eaton, Cooper, or Lithonia, due to brand restructuring.
If you have any questions or concerns, please feel free to give us a call at 866-457-5937.
************************************
Overview
The Parallel Relay Card (xRC) is a standard feature in the DMXKeeper and LiteKeeper lighting control systems. Each Parallel Relay Card contains 8 20 amp relays. Specify up to 4 total relay cards per enclosure.
Description
Electronic arc suppression is incorporated into the relay design, prolonging contact life. Self aligning connectors on the Parallel Relay Card allows easy field expansion. You can add another standard or any of the optional relay cards to a system at any time (enclosure size allowing).
Installation
No additional installation required. The Parallel Relay Card(s) (xRCs) attach directly to your specified enclosure.
Catalog # Relay Type
SRC-NO Standard Relay Card with 8 20A 120/277 VAC normally open relays
Specifications:
Standard Relay Card (SRC) Ratings:
• 20A, 120/277 VAC
• Normally open or normally closed
• Maximum wire size: 10 AWG
• Mechanical operations: 10 million
