Product Description

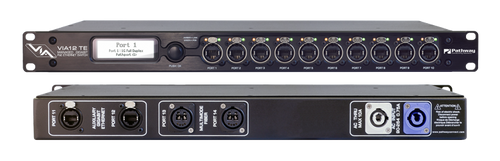

Pathway Connectivity PWVIA RM P12 RJ45EC SFPSLOT NONPOE VIA12 Gigabit Ethernet Switch, 12 Port (does not support PoE) (Old Part#6750)
The VIA™ series of Ethernet Switches are designed specifically for lighting, sound and video signal distribution in all entertainment production systems, including live shows. Unlike switches designed and marketed for office and communication applications, VIA switches ship unmanaged, pre-configured and optimized for entertainment network use. Advanced management features, including VLAN Support, EAPS Ring Protection, IGMP. The VIA Rack-mount switches feature robust housings that will stand up to the abuse of touring shows and theatre backstages. This Pathway Pro marked product, geared for advanced entertainment lighting system applications and is available only to authorized buyers.
Features
- 12 locking RJ45 etherCON ports (10 on front panel, 2 on rear)
- Ports support 10/100/1000Base-T speeds
- Two mini-GBIC ports for SFP/SFP+ fiber modules; models pre-populated with 1GB or 10GB SFP transceivers available
- Supports SFP/SFP+ Direct-Attach cables, both active and passive
- Integrated 100W Power-over-Ethernet (PoE) supply for powering compatible external devices, up to 15W per port [POE model]
- Illuminated LCD and rotary encoder for displaying and setting switch and port properties
- Advanced features include IGMP Querier and Snooping, DHCP server per VLAN, Dante-compliant QoS options, EAPS Ring Protection, RSTP
- Art-Net to sACN conversion
- LED Indicators for Device Status/ Processor, Global PoE Status, Port PoE and connected device Link Status
- Global properties editable from front panel interface: IP Address, Subnet Mask, Default Gateway, VLAN Configuration, Link Speed, PoE Allocation, DHCP Pool, Ring Protection. IGMP Filtering, QoS Options
- Properties displayed by front panel interface: Switch Name, Port Name, PoE Usage, Serial Number, MAC Address, Firmware Version, Connected Devices (LLDP), Ring Status, Link Status, Port Status, Ring Status, Bandwidth Usage, Switch Chip Temperature
- Silent operation: fanless, convectioncooled design
- 1 RU (Rack Unit) high housing fits standard 19" equipment racks
- Operates on 100-240VAC 50/60Hz wide-ranging power input
- Standard IEC Power input
- Reversible Rack ears included
- Wall-mount (PWACC WMLG) and Truss-mount (PWACC TMLG) accessories available
- Also available in DIN-mount (PWVIA DIN) form factor, and Touring Edition with opticalCON Connectors (PWVIA RM P12 RJ45EC [DUO/QUAD])
Accessories
- PWACC WMLG Pathway Accessory, Large Rack-mount to Wall-mount kit
- PWACC TMLG Pathway Accessory, Large Rack-mount to Truss-mount kit
- PWACC SFP Pathway Accessory, SFP 850nm 1GB Ethernet Optical Transceiver (VIA8, VIA12, VIA16)
- PWACC SFPP Pathway Accessory, SFP+ 850nm 10GB Ethernet Optical Transceiver (VIA8, VIA12)
- PWACC EARS Pathway Accessory, 19" Replacement Rackmount Ear Kit
