Product Description

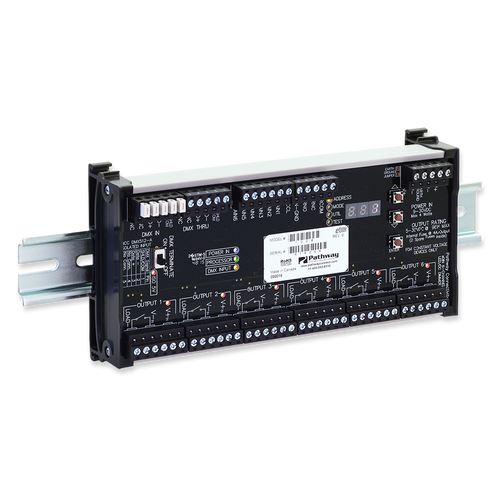

Pathway Connectivity PWINF DIN PWM4A 6-Channel LED Dimmer/DC Driver (Old Part #1008)
The eDIN #1008 provides direct pulse-width modulation (PWM) control of common anode, constant voltage LED fixtures—typically string lighting. Multiple modes, including 16-bit, ensure a smooth dimming curve. The module also provides efficient switching control of DC devices such as solid state relays and solenoids.
- DMX512 start address and operating mode may be set from front panel interface or remotely using E1.20 RDM
- Controls constant voltage LED fixtures rated between 5 to 30 VDC
- Six PWM outputs, individually fused at 4A
- 6A-fuse model available for use with 12V LED fixtures
- Two spare fuses included
- DMX512-present relay (normally open or normally closed)
- Contact closure ‘panic’ input drives all outputs to full
- Auxiliary 0-10V analog inputs HTP-merged with DMX input
- Indicator LEDs for power, processor, DMX input, active output
- User-adjustable smoothing algorithm
- User-adjustable minimum and maximum output levels
- Multiple loss-of-signal options
- Pluggable terminal block connections accept solid or stranded wire between #26 and #16 AWG
- One DMX512-A/RDM data input connection
- One passive DMX512-A data through connection
- Data and power easily daisy-chained between modules
- Termination switch
- User-initiated diagnostics and test modes
- Firmware field-upgradable using RDM (requires Pathway Pathport gateway and RDM utility program)
Included
- DIN tray (housing) with end caps
- 11” (280mm) x 35mm DIN rail
- Installation/Operations manual
Modes
- Default LED Control
- DMX Double Precision with Curve
- DMX Double Precision without Curve
- Non-Dim Mode
- Single Channel Control
- Three Channel Mirror with Curve
- Three Channel Mirror without Curve
Specs
- 4A at 24VDC per output maximum (96W)
- 1500V opto-isolation between input and output ports
- 250V fault protection on input and output ports
- Input operating voltage: 9-30 VDC
- 5W power consumption
- Operating conditions: 0-50°C; 10-90% relative humidity, non-condensing
- 0.70 lbs (0.316 kg)
- 3.6”W x 8.0”L x 1.5”H (91mm x 200mm x 38mm)
- Compliance
- ANSI E1.11 DMX512-A(2008)/USITT DMX512(1990)
- ANSI E1.20 RDM(2010) - Remote Device Management
- RoHS 2002/95/EC
- Class 2 Low Voltage
Accessories
|
1001-050-24-DIN |
50 Watt, 24VDC Power Supply, DIN-Mountable |
|
1001-100-24-DIN |
100 Watt, 24VDC Power Supply, DIN-Mountable |
|
1103 |
eDIN Rack Mount Panel, |
|
1105 |
eDIN System Enclosure, 10" x 13" x 4.5" |
|
1106 |
eDIN System Enclosure, 10" x 23" x 4.5" |
|
1107 |
eDIN System Enclosure, 10" x 23" x 4.5" |
|
1108 |
eDIN System Enclosure, 10" x 13" x 4.5" |
|
1109 |
Expanded eDIN System Enclosure 18.5" x 31.5" x 6.5" |
|
4000 |
eDIN Enclosure Assembly Service |
