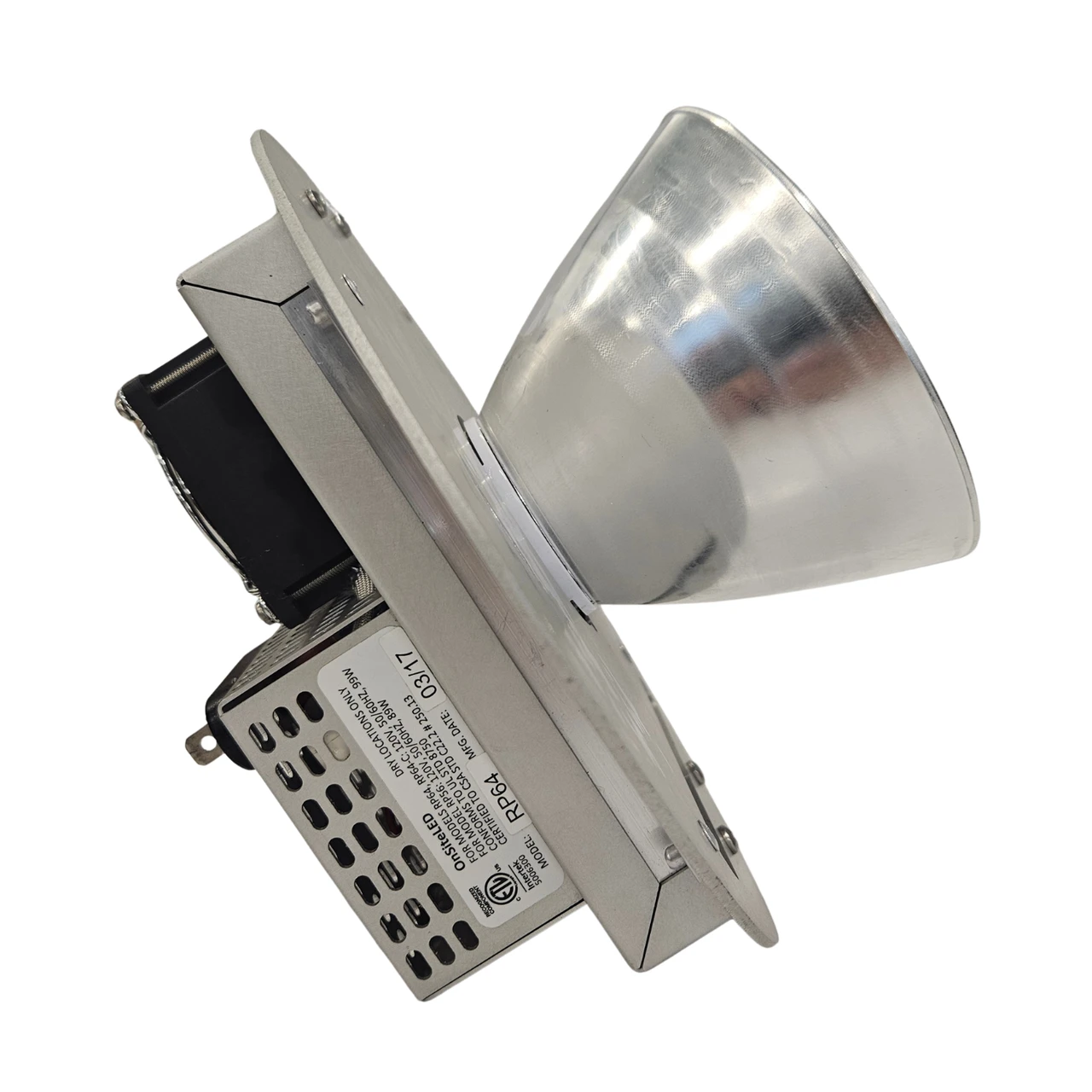

OnSiteLED RP64 Par 64 LED lamp
RP64: The PAR64 LED Solution
Introducing an energy efficient LED replacement for standard PAR64 incandescent light bulbs.
• Drop in replacement, compatible with existing dimmer systems and wiring
• Tool-less, interchangeable reflector optics
• Significantly lower power use
• Significantly lower heat
The RP64 is OnSiteLED's ETL-listed, energy-efficient LED replacement for standard PAR64 incandescent light bulbs. They are an easy, drop-in replacement for your old bulbs, compatible with existing fixtures, dimmer systems and wiring.
Just plug it in and go!
RP64 LED lamps use 1/10th the power of a 1000 watt bulb and produce significantly less heat. The tool-less, interchangeable reflector optics allow you to select the bulb's beam angle on the fly, without changing lamps!
KEY FEATURES OF THE RP64
1 - 12000 to 14000 lumen LED that's available in 2700K to 6500K CCT color temperatures and up to 97 CRI*
2 - All-metal enclosure with 8-inch diameter mount to fit all standard Par64 fixtures. Designed and made in the USA
3 - Six choices of interchangeable reflectors for quick and easy light pattern changes. No tools or lamp swap required!**
4 - Ultra efficient 100W power supply, tested and compliant to UL 8750 standard, line power use is ~0.83A at 120 VAC
5 - Fitted with ''Super Silence' series fan for cool and quiet running at less than 11dB
6 - True drop in bulb replacement, 'plug and play' into any fixture with a mogul plug socket
Specifications
- Form Factor: PAR64 Fixture Compatibile
- Dimensions: 8” diameter by 5” depth (short reflector)
- Lamp Base: GX16d Mogul End-Prong
- LED element: BridgeLux Vero29 Gen7 LED
- Color Temperatures Available: 2700, 3000, 3500, 4000, 5000, 5600, 6500 K CCT
- Consistant color temp across dimming range
Operating parameters
- Lumen Output: ~12000 to14000 lm
- Line Power Use: ~100W (0.83A at 120 VAC)
- Minimum expected life: 50,000 hours*
- LED Current and voltage: 2.4 A at 36 V
- Ultra quiet cooling fan: <11dB
Reflector optics
Long (Angela) or short (Angelina) in Spot, Medium, and Wide patterns
Completely tool-less quick connect and change reflector system
Note: Not all configurations are available. If you select a configuration which is not available, then we will work with to determine the best configuration.
The MOST COMMON color temperatures are 2700 K and 3000 K.
The MOST COMMON orders are 3000 K, 80CRI (optics vary), followed by 3000 K, 90CRI and 5600 K, 90 CRI (used predominantly for film & tv)
******************************************
The OnSiteLED RP64 Optics are what determine the shape of the light.
You have the choice of a short (S) or Tall (T) Optics (which is a Reflector), which is what creates the optics of the light output.
The number is the degree of the reflector. The lower the number, the tighter the light output and the larger the number, the wider the light output.
In this case, here is a brief explanation:
1) T22 - Tall Reflector, 22 degrees, Narrow Spot
2) T29 - Tall Reflector, 29 degrees, Medium Flood
3) T46 - Tall Reflector, 46 degree, Wide Flood
4) S39 - Short Reflector, 39 degree, Narrow Spot
5) S51 - Short Reflector, 51 degree, Medium Flood
6) S64 - Short Reflector, 64 degree, Wide Flood
Most of the time, we just use the short reflectors, but the tall reflectors do a better job at transmitting the lumens to the area that you are lighting.
You can see the spread of the optics at the following website link: http://www.onsiteled.com/products.html
Just scroll down about 2/3 of the way down the page to see the optics and footcandles.
You can see that the footcandles for the tall reflector are significantly more than the short reflector, but both footcandles are very high.
There are over 10,000 Lumens that are being output of the LED of the OnSiteLED RP64. This is a lot of light output.
The OnSiteLED RP64 provides good color temperature options, CRI, and is dimmable on just about any dimmer system.
Other Details
The OnSite LED manufacturer warranty is one year from the date of purchase.Product Videos
