Product Description

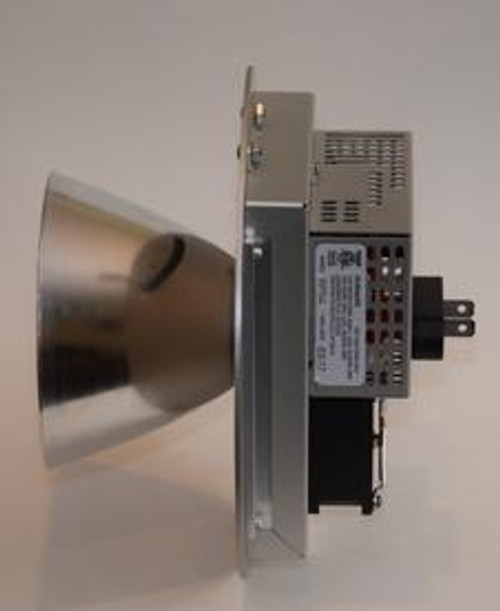

OnSiteLED RP56 Par 56 LED lamp, 3000K, 80CRI
Energy efficient LED replacement for standard PAR56 incandescent light bulbs
Please note that there are other color temp and CRI options available. Please email us at info@goknight.com for pricing on other color temp and CRI combinations.
Ordering Options:
A - Color Temp (CCT) - 2700K, 3000K, 3500K, 4000K, 5000K, 5600K, 6500K
B- CRI - 65, 70, 80, 90, 97
C -Optics - T22, T29, T46, S39, S51, S64
1) T22 - Tall Reflector, 22 degrees, Narrow Spot
2) T29 - Tall Reflector, 29 degrees, Medium Flood
3) T46 - Tall Reflector, 46 degree, Wide Flood
4) S39 - Short Reflector, 39 degree, Narrow Spot
5) S51 - Short Reflector, 51 degree, Medium Flood
6) S64 - Short Reflector, 64 degree, Wide Flood
*******************************************************************************************************
Introducing an energy efficient LED replacement for standard PAR56 incandescent light bulbs.
• Drop in replacement, compatible with existing dimmer systems and wiring
• Tool-less, interchangeable reflector optics
• Significantly lower power use
• Significantly lower heat
ONSITELED RP56 LED Specifications
Form Factor
PAR56
Dimensions
7” diameter by 5” depth (short reflector)
Lamp Base
GX16d Mogul End-Prong
LED element
BridgeLux Vero29 Gen7 LED
Color Temperatures Available: 2700, 3000, 3500, 4000, 5000, 5600, 6500 K CCT
Consistant color temp across dimming range
Operating parameters
Lumen Output: ~9400 to11000 lm
Line Power Use: ~80W (0.67A at 120 VAC)
Minimum expected life: 50,000 hours*
LED Current and voltage: 1.87 A at 36 V
Ultra quiet cooling fan: <17dB
Reflector optics
Long (Angela) or short (Angelina) in Spot, Medium, and Wide patterns
Completely tool-less quick connect and change reflector system**
Photometrics
(3000K CCT @ 10’)
Angela - Spot: 22° ~425 fc
Angela - Med: 29° ~225 fc
Angela - Wide: 46° ~140 fc
Angelina - Spot: 39° ~125 fc
Angelina - Med: 51° ~92 fc
Angelina - Wide: 64° ~76 fc
Compare with 500W WFL: ~200 fc
Note: Not all configurations are available. If you select a configuration which is not available, then we will work with to determine the best configuration.
The MOST COMMON color temperatures are 2700 K and 3000 K.
The MOST COMMON orders are 3000 K, 80CRI (optics vary), followed by 3000 K, 90CRI and 5600 K, 90 CRI (used predominantly for film & tv)
