Product Description
MIPRO MPC-100 Receivers Power Supply Storage Case
Overview

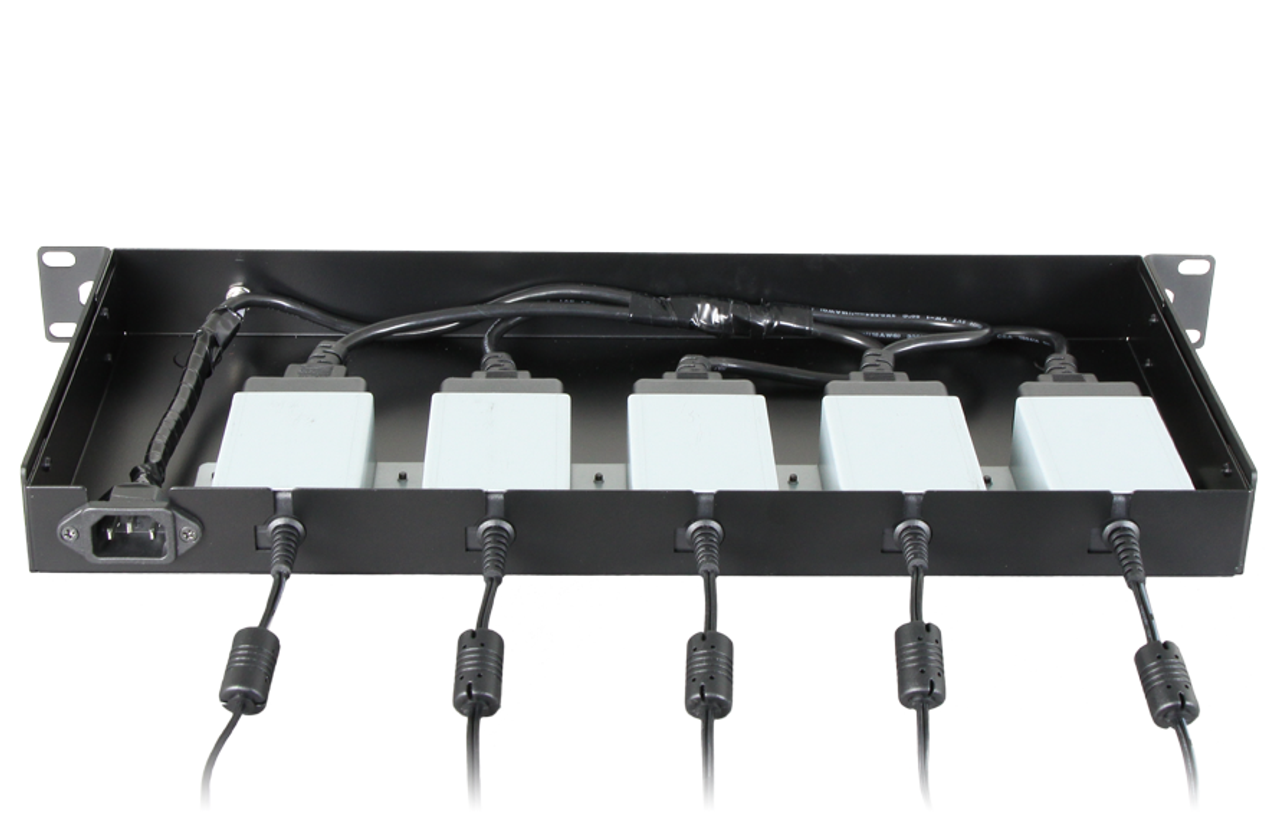

The MPC-100 uses an EIA standard full-rack metal case where the front panel has a power indicator and the rear panel has one AC input socket and 5 DC output jacks. In addition, there is a bracket that holds 5 PSUs and there are screws that provided so as to attach the bracket to the bottom of the garnering case.
When a sound engineer is installing multiple wireless systems in a fixed or portable rack case, the most troublesome job is to organize and fix both the power supply unit (PSU) and power cords that are in the back of a rack case. The MPC-100 allows engineers to pre-install the original PSU of the wireless system into the cabinet. By doing so, you have the benefit of using one power cord for the whole rack as all PSU and their power cords will be safely and neatly stored within the garnering case which is connected to an extension power cord and only the DC output cables need to connect to the receivers.
Specifications
Name | Receivers Power Supply Storage Case |
Chassis | EIA standard 1U metal case |
Panel | The front panel has a power indicator and the rear panel has one AC input socket and 5 DC output jacks. In addition, there is a bracket that holds 5 PSUs and screws are provided to attach the bracket to the bottom of the garnering case. |
Dimensions | 482 × 44 × 155 mm (W×H×D) |
Weight | Approx. 1.6 kg |
