Product Description
MegaLite Tetra Driver 4, Constant Voltage Driver
Overview
The Mega-Lite Tetra Driver 4 is an efficient and versatile power/data supply unit designed specifically for the Mega-Lite Light Pipe and Tetra Series. This all-in-one solution is perfect for controlling a wide range of lighting installations, offering four individual 96W outputs that can be addressed within your preferred channel mode. The Tetra Driver 4 is ideal for both indoor and outdoor venues, thanks to its IP65 rating, which provides protection against water and dust, ensuring reliable operation even in challenging environments.
One of the key features of the Tetra Driver 4 is its versatile mounting options. The unit is equipped with multiple mounting points, including M10 clamp mounts, mounting holes, and accessory DIN rail mounts, making it easy to install in a variety of settings. Whether mounted on a wall, clamped onto a truss, or installed in a rack, the Tetra Driver 4 offers flexibility for both permanent installations and temporary setups. Its durable aluminum extrusion housing further enhances its suitability for rugged outdoor environments, ensuring that it can withstand the demands of professional lighting applications.
This driver unit provides four 96W output ports, each delivering constant 24V power to your lighting fixtures. The Tetra Driver 4 is particularly well-suited for use with the Light Pipe series, allowing you to create custom combinations of lengths and configurations depending on your project's requirements. Each of the four 5-pin XLR outputs can be individually controlled, providing precise management of your lighting system. The unit also supports Lumen Radio Wireless DMX, offering the convenience of wireless control for DMX-connected fixtures, making it ideal for installations where wired control may be challenging or impractical.
Designed for ease of use, the Tetra Driver 4 features a digital display that allows for manual configuration and control. It offers five different DMX channel modes, giving you the flexibility to choose the level of control you need. Whether you require simple dimming control or more complex multi-color effects, the Tetra Driver 4 can handle it all. With modes ranging from 1-channel dimmer control to 7-channel control of RGBW colors, dimming, strobe, and macro effects, this driver offers comprehensive options for controlling your lighting system. Additionally, it comes pre-programmed with 17 preset programs, providing even more versatility for different applications.
The Tetra Driver 4 is designed with a robust internal cooling system, featuring an internal fan to keep the unit operating at optimal temperatures. With a working ambient temperature range of 24°F to 148°F, the driver can operate efficiently in both extreme cold and hot environments, making it ideal for outdoor events and installations. The unit operates at a high refresh rate of 4,000Hz, ensuring flicker-free performance, which is essential for video recording and broadcast applications.

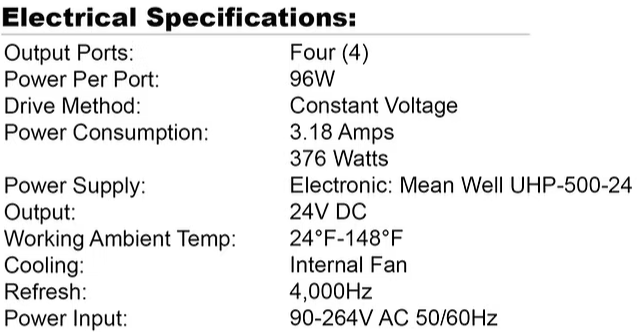

In terms of power, the Tetra Driver 4 is highly efficient, drawing just 376 watts and 3.18 amps of power. It is equipped with a Seetronics SAC3FX IP-rated connection for reliable power input, and it includes a NEMA 5-15 cable for added convenience. The driver is powered by an electronic Mean Well UHP-500-24 power supply, providing consistent 24V DC output to each of its four ports. The driver is also DMX 512 compatible, ensuring smooth integration with other DMX-controlled lighting systems.
With its compact size, durable construction, and comprehensive feature set, the Mega-Lite Tetra Driver 4 is the perfect solution for lighting professionals looking to power and control multiple fixtures with ease. Its versatile mounting options, wireless DMX capabilities, and IP65 rating make it an ideal choice for both indoor and outdoor installations, providing reliable performance and precise control in any environment.

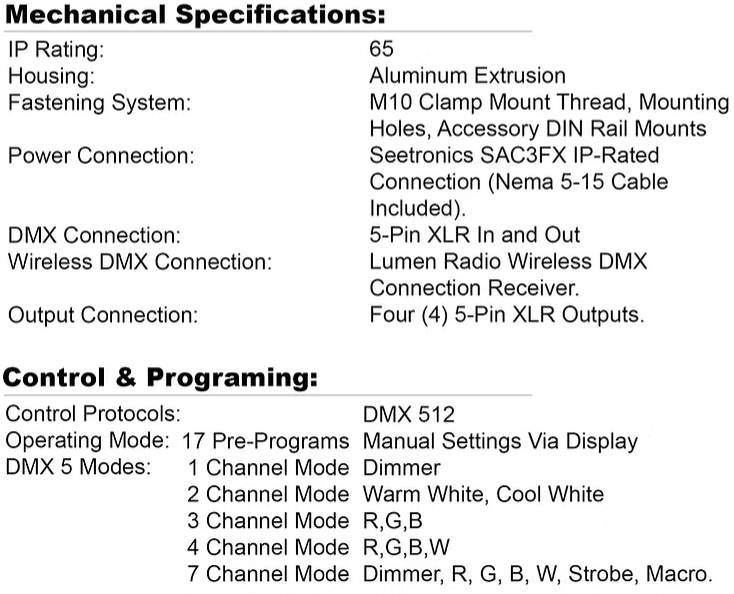

Features
- All-in-one 4-output power/data supply for the Mega-Lite Light Pipe and Tetra Series, delivering 96W per output at a constant 24V.
- IP65-rated for water and dust resistance, making it suitable for both indoor and outdoor installations.
- Features multiple mounting options, including M10 clamp mounts, mounting holes, and DIN rail mounts for easy installation in various setups.
- Supports Lumen Radio Wireless DMX, allowing for wireless control of DMX-connected fixtures, ideal for installations where wired connections are impractical.
- Offers five DMX channel modes, including 1-channel dimmer control, 2-channel warm/cool white, and 7-channel RGBW control with strobe and macro effects.
- Equipped with a digital display for manual configuration and control, along with 17 pre-programmed effects for quick setup and operation.
- High refresh rate of 4,000Hz ensures flicker-free performance, making it suitable for video recording and broadcast applications.
- Draws 376 watts and 3.18 amps of power, powered by a reliable Mean Well UHP-500-24 power supply with Seetronics SAC3FX IP-rated connection and included NEMA 5-15 cable.
- Compact and durable, with an aluminum extrusion housing and internal fan for optimal cooling, ensuring reliable operation in temperatures ranging from 24°F to 148°F.
