Product Description
Martin Lighting VDO Sceptron 40 Linear LED Video Batten with 40mm Pixel Pitch
Overview
The VDO Sceptron 40 is a linear outdoor-rated LED video fixture for the rental market with 40 mm pixel pitch and an extensive range of optical accessories for a wide variety of looks. The VDO Sceptron 40 is driven by the Martin P3 System Controller family for easy configuration, mapping and setup, and is also backwards compatible with DMX for smaller setups. The integrated power and data cabling allows for long daisy-chains with many fixtures per cable-run, while the power supply can be located backstage (up to 50 m away) for a clean setup avoiding messy cabling and several driver boxes.
- Extensive range of field-exchangeable optical accessories for a wide variety of looks
- Easy setup, mapping and configuration
- Bright and fully calibrated for optimal consistency
- Complete range of rigging accessories available
Features
- Supported by integrated power and data processor (P3 PowerPort 1500, P3 PowerPort 1000 IP or DMX PowerPort 375) and simple cabling system
- Combined power and data cabling (compatible with other products such as VDO Fatron and VDO Dotron)
- DMX Control
- P3 Control with VideoMapping
- Hybrid DMX + P3 Control (toggle in real-time between DMX, PixelMapping and VideoMapping using P3 Switch channel)
- Extensive range of built-in effects
- Intuitive mapping and addressing via P3 System Controller
- Fully brightness and color calibrated for optimal consistency between products (colors matched with VDO Fatron and VDO Dotron)
- Pixel-level brightness and color calibrated for a completely homogenous look
- High-quality 16-bit per color image processing technology
- 40 mm pixel pitch
- 62 cd per meter calibrated
- 187 lumen per meter calibrated
- Field-exchangeable diffusers and lenses
- IP65 rated for outdoor use
- Versatile rigging accessories
- Available in two lengths: 1000 mm and 320 mm
Specifications
Length: 320 mm (12.6 in.)
Width: 27 mm (1.06 in.)
Height without front: 28 mm (1.10 in.)
Height with standard front (Square Diffuser): 42 mm (1.65 in.)
Weight without front: 0.40 kg (0.9 lbs.)
Weight with standard front (Square Diffuser): 0.50 kg (1.1 lbs.)
Length: 1000 mm (39.4 in.)
Width: 27 mm (1.06 in.)
Height without front: 28 mm (1.10 in.)
Height with standard front (Square Diffuser): 42 mm (1.65 in.)
Weight without front: 1.2 kg (2.6 lbs.)
Weight with standard front (Square Diffuser): 1.4 kg (3.1 lbs.)
Control modes, direct DMX control: RGB, Basic, Segment and PixelDMX channels, direct DMX control: 3/10/13/22/31/82Control modes, DMX via P3: P3 Intensity, P3 RGB, P3 Basic, P3 Hybrid and P3 PixelMapDMX channels, DMX via P3: Wide range of options from 1 to 78
*Figure obtained under manufacturer’s test conditions
Binning: Tight color and flux binningCalibration: Full Gamut Pixel Calibration
Diffuser/Lens Options:
Open Front
Flat Diffuser
Flat Smoked Diffuser
Round Diffuser
Round Smoked Diffuser
Square Diffuser (supplied standard with fixture)
Square Smoked Diffuser
Tube Diffuser
Tube Smoked Diffuser

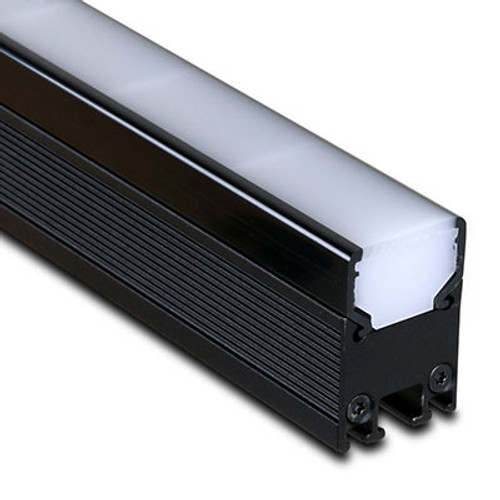

NoBlend Diffuser 40 mm

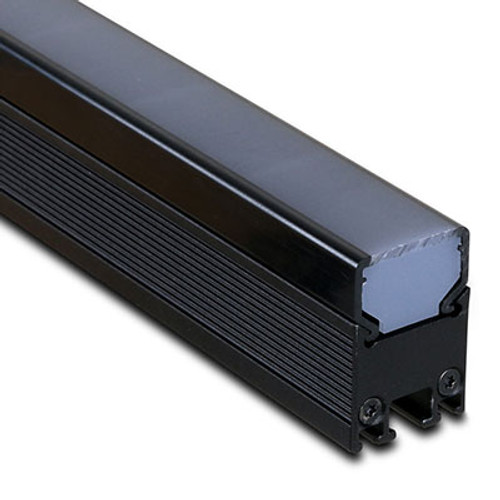

NoBlend Smoked Diffuser 40 mm

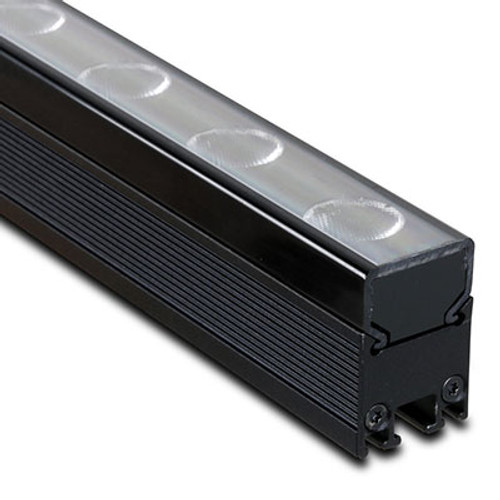

Lens Array Narrow 40 mm
Asymmetric (Wall-Washing) Lens
All optical accessories are interchangeable and clip onto fixtures
Pitch (pixel center-to-center): 40.00 mm
Luminous intensity, calibrated mode: 62 cd per meter
Luminous output, calibrated mode: 187 lumen per meter
Total output, calibrated mode: 2083 nits (fixtures placed in continuous surface at 30 mm center-to-center)
LED Array VDO Sceptron 40 320mm: 1 x 8
LED Array VDO Sceptron 40 1000mm: 1 x 25CCT: 6500 Kelvin
LED refresh rate - Standard Mode: 1001 Hz
LED refresh rate - High Refresh Mode: 4004 Hz
* All Photometric Data measured in steady state (30 minutes warm-up time) at 25°C ambient.
Brightness control
Gamma correction and control
Color temperature control
Color space control
Calibration processing
Synchronization
VDO Sceptron™ 40, 320 mm: 10 BTU/hr
VDO Sceptron™ 40, 1000 mm: 30 BTU/hr
LWR = Lumen-to-Weight Ratio
