Martin Lighting VDO Fatron 20 LED Video Blade With 20mm Pixel Pitch
Overview
Your creative VDO toolbox just got bigger, more dynamic and way more flexible, making your P3 System Controller even more versatile.
VDO Fatron 20 is a 20 mm pixel pitch outdoor-rated LED video batten with an extensive range of optical accessories for a wide variety of looks that allows you to seriously play with creativity in 3D stage designs. Easy video-mapping and creative mix ‘n’ match with other Martin LED video products via the P3 System Controller. It uses the same integrated power and data cabling as VDO Sceptron and VDO Dotron, making installation a breeze. Be creative.
- The perfect expansion of your creative VDO toolbox for exciting 3D stage setups
- Extensive range of field-exchangeable diffusers and lenses for a great variety of looks
- Easy setup, mapping and configuration via P3 System Controller
- Complete range of rigging accessories available
Features
- Supported by integrated power and data processor (P3 PowerPort 1500, P3 PowerPort 1000 IP or DMX PowerPort 375) and simple cabling system
- Combined power and data cabling (compatible with other products such as VDO Sceptron and VDO Dotron)
- DMX Control
- P3 Control with VideoMapping
- Hybrid DMX + P3 Control (toggle in real-time between DMX, PixelMapping and VideoMapping using P3 Switch channel)
- Extensive range of built-in effects
- Intuitive mapping and addressing via P3 System Controller
- Fully brightness and color calibrated for optimal consistency between products (colors matched with VDO Sceptron and VDO Dotron)
- Pixel-level brightness and color calibrated for a completely homogenous look
- High-quality 16-bit per color image processing technology
- 20 mm pixel pitch
- 500 cd per meter calibrated
- 1500 lumen per meter calibrated
- 8 different diffuser options plus 1 lens option (all field-exchangeable)
- IP65 rated for outdoor use
- Versatile rigging accessories
- Available in two lengths: 1000 mm and 320 mm
Specifications
Length: 320 mm (12.6 in.)
Width: 80 mm (3.15 in.)
Height without front: 28 mm (1.10 in.)
Height with standard front (Square Diffuser): 48 mm (1.89 in.)
Weight without front: 0.85 kg (1.9 lbs.)
Weight with standard front (Square Diffuser): 0.95 kg (2.1 lbs.)
Length: 1000 mm (39.4 in.)
Width: 80 mm (3.15 in.)
Height without front: 28 mm (1.10 in.)
Height with standard front (Square Diffuser): 48 mm (1.89 in.)
Weight without front: 2.5 kg (5.6 lbs.)
Weight with standard front (Square Diffuser): 2.8 kg (6.2 lbs.)
Control modes, direct DMX control: RGB, Basic, Segment and PixelDMX channels, direct DMX control: 3/10/19/37/55/157Control modes, DMX via P3: P3 Intensity, P3 RGB, P3 Basic, P3 Hybrid and P3 PixelMapDMX channels, DMX via P3: Wide range of options from 1 to 603
*Figure obtained under manufacturer’s test conditions
Binning: Tight color and flux binningCalibration: Full Gamut Pixel Calibration
Diffuser/Lens Options:
Open Front
Flat Diffuser
Flat Smoked Diffuser

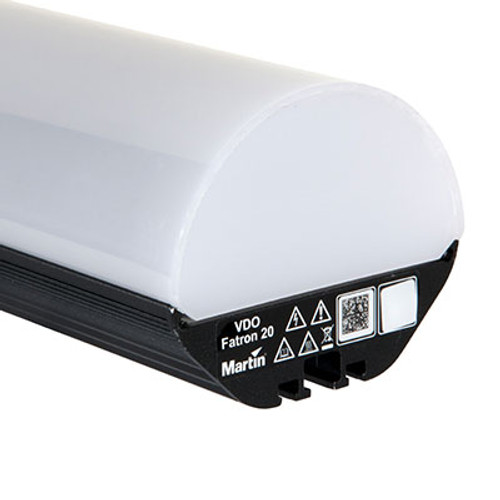

Round Diffuser
Round Smoked Diffuser

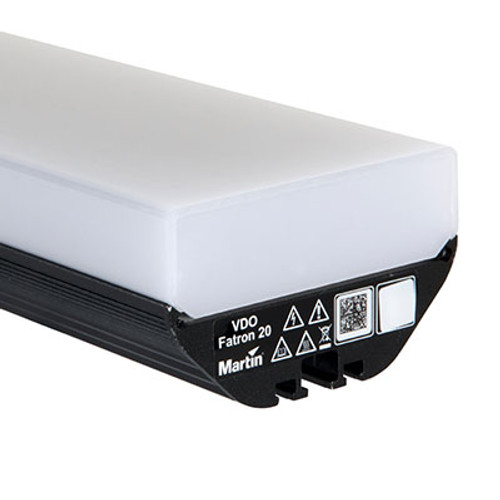

Square Diffuser (supplied standard with fixture)
Square Smoked Diffuser

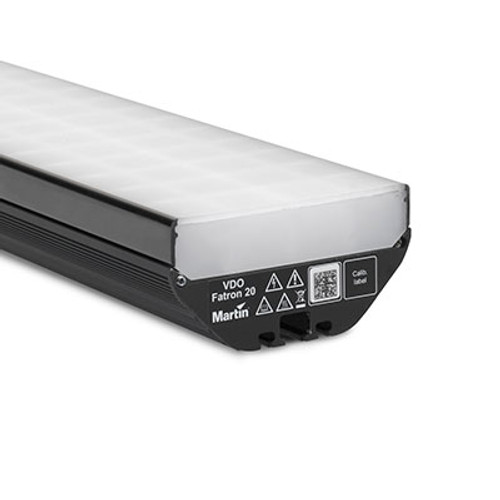

NoBlend Diffuser
NoBlend Smoked Diffuser
Lens Array Narrow
All optical accessories are interchangeable and clip onto fixtures
Pitch (pixel center-to-center): 20.00 mm
Luminous intensity, calibrated mode: 500 cd per meter
Luminous output, calibrated mode: 1500 lumen per meter
Total output, calibrated mode: 6250 nits (fixtures placed in continuous surface)
LED Array VDO Fatron 20 320mm: 4 x 16
LED Array VDO Fatron 20 1000mm: 4 x 50CCT: 6500 Kelvin
LED refresh rate - Standard Mode: 1001 Hz
LED refresh rate - High Refresh Mode: 4004 Hz
* All Photometric Data measured in steady state (30 minutes warm-up time) at 25°C ambient.
Brightness control
Gamma correction and control
Color temperature control
Color space control
Calibration processing
Synchronization
VDO Fatron™ 20, 320 mm: 70 BTU/hr
VDO Fatron™ 20, 1000 mm: 205 BTU/hr
LWR = Lumen-to-Weight Ratio
