Martin Lighting PDE BreakInOut Cable Power Input and DMX IN/THRU Adapter for Fixtures with PDE Connector
Overview

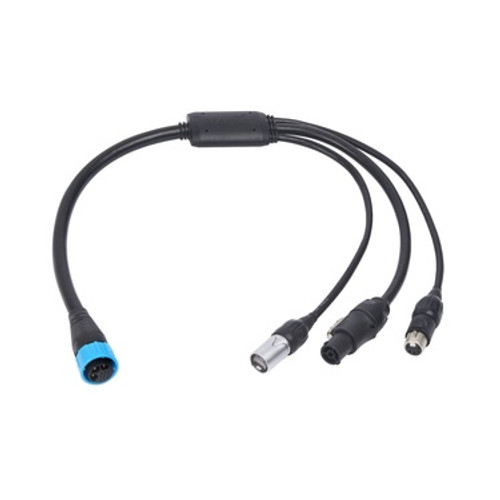

The Martin PDE BreakInOut Cable can be fitted to Martin fixtures with PDE connector to give them Power input, DMX input and DMX thru connections.
The bare power input cable allows any type of power connector to be fitted.
The male and female XLR 5 connectors enable easy daisy-chaining of fixtures (female PDE connector on fixture not used in this case).
The cable is fully IP65 rated for outdoor use and features robust connectors.
Features
- Bare cable for power input
- XLR 5 TOP DMX input
- XLR 5 TOP DMX thru
- Martin PDE Hybrid output
- IP65 rated
Specifications
Physical
Length: 500 mm (19.7 in.)
Weight: 325 g (0.52 lbs.)
Construction
Housing: PV
CColor: Black
Protection rating: IP65Cable Jacket: PVC
Installation
Location: indoor or temporary outdoor useOrientation: Any
Connections
AC power input: Bare cable (allows any type of male power connector to be fitted)
DMX input: Neutrik XLR 5-pin Male TOP (IP65)
DMX thru: Neutrik XLR 5-pin Female TOP (IP65)
AC Power and DMX out: PDE hybrid connector (IP65)
All connections hot plugging compatible
Electrical
AC power: 100-240V AC nominal, 50/60Hz
Thermal
Maximum ambient temperature (Ta max.): 75° C
Minimum ambient temperature (Ta min.): -15° C
Environmental
RoHS: Compliant
REACH: Compliant
