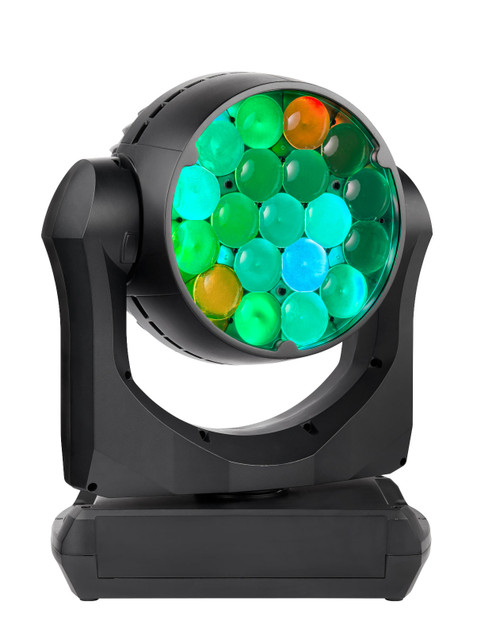

Martin Lighting MAC Aura EPS PXL Multi-Source Wash Light
Overview
The Martin MAC Aura PXL adds to the industry standard line of Martin wash lights with multi-lens and Aura backlight technology. Bigger and brighter than the MAC Aura, the PXL features significantly higher intensity and a tighter beam as well as a smaller face and less busy lens look compared to the MAC Quantum Wash. The MAC Aura PXLs bigger “bubbles” provide a more appealing look and beautiful wide wash fields.
It is also the first wash light in the market to feature individual pixel control for main beam pixels and Aura backlight with full control via DMX, Art-Net and sACN, as well as with Martin´s very own creative P3 video protocol.
The compact size and low weight, trusted Martin build quality and feature set, and simple and clever setup and control options make the MAC Aura PXL ideal for rental customers and lighting designers working in concert/touring, TV shows and corporate, as well as customers supporting the high-end nightclub market.
True Wash Light Workhorse
From a tight, high intensity, narrow beam to beautiful wash fields, incorporated into a compact and lightweight package, the MAC Aura PXL suits every application.
Bright, Vibrant Colors
The RGBW system delivers very vibrant colors with a brightness only expected from much larger fixtures. The calibrated color system excels on subtle pastels and white tones, making any MAC Aura PXL in the rig match the color point when they must.
Built for Pixel Mapping
With an all solid state color mixing system, instant color and intensity response, 19 individually controlled main beam pixels and 141 individually controlled Aura backlight pixels, the MAC Aura PXL is a great choice for pixel-mapping. The color palette can also be set to fully match the color space of any other P3-driven product in the rig, allowing the fixture to fit in seamlessly.
P3 Incorporated
On top of DMX, Art-Net and sACN, the fixture can be controlled by Martin´s P3 protocol for setup and programming and allows a rig of fixtures to deliver cohesive content that blends together with video content on panels or creative LED products. You can even blend seamlessly between console and media input sources via the P3 mix channel.
Silent Operation
With its sophisticated, low noise cooling system, the MAC Aura PXL is a true stealth operator, even in the most critical and noise sensitive environments.
Open Source
The MAC Aura PXL accepts any industry standard input source. All of its features can be controlled via DMX-512, Art-Net, sACN and Martin´s very own P3 protocol. This allows for maximum versatility in any type of control environment.
Features
Light Source
- 10,500 lumens RGBW light output
- High narrow intensity: 940,000 cd
- Pixelated Beam: 19x 40W RGBW LEDs
- Pixelated Aura: 141x 0.3W RGB LEDs
- Fully calibrated using Martin's Full Gamut Color Calibration
- Flicker-Free operation – LED driver frequency suitable for all kinds of camera applications
- LED Driver frequency adjustable for demanding applications
Optics
- Tight beam and beautiful wash field
- 6 - 59° zoom – Precise, silent and fast zoom
- Even wash field with zero hotspot
- High intensity mid-air beams
- Minor color temperature shift from center to edge
SoftLens Accessory
- Creates a softer edge wash field
- Reduces glare from fixture lens
- Minimal impact to Aura pixel effects
- Attaches to front of fixture
- Can remain attached to fixture inside flightcase SiP
Color Palette
- RGBW color mixing with very bright and vibrant saturated colors, as well as nice pastels and white tones
- Calibrated and Extended Color Modes
- Calibrated CTC control: 2,000 - 10,000 K
- Tungsten Emulation Option
- Virtual Color Wheel
Dynamic Effects
- More than 150 built-in FX macros with control of foreground color, background color, speed and direction
- P3 video mapping of fixture Beam pixels and/or Aura pixels
- P3 Mix allowing crossfade between video looks and DMX looks
- High-speed pan, tilt and zoom
Cooling and Noise
- Ultra-quiet cooling system
- Theater / Broadcast mode at just 24.6 dB(A)
- Low noise pan/tilt and effects operation
Construction
- Weight:15.60 kg (34.39 lbs.)
- Dimensions: 410 x 489 x 232 mm
Control
- Battery-powered control panel on the base
- DMX in & thru
- Ethernet in & thru, supporting Art-Net, sACN & Martin P3
- Fail-safe bypass on Ethernet ports
- RDM over DMX and RDM over Art-Net
Specifications
Width (across yoke): 410 mm (16.14 in.)
Width (base): 385 mm (15.16 in.)
Height (head straight up): 489 mm (19.25 in.)
Height (maximum): 544 mm (21.42 in.)
Depth (head): 216 mm (8.50 in.)
Depth (base): 232 mm (9.13 in.)
Minimum center-to-center distance in side-by-side installation: 440 mm (17.32 in.)
Weight: 15.60 kg (34.39 lbs)
Beam Dimmer/Shutter: 0 - 100% continuous dimming, regular and random strobe, instant open and blackout
Beam Dimming options: Choice of four dimming curves
Beam Color Mixing: RGB, independently variable 0 - 100%
Beam Color Temperature Control: Variable 2,000 – 10,000 K
Beam Virtual Color wheel: 48 color presets, continuous rotation & random color
Zoom: Motorized with 1:8 zoom ratio
Pan: Motorized 540°
Tilt: Motorized 268°
Beam PixelMapping: individual RGB control of each of the 19 Beam pixels
Beam P3 Mix: Videomapping of fixture with variable crossfade between DMX control and video control
Aura Dimmer/Shutter: 0 – 100% continuous dimming, regular and random strobe effects, instant open and blackout
Aura Dimming options: Choice of four dimming curves
Aura Color Mixing: RGB, independently variable 0 - 100%
Aura Color Temperature Control: Variable 2,000 – 10,000 K
Aura Virtual Color wheel: 48 color presets, continuous rotation & random color
Aura PixelMapping: individual RGB control of each of the 141 Aura pixels
Aura P3 Mix: Videomapping of fixture with variable crossfade between DMX control and video control
Pre-programmed effects: Two ranges of FX on Beam, Aura or Combination; independent or synchronized/combined
Control Protocols: DMX, RDM, Art-Net, RDM over Art-Net, sACN and P3
Protocol Detection: Automatic
DMX Modes: Compact, Basic, Extended & Ludicrous
DMX Channels: 17, 32, 89 & 512
16-bit Controllable Parameters: Beam & Aura Dimming, Beam Color Mixing, Pan and Tilt
Setting and Addressing: Display Menu, RDM, RDM over Art-Net or P3
Local User Interface: Backlit LCD Display with battery-powered operation
Fixture identification: User-settable ID number
DMX Compliance: USITT DMX512-A
RDM Compliance: ANSI/ESTA E1.20
Art-Net Compliance: Art-Net 1, 2, 3 and 4; including RDM over Art-Net
sACN Compliance: ANSI E1.31 - 2016
Martin P3 Compliance: P3 System Controller Software 5.1.0 or newer
DMX/RDM Transceiver: Galvanic-isolated RS-485
Ethernet Transceiver: 10/100Mbit (with fail-safe bypass)
Firmware Update: via USB type A memory device, via DMX using Martin Companion or via Ethernet using P3 System Controller
Front Lens Diameter: 255 mm (10.04 in.)
Zoom Range: 1:8
Full Zoom Range at Half Peak (Beam Angle): 6° - 40°
Full Zoom Range at Tenth Peak (Field Angle): 7° - 59°
Beam Light Source: 19 x 40 W RGBW LED
Aura Light Source: 141 x 0.3 W RGB LED
Max. Total Beam LED Engine Power: 570 W
Max. Total Aura LED Engine Power: 50 W
Minimum LED lifetime: > 50.000 hours (to > 70% luminous output)*
*Figure obtained under manufacturer's test conditions
Light Engine Luminous Output: 19,000 lumens
Fixture Luminous Output Wide: 10,500 lumens
Fixture Luminous Output Narrow: 8,500 lumens
Peak Luminous Intensity Narrow: 940,000 cd
CCT: Variable 2,000 K – 10,000 K (+/- 200 K)
CRI (Color Rendering Index): ≥ 73
CQS (Color Quality Scale): ≥ 85
TM-30 Rf (IES TM-30-15 Fidelity Index): ≥ 77
TM-30 Rg (IES TM-30-15 Gamut Index): ≥ 117
TLCI (Television Lighting Consistency Index): ≥ 61
Beam LED Refresh Rate: 1,200 Hz and 19,200 Hz mode
Aura LED Refresh Rate: 1,200 Hz and 4,004 Hz mode
Binning: Tight color and flux binning
Calibration: Full Gamut Color Calibration of Beam and Aura
Color Modes: Extended Color Mode and Calibrated Color Mode
* All Photometric Data measured in steady state (30 minutes warm-up time) at 25°C ambient
Color: Black
AC power: 100-240 V AC nominal, 50/60 Hz
Power supply unit: Auto-ranging electronic switch mode
Typical half-cycle RMS inrush current at 230 V, 50 Hz: 15.9 A
Typical earth-leakage current: 0.36 mA
Power Factor: 0.99 @ 100 V / 120 V , 0.97 @ 208 V / 230 V / 240 V
Max current draw: 6.4 A @ 100 V / 120 V , 2.8 A @ 208 V / 230 V / 240 V
Typical current draw: 5.0 A @ 100 V , 4.1 A @ 120 V , 2.4 A @ 208 V , 2.2 A @ 230 V , 2.1 A @ 240 V *
Power Consumption
Maximum: 560 W
Typical: 500 W *
Idle: 81 W *
Hibernation: 37 W *
* Measurements made at nominal voltage. Allow for a deviation of +/- 10%.
Typical: full output white, no effects moving, regulated fan speed.
Idle: no output, no effects moving, regulated fan speed.
Hibernation: no output, motors de-energized, fans stopped, wake-up procedure to re-use fixture.
LWR = Lumen-to-Weight Ratio
Safety and Installation Manual in Eng/Fre/Ger
