Product Description

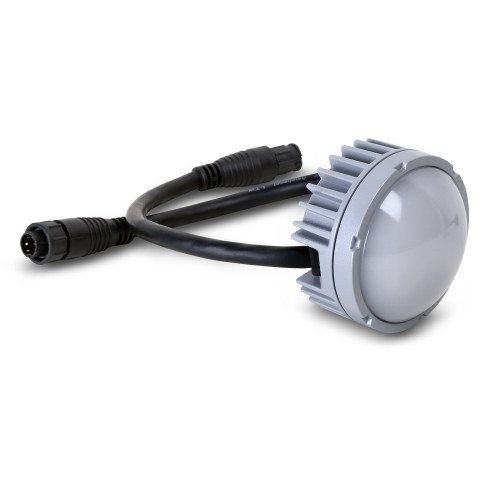

Martin Lighting Exterior Dot-HP Outdoor Rated High Output Single Dots (Diffused Dome)
Overview
Martin by HARMAN Exterior Dot-HP is a bright, outdoor-rated dot designed to create media facades or perimeter lighting on large buildings and structures for long-distance viewing. This high-performance exterior LED dot for large venues allows for long fixture runs with variable pixel pitches for flexible designs. A creative tool for lighting designers, the Exterior Dot-HP is available in two versions – RGB color mixing or cool white – with a number of front designs for a variety of unique looks. It is driven by the Martin P3 System Controller family for easy setup and video display. The Exterior Dot-HP is also compatible with RDM/DMX for smaller setups.
Features
- 100 lumen per dot calibrated
- Available in clear front, diffuser dome and directional lens variants
- RGB or cold white LED engine
- Flexible mounting system allows for customized solutions
- Local integral in-built diagnostics tool
- High-quality 16-bit per color image processing technology
- Pixel-level brightness and color calibration for optimal image quality
- P3/RDM/DMX controllable (automatic protocol detection)
- Intuitive mapping and addressing via P3 System Controller
- Combined power/data input over single cable
- Supported by integrated power and data processor (P3 PowerPort 1500 or P3 PowerPort 1000 IP) and simple cabling system
Specifications
Diameter: 72 mm (2.9 in.)
Height with clear front: 34 mm (1.4 in.)
Height with dome front: 49 mm (2 in.)
Height with directional front: 43 mm (1.7 in.)
Weight, clear front and dome front models: 300 g (0.7 lbs.)
Weight, directional front models: 350 g (0.8 lbs.)
Control options: Martin P3™ System Controller via Martin P3™ PowerPort 1500, Martin P3™ PowerPort 1000 IP and/or RDM/DMX
Control modes: RGB (RGB variants), white intensity (CW variants), basic
Control resolution: 16-bit (P3) or 8-bit (DMX) control of each color
Protocol detection: Automatic
DMX channels: 3/10
Setting and addressing: Martin P3™ System controller or RDM-compliant DMX controller
Calibration: Color and intensity for each Dot
DMX compliance: USITT
DMX512-ARDM compliance: ANSI/ESTA E1.20
Firmware update: Via Martin P3™ System Controller
Device status: Multi-color visual indication
Device test and reset: Magnetic button to call up fixture status and test fixture
Minimum LED lifetime: 50,000 hours (to >70% luminous output)*Options:
Clear Front
Dome Front
Directional Front (TIR lens)
LED manufacturer, Exterior Dot-HP RGB: Osram
LED manufacturer, Exterior Dot-HP CW: Seoul
Binning: Tight color and flux binning
Calibration: Full Gamut Color Calibration
*Figure obtained under manufacturer’s test conditions
Color resolution: 16 bits per color (48 bit per pixel)
Dot pitch: 72 mm - 500 mm (center-to-center)
Color Temperature:
Cool white (CW): 6700K±300K
RGB: 2.000 – 10.000 K (adjustable via P3 or DMX)
Viewing angle:
Clear front: 103° x 103° (half-peak)
Dome front: 125° x 125° (half-peak)
Directional front: 22° x 22° (half-peak)
RGB Dots:
Total output, calibrated mode
Clear front: 90 lumens, 36 cd
Dome front: 62 lumens, 18 cd
Directional front: 72 lumens, 270 cd
Total output, non-calibrated mode
Clear front: 120 lumens, 48 cd
Dome front: 80 lumens, 24 cd
Directional front: 96 lumens, 360 cd
Cool White Dots:
Total output, calibrated mode
Clear front: 160 lumens, 62 cd
Dome front: 110 lumens, 32 cd
Directional front: 120 lumens, 590 cd
Total output, non-calibrated mode
Clear front: 210 lumens, 82 cd
Dome front: 142 lumens, 41 cd
Directional front: 160 lumens, 775 cd
* All Photometric Data measured in steady state (30 minutes warm-up time) at 25°C ambient.
Brightness control
Gamma correction and control
Color temperature control
Color space control
Calibration processing
Synchronization
P3 (via Martin P3™ PowerPort) or RDM/DMX
Color: Electrostatic powder-coated (custom colors available by special order) (custom colors available on project basis)
Base: Cast aluminum
Protection rating: IP66
Impact resistance: IK08Corrosion resistance: C5-M (very high corrosivity / marine, ISO 12944)
Vibration resistance: 1.0g, Sinusoidal (IEC 60068-2-6)
0,7g RMS Random (IEC 60068-2-64)
RoHS compliant
Mounting points: Direct surface mount, optional mounting plate or optional mounting profile
Orientation: Any
Power and data input: 6-pin custom (BBD) IP66-rated
Power and data thru: 6-pin custom (BBD) IP66-rated
Hot-pluggable
Nominal input voltage: 48 VDC +/- 4%
Power supply options: Martin P3™ PowerPort 1500, P3™ PowerPort 1000 IP, Martin™ IP66 PSU or generic 48 VDC PSU
Typical total power consumption, calibrated mode: 5 W at full intensity, full white
Typical total power consumption, uncalibrated mode: 7 W at full intensity, full white
Surge protection: 4 KV
Cooling: Convection
Maximum ambient temperature (Ta max.): 55° C (131° F)
Minimum ambient temperature (Ta min.): -20° C (-4° F)
Total heat dissipation (calculated, +/- 10%): 20 BTU/hr.
RoHS: Compliant
REACH: Compliant
WEEE: Compliant
Proposition 65: Compliant
EU safety: EN 60950-1, EN 60950-22
EU EMC: EN 55024, EN 55032 (Class A), EN 61000-3-2, EN 61000-3-3
US safety: UL 60950-1, UL 60950-22US EMC: FCC Part 15 Class A
Canadian safety: CSA C22.2 No. 60950-1, No. 60950-22
Canadian EMC: ICES-003 Class A
Australia/NZ: RCM
