Product Description
Martin Lighting ELP CL IP Full Color LED Ellipsoidal IP65 Rated (Body Only)
Overview
Martin ELP LED ellipsoidal fixtures deliver the luminance, brightness and vivid color rendering that have been synonymous with the Martin name for more than 30 years. Martin ELP CL IP offers the same rich saturated colors and class leading output as the original Martin ELP CL but expands its versatility into temporary outdoor applications through IP65 compliance for moisture resistance and complete dust protection, along with C3 corrosion resistance. ELP’s ergonomic Danish engineering offers advances in lighting functionality that include the highly efficient gear-based Fine Focus—an industry first; and Fast Focus which allows focusing of the fixture without data flowing to it. ELP also offers 16-bit dimming with 4 selectable curves and 26 color presets that match industry-standard color filters. ELP CL IP is available in black and white housing options and can be configured with one of four Martin static lens tubes in 19, 26, 36 and 50-degree beam angles, or a choice of two Martin Zoom lenses with choice of 15–30-degree and 25–50-degree range. ELP also offers flexibility in lighting design and inventory management through compatibility with third-party lens tubes along with a wide range of accessories including gel frames and gobos. Superior output, optics and color rendering, combined with robust protection from the elements, unparalleled ease-of-use and convenience, make Martin ELP the leading LED ellipsoidal fixture in its class.
Please note that a lens tube is not included
Martin recommends using official Martin-branded ELP accessories for the highest possible performance. While we strive to ensure compatibility with third-party accessories, we cannot guarantee optimal performance and recommend that the user makes an evaluation of such an accessory before purchasing.
Advanced Martin Optics Meet Cutting-Edge LED Technology
The ELP is designed to maximize efficiency and deliver a flat field of illumination for smoother blending and mixing between fixtures. Halation color correction removes atypical blue and brown halos when using Martin lens tubes. The ELP CL IP fixture offers an impressive 6,900 lumens and a CRI of 85 in High Output mode, and 5,900 lumens and 90 CRI in High Quality mode, with a color temperature of 6,000K (open white), and provides flicker-free operation for consistent light output on and off camera.
Classic Style With a Focus on Functionality
ELP CL IP takes a classic light fixture to new performance levels with a suite of innovative features. Our gear-based Fine Focus adjustment—an industry first—lets you lock focus exactly where you want it, instantly. There’s no refocusing, no drifting and no slipping. Our innovative Fast Focus feature brings the fixture to full output without data running to the fixture.
Rugged enclosures are IP65 rated for water resistance and complete protection against dust and other particulates.

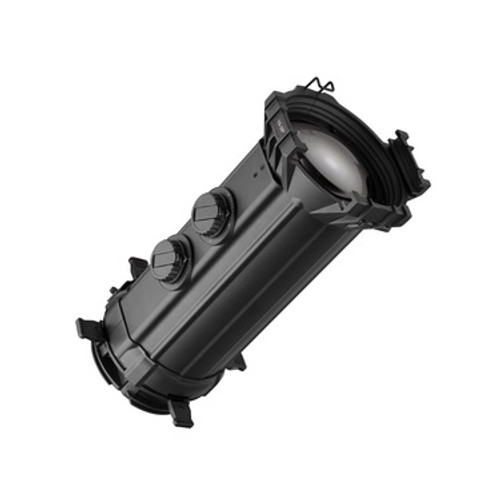

Expand Versatility With ELP Zoom Lenses
In addition to a choice of four Martin static lens tubes in 19, 26, 36 and 50-degree beam angles you can expand the versatility and range of ELP with Zoom Lenses in 15–30-degree and 25–50-degree ranges. The 6 lens optical design delivers unrivaled optical performance, providing the ultrabright output, unmatched flat projection and crisp focus of a static lens, with the speed and flexibility of a zoom lens.
Invest in the Future, With a Minimal Financial Investment
It’s never been easier to transition your inventory to LED ellipsoids: The ELP line fits common lens tubes and accessories, which means you can save money by using your existing gel frames, gobo holders and rotators and lens tubes.
Features
- Legendary Martin quality in LED ellipsoidal light fixtures
- Advanced optics engineered in Denmark
- RGBAL Luxeon Rebel LED engine delivers vibrant, saturated colors
- Class-leading output of 6,900 lumens (in High Output mode)
- Superior CRI rating of 90 (in high quality mode)
- Fast focus feature for data free focusing
- Revolutionary Fine Focus gear-driven focus-adjustment knob locks in placement the first time.
- IP65 rated for water resistance and complete protection against dust and other particulates
- 26 color presets match industry-standard filters
- 16-bit dimming with 4 selectable dimming curves
- Compatible with universal accessories such as gel frames and gobo holders and rotators
- Options include 4 static lens tubes and 2 zoom lenses with compatibility for 3rd party accessories
- Halation color correction removes atypical blue and brown halos when using Martin lens tubes.
- Flicker-free operation
- 4-blade manual framing shutters
- Center of gravity at yoke for ergonomic use
- Regulated cooling for ultra-quiet operation
- 5-pin DMX/RDM and Neutrik True1 In/Thru connectivity
Specifications
Light engine luminous output: 20,000 lumens
High Output Mode
Fixture luminous output: 6,900 lumens
CRI (Color Rendering Index): >85
CQS (Color Quality Scale): >90
TM-30 Rf (IES TM-30-15 Fidelity Index): >84
TM-30 Rg (IES TM-30-15 Gamut Index): >111
TLCI (Television Lighting Consistency Index): >85CCT: 5500 K (+/- 250 K)
High Quality Mode
Fixture luminous output: 5,900 lumens
CRI (Color Rendering Index): >90
CQS (Color Quality Scale): >87
TM-30 Rf (IES TM-30-15 Fidelity Index): >84
TM-30 Rg (IES TM-30-15 Gamut Index): >106
TLCI (Television Lighting Consistency Index): >87
CCT: 6000 K (+/- 250 K)
* All Photometric Data measured in steady state (30 minutes warm-up time) at 25°C ambient.
*Gobo holder not included.
AC power: 100-240 V AC nominal, 50/60 Hz
Power supply unit: Auto-ranging electronic switch mode
Typical half-cycle RMS inrush current at 230 V, 50 Hz: 18.0 A
Power Factor: 0.99 @ 110 V , 0.96 @ 208 V , 0.95 @ 230 V / 240 V
Typical current draw: 2.4 A @ 110 V , 1.3 A @ 208 V , 1.3 A @ 230 V , 1.1 A @ 240 V *
Power Consumption
Typical: 259 W *
Idle: 5 W *
* Measurements made at nominal voltage. Allow for a deviation of +/- 10%.
Typical: full output white, no effects moving, regulated fan speed.
Idle: no output, no effects moving, regulated fan speed.
LWR = Lumen-to-Weight Ratio
