Mackie DLM12-U 2000W 12" Powered Loudspeaker
Overview

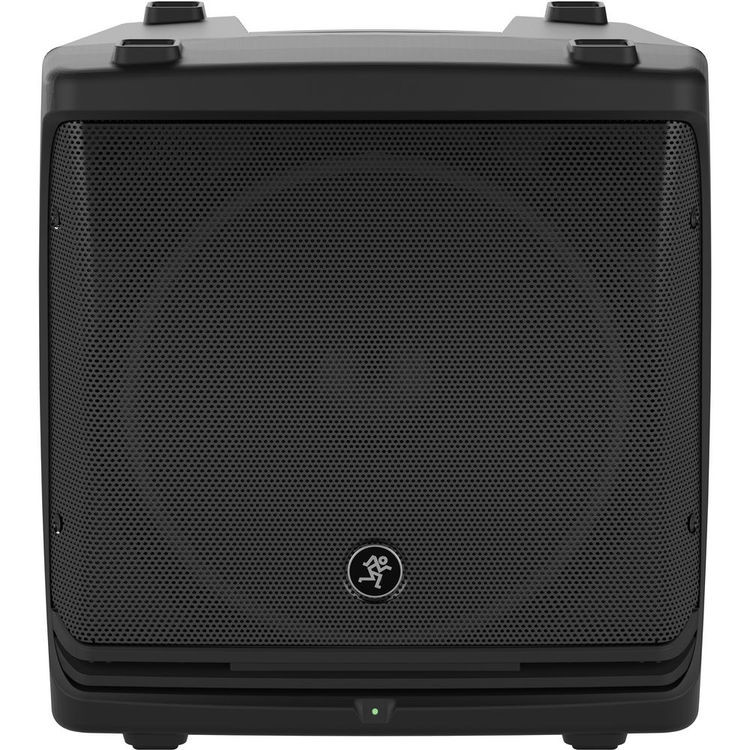

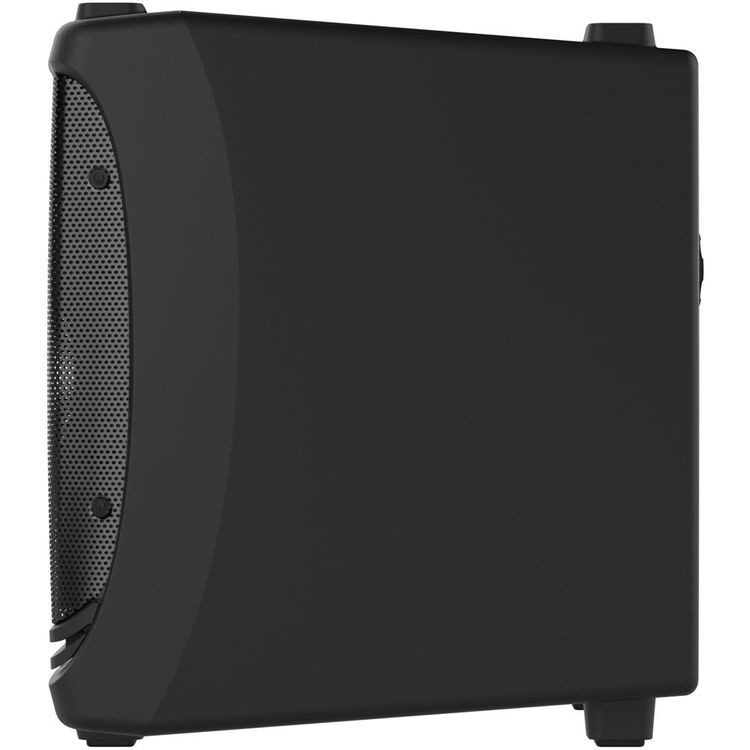

The Mackie DLM12 Full-Range 12" Powered Loudspeaker delivers 1,000 watts of program power and 2,000 watts of peak power in a compact, portable design. It features TruSource driver technology, incorporating a 12" low-frequency driver and a 1.75" compression driver into a common-magnet design. The TruSource DSP delivers clarity, consistent dispersion and high fidelity sound.
The DLM12 features an integrated DL2 digital mixer, a 2-channel mixer with a versatile connection options. It also includes 3-band EQ, 16 effects presets, feedback destroyer, 6 speaker modes, and Smart Protect technology.
The DLM12 can be pole or wall mounted. An integrated kickstand allows use as a wedge-style monitor. M10 mounting points allow it to be used in fly installs as well.

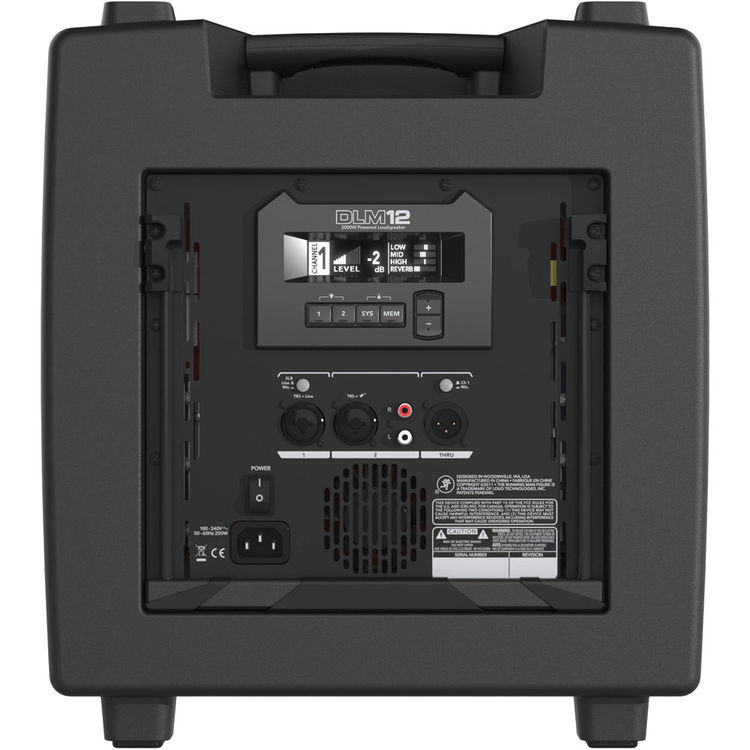

DL2 Integrated Digital Mixer
System Control Audio Tools
- Multi-band feedback destroyer
- Six speaker modes let you select the right voicing for your application
- Alignment delay up to 300mS for delay stack, balcony, etc
- Three memory locations for instant venue setting recall
- Smart Protect DSP dynamically protects the amplifiers and drivers
Features
- Class D 1,000W RMS Powered Speaker
- 2,000W Peak Power
- Generates up to 128dB SPL
- Integrated DL2 Digital Mixer
- Two Flexible Input Channels
- DSP Effects, EQ and Audio Tools
- Common-Magnet Design
- Unpowered Audio Thru Output
- Mounting Options
Includes
- Mackie DLM12 Full-Range 12" Powered Loudspeaker
- Limited 3-Year Warranty for Electronics
- Limited 2-Year for Drivers
Specifications
| Configuration | |
| Total Output Power | |
| Amplifier Power Rating | |
| Amplifier Class |
| LF Driver | |
| HF Driver |
| Frequency Range/Response | |
| Maximum SPL | |
| Coverage Angle |
| Crossover Frequency | |
| EQ & Filters | |
| Alignment Delay | |
| Digital Signal Processing |
| Audio I/O | |
| Network I/O | |
| USB I/O | |
| Wireless | |
| Mobile App Compatible |
| AC Input Power | |
| AC Power I/O | |
| Power Consumption |
| Color | |
| Mounting | |
| Handles | |
| Construction Material | |
| Environmental Resistance | |
| Dimensions | |
| Weight |
