    • Mackie 1642VLZ4-U 16-Channel Compact Analog Mixer

    $799.99
    SKU:
    1642VLZ4-U
    Availability:
    Typically ships in 3-5 business days.
    Shipping:
    Calculated at Checkout

    Out of stock

    Product Description

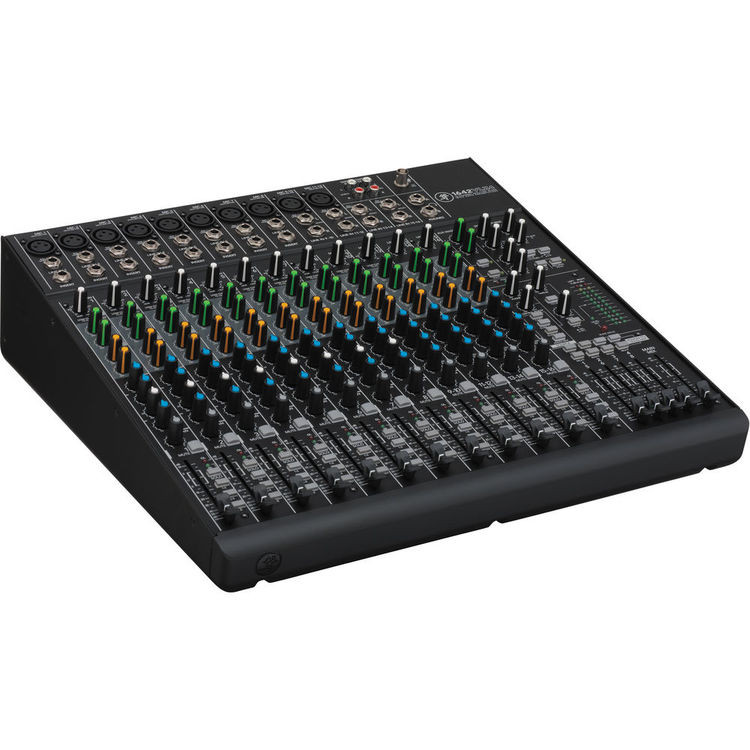

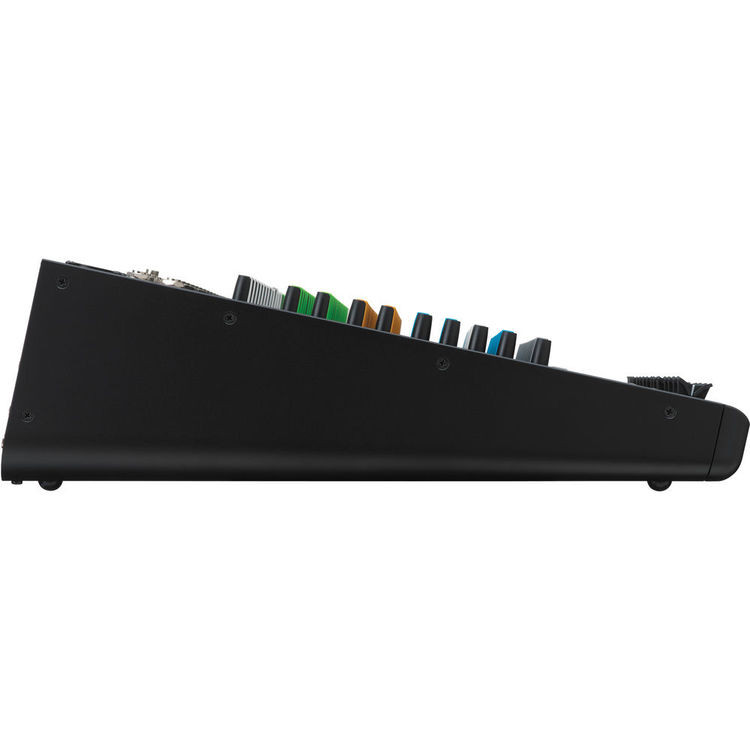

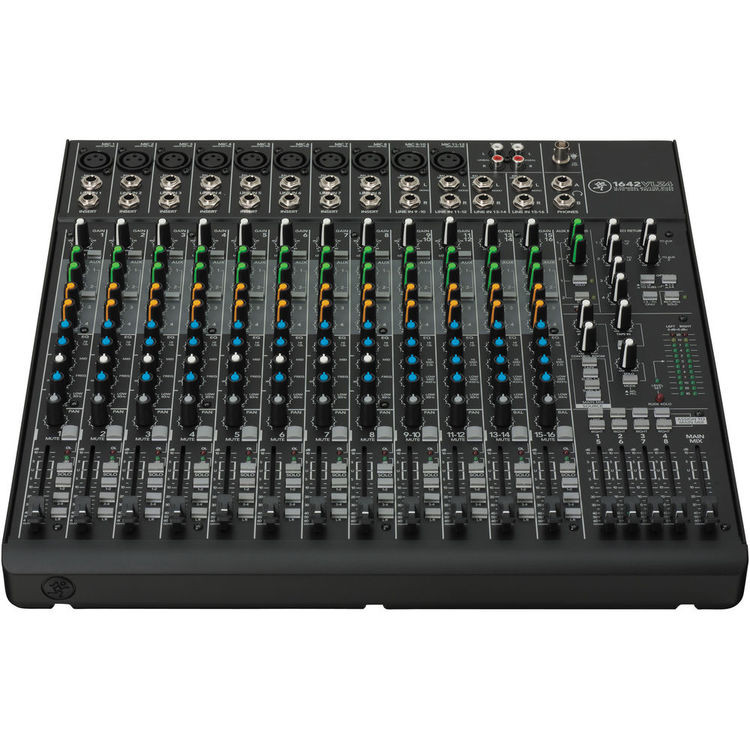

    Mackie 1642VLZ4-U 16-Channel Compact Analog Mixer

    Overview

    The Mackie 1642VLZ4 16-Channel 4-Bus Compact Mixer delivers the proven performance of Onyx preamps in a compact 4-bus mixer design, suitable for bands, clubs, and more. From every input to every output, the mixer is designed to provide the highest headroom and lowest noise possible for maximum signal integrity.

    The mixer is built-like-a-tank with a rugged solid-steel chassis and high-contrast controls for tactile control. With features like an expanded return section for no-hassle system integration and a dedicated control room section, the 1642VLZ4 16-Channel 4-Bus Compact Mixer is the go-to mixer choice for any application that demands flexibility and professional performance.

    Features

    • For Sound Reinforcement Applications
    • 10x Onyx Preamps
    • 3-Band EQ
    • LED Meter
    • 48V Phantom Power
    • Low Noise, High Headroom
    • Solid Steel Chassis
    • Multi-Voltage Power Supply

    Includes

    • Mackie 1642VLZ4 16-Channel 4-Bus Compact Mixer
    • Power Supply

    Specifications

    Mixer
    Number of Analog Input Channels
    16 (8 Mono / 4 Stereo)
    Number of Mic Preamps
    10
    Analog Output Channels
    2x Stereo Master Output
    1x Mono Master Output
    1x Stereo Control Room/Monitor Output
    4x Stereo Bus/Subgroup Output
    4x Mono Aux Send Output
    8x Mono Direct Output
    1x Stereo Tape/Record Output
    2x Stereo Headphone Output
    Mix Routing
    Stereo Main Mix / Aux Bus/Subgroup
    Faders & Level Adjustment
    12x 2.4" / 60 mm Channel Fader
    1x Master Fader
    Meters
    Main Meter:
    2x 12-Segment LED
    Channel Meter:
    2x 2-Segment LED
    Signal Processing
    Gain/Trim Range
    60 dB
    Dynamic Processing
    No
    EQ
    3-Band EQ (Mono Channels)
    4-Band EQ (Stereo Channels)
    EQ Parameters
    Mono Channels:
    High: ±15 dB at 12 kHz (Shelving)
    Mid: ±15 dB at 100 Hz to 8 kHz (Semi-Parametric)
    Low: ±15 dB at 80 Hz (Shelving)
    Stereo Channels:
    High: ±15 dB at 12 kHz (Shelving)
    Hi-Mid: ±15 dB at 2.5 kHz (Notch/Peak)
    Lo-Mid: ±15 dB at 400 Hz (Notch/Peak)
    Low: ±15 dB at 80 Hz (Shelving)
    Graphic EQ
    No
    Filters
    Low-Pass: 75 Hz, 18 dB/Octave
    Solo/Mute
    No
    Built-In Effects
    No
    Performance
    Frequency Response
    Mic Input to Main Output:
    20 Hz to 50 kHz +0/-1 dB (Unity Gain)
    10 Hz to 100 kHz +0/-3 dB (Unity Gain)
    Max Input Level
    Mic Input:
    +22 dBu
    Line Input:
    +22 dBu
    I/O Impedance
    Mic Input:
    2.5 Kilohms
    Insert Return:
    2.5 Kilohms
    Line Input:
    ≥ 10 Kilohms
    Tape Output:
    1.1 Kilohms
    Main Output:
    120 Ohms
    Noise Floor
    Main Output:
    -86.5 dBu (Master Level at Unity, Channel Levels at -∞, 92 dB SNR, Ref +4 dBu)
    -86 dBu (Master Level at Unity, Channel Levels at Unity)
    THD
    Mic Input to Insert Send:
    < 0.0007% at +35 dB Gain (1 kHz)
    Connectivity
    Analog Inputs
    10x XLR 3-Pin Balanced Mic Input
    8x 1/4" TRS Balanced/Unbalanced Line Input
    8x 1/4" TRS Alt Insert
    2x 1/4" TRS Aux Insert
    8x 1/4" Stereo Line Input (4 Stereo Pairs)
    1x Stereo RCA Coaxial Unbalanced Stereo Aux Input (1 Stereo Pair)
    8x 1/4" TRS Balanced/Unbalanced Stereo Aux Return (4 Stereo Pairs)
    Analog Outputs
    8x 1/4" TRS Balanced/Unbalanced Line Output
    2x XLR 3-Pin Balanced Stereo Main Output
    1x 1/4" TRS Mono Main Output
    4x 1/4" TRS Balanced/Unbalanced Aux Send
    2x 1/4" TRS Balanced/Unbalanced Stereo Control Room Output
    8x 1/4" TRS Balanced/Unbalanced Subgroup Output
    2x 1/4" TRS Balanced/Unbalanced Stereo Main Output
    2x 1/4" TRS Headphone Output
    1x Stereo RCA Coaxial Unbalanced Tape Output (1 Stereo Pair)
    Phantom Power
    +48 V
    Digital I/O
    No
    Wireless
    No
    Power
    AC Input Power
    100 to 120 VAC, 50 / 60 Hz (T 1 A 250 V)
    220 to 240 VAC, 50 / 60 Hz (T .5 A 250 V)
    Power Supply Output
    Included
    Physical
    Rack Mountable
    No
    Rackmount Size
    3 U (with Non-Included Hardware)
    Operating Conditions
    32 to 104°F / 0 to 40°C
    Dimensions
    16.7 x 16.6 x 5.2" / 425 x 421 x 131 mm
    Weight
    18.2 lb / 8.3 kg
