Product Description
Leviton ZSC15-INW Wireless Occupancy Sensor, PIR, Ceiling Mount, 1500SF
Overview
Requires DLDNK LuminaRF Stand Alone Room Controller or LU741 Lumina Gateway to operate. Wireless Sensor, Low Profile, Surface Mount, 1500 sq ft Field of View, 15 Second Transmitter, Color: White
Features
- Zero external power required
- Self-healing wire mesh network has no hard wired backbone and connects all products in the Lumina RF Eco-System together
- Robust and reliable true wireless sensors communicate with all transceivers via radio frequency
- Battery-powered wireless technology eliminates the need to pull additional wire, making installation quick and easy and increasing labor savings with little to no impact to business during conversion
- Walk-test mode
- Easy mounting
- Advanced field-of-view
- Meets Title 24, ASHRAE 90.1 and 2012 IECC energy code requirements
Specifications
- Battery: 7-10 years
- Color: White
- Feature: Wireless
- Grade: Commercial
- Mounting: Ceiling Mount
- Mounting Height (Ft.): 8-12 FT
- Product Line: Wireless
- Sensor Technology: Passive Infrared (PIR)
- Sensor Type: Occupancy
Performance Specifications
- Coverage (Sq.Ft.): 1500.0
- Frequency Range: 75 FT
- Pattern: 360°

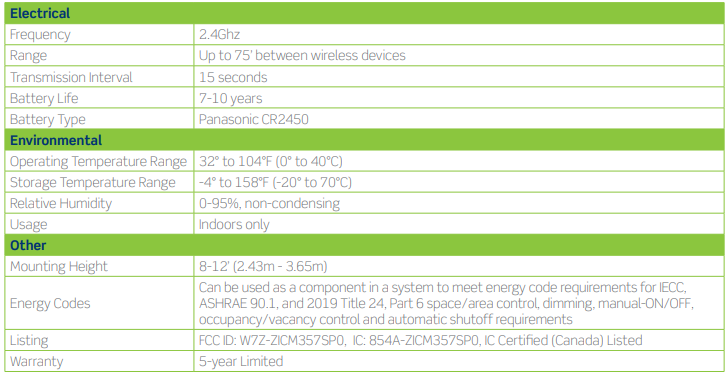

Electrical Specifications
- Frequency: 2.4 Ghz
Standards and Certifications
- Listings: FCC ID: W7Z-ZICM357SP0, IC: 854A-ZICM357SP0, IC Certified (Canada) Listed. Can be used as a component in a system to meet energy code requirements for IECC, ASHRAE 90.1, and Title 24
Mechanical Specifications
- Mounting Type: Ceiling Mount
- Size: Width 4.20" (106.68mm), 1.57" Depth (39.87mm)
Environmental Specifications
- Relative Humidity: 0% to 95% non-condensing
- Storage Temperature Range: -4° to 158°F (-20° to 70°C)
Type
- Product Type: Wireless Occupancy Sensor
Warranty
- Warranty: 5-Year Limited
