Product Description

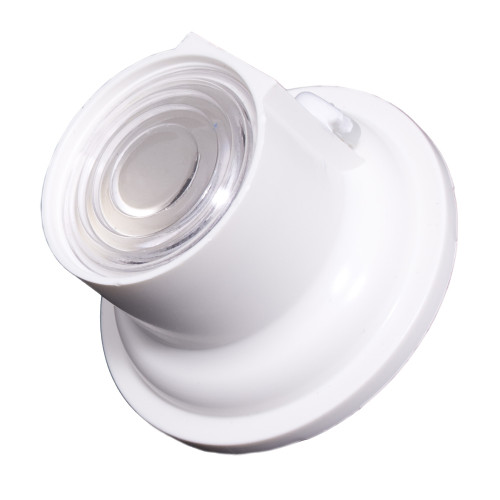

Leviton PCIND-SV Indoor Side View Photocell
Overview
Photocell - Indoor 0-30 Foot Candles (MFG Range 0, 3, 30, 300, 600FC), Title 24 Compliant, ASHRAE 90.1 Compliant, Title 24 Compliant, ASHRAE 90.1 Compliant
Leviton’s photocell sensors precisely monitor either task or ambient light levels. As part of a Leviton lighting and energy solution, photocells work with other components in the system to automatically adjust light levels to a userdefined level. Photocells are most suitable for installation in rooms with windows and open spaces receiving substantial ambient light. Photocells must be hardwired to a compatible Leviton lighting control system. The photocell measures ambient light in a specific area and sends this data to a dimmer or relay that, in turn, adjusts fixtures to a constant lighting level as measured in that specific area. Daylight harvesting is achieved as lights in a room (with windows or significant, artificial ambient light) automatically brighten or dim depending on how much light the photocell detects.
Features
- Indoor photocells designed with a flat Fresnel lens looks downward in a 60° cone of reference to measure actual light on the work surface and reduce the influence of stray light striking the photocell from nearby windows or incidental side lighting
- For applications where ceiling mounting is required yet the view should be of the lighting entering the space through a window; or, for installation to the wall of skylights where the view should be up into the skylight. Default setting = 0-30FC sensing range; can be field configured with a jumper for a 3FC, 30FC, 300FC, or 600FC max sensing range
Specifications
- Product Line: Photocell
- Product Type: Indoor Photocell
- Voltage Type: Low Voltage
Other Details
Leviton warrants to the original consumer purchaser and not for the benefit of anyone else that this product at the time
of its sale by Leviton is free of defects in materials and workmanship under normal and proper use for two years from the
purchase date. Leviton’s only obligation is to correct such defects by repair or replacement, at its option. For details and
to submit a concern, please visit www.leviton.com or call 1-800-824-3005. This warranty excludes and there is disclaimed
liability for labor for removal of this product or reinstallation. This warranty is void if this product is installed improperly or in an
improper environment, overloaded, misused, opened, abused, or altered in any manner, or is not used under normal operating
conditions or not in accordance with any labels or instructions. There are no other or implied warranties of any kind, including
merchantability and fitness for a particular purpose, but if any implied warranty is required by the applicable jurisdiction, the
duration of any such implied warranty, including merchantability and fitness for a particular purpose, is limited to two years.
Leviton is not liable for incidental, indirect, special, or consequential damages, including without limitation, damage to, or loss
of use of, any equipment, lost sales or profits or delay or failure to perform this warranty obligation. The remedies provided
herein are the exclusive remedies under this warranty, whether based on contract, tort or otherwise.
Prior to returning the product, contact Leviton’s Technical Support Department at 1-800-722-2082. Technical Support
will assist in diagnosing the reported problem and if product return is deemed necessary, Technical Support will provide
a Returned Material Authorization (RMA) number. Product must be returned prepaid, with proof of purchase date, and a
description of the problem to Leviton Manufacturing Co., Inc., Attn: Quality Assurance Department, 2222 - 222nd Street
SE, Bothell, WA 98021-4442. The RMA number must be clearly marked on the shipment. This warranty excludes and there
is disclaimed liability for labor for removal of this product or reinstallation. This warranty is void if this product is installed
incorrectly or in an improper environment, overloaded, misused, opened, abused, or altered in any manner, or not used under
normal operating conditions or not in accordance with accompanying or relevant instructions, packaging or labels. There
are no other implied warranties of any kind, including merchantability and fitness for a particular purpose. If any implied
warranty is required by the applicable jurisdiction, the duration of any such implied warranty, including merchantability and
fitness for a particular purpose, is limited to the warranty period. LEVITON IS NOT LIABLE FOR INCIDENTAL, INDIRECT, SPECIAL,
OR CONSEQUENTIAL DAMAGES, INCLUDING WITHOUT LIMITATION, DAMAGE TO, OR LOSS OF USE OF, ANY EQUIPMENT, LOST
SALES OR PROFITS OR DELAY OR FAILURE TO PERFORM THIS WARRANTY OBLIGATION. The remedies provided herein are the
exclusive remedies under this warranty, whether based on contract, tort or otherwise. Warranty Terms and Conditions
may vary depending on the point of purchase. Warranty procedures can vary by country and are subject to local laws and
requirements. Additional documentation may apply in order to obtain repairs or replacements.
