Product Description

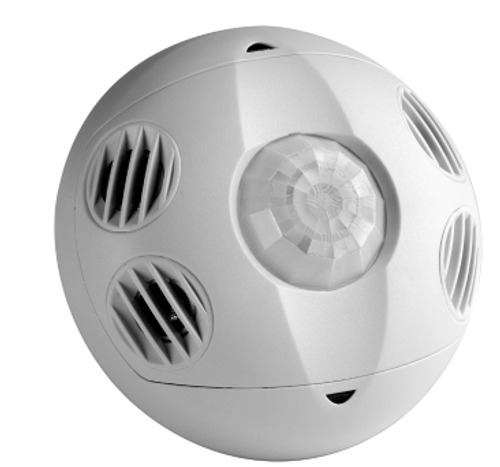

Leviton OSC20-MAW Occupancy Sensor, Multi-Technology (PIR/US), Ceiling Mount, 2000SF, Made in USA with Globally Sourced Components, White
Overview
Occupancy Sensor low voltage lighting control, Ceiling Mounted, 2000 sq ft, Coverage Multi-Technology (PIR & U/S). High Density Fresnel Lens 24VDC, Class II, C-UL-US Listed/NOM Required, FCC/ CA Title 24 Compliant. Made in USA with globally sourced components. Color: White
Features
- Small Size: Installed sensor appears almost invisible.
- Fast Simple Installation: Easy ceiling mount, three wire connection (low voltage) and twist-lock sensor attachment.
- Accurate, Consistant Switching: Occupant complaints are eliminated; lights are on when room is occupied, off when empty. annoying false-offs are minimized and lights on at night is eliminated.
- Self-Adapting: An internal microprocessor continually analyzes, evaluates and adjusts settings. Performance is kept at a maximum and user complaints are eliminated.
- Maximum Reliability, Low Cost: All digital circuitry uses a minimum of components.
- Non-Volatile Memory: Learned and adjusted settings saved in protected memory. Power outages will not cause status loss.
- Ambient Light Recognition: The photocell prevents lights from turning on when room is adequately lit by natural light.
- Excellent Warranty: 5-Year Limited warranty.
- Typical Applications: Cafeteria, Computer Room, Office w/Cubicles, Office Open, File Room, Classroom, Lounge, All Restroom types, Open Area, or Gymnasium
Specifications
- Application: Cafeterias, Classrooms, Computer rooms, Conference rooms, Day care centers, Filing rooms, Workspaces, Open warehouses, Offices with cubicles, Open areas, Restrooms, Stairwells, Storage rooms, Executive, Open and private offices
- Color: White
- Grade: Commercial
- Mounting: Ceiling Mount
- Mounting Height (Ft.): 8-12 FT
- Product Line: OSC20
- Sensor Technology: Multi-Technology: Passive Infrared (PIR)/Ultrasonic (US)
- Sensor Type: Occupancy
- Time Delay: 30s-30m
Performance Specifications
- Coverage (Sq.Ft.): 2000
- Pattern: 360°
- Title 24 Compliant: Yes
Electrical Specifications
- Frequency: 32kHz
- Output Power: 24 VDC active high logic control signal with short circuit protection
- Power Consumption: 30mA
- Voltage: 24 VDC
Standards and Certifications
- Listings: cUL/US Certified, can be used to comply with Title 24, Part 6 occupancy sensing requirements
Mechanical Specifications
- Mounting Type: Ceiling Mount
- Size: Width 4.20" (106.68mm), Depth 1.57" (39.90mm)
Environmental Specifications
- Operating Temperature: 0°C to 40°C
- Relative Humidity: 0% to 95% non-condensing
Type
- Product Type: Occupancy Sensor
Warranty
- Warranty: 5-Year Limited
