Product Description

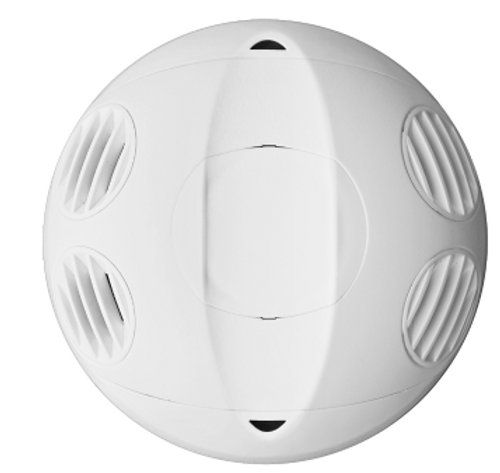

Leviton OSC10-M0W Occupancy Sensor Ceiling - 360°-1000sf - Multi-tech - White
Occupancy Sensor lighting control, Ceiling Mounted, Multi-technology, 24VDC, 35mA power consumption, 1000 sq ft, 360 degree (major motion: PIR: 40' diameter; U/S: 46'Lx23'W, minor motion: U/S: 34'Lx17'W), red LED=PIR, green LED-U/S, auto adapting, walk-through, time delay 30s-30m, test mode (6s time delay for 15m with auto exit), connect gray wire for photocell ambient light hold-off, 360 degree harmonic wheel (rotatable), mounting height 8'-10', cUL/NOM/ANCE listed, CEC Title 24 compliant Color: off-white.
The most advanced sensor available. Combines multi-technology with all-digital architecture. Eliminates false triggering. The result is a trouble-free, “install and forget” solution for lighting control.
FEATURES
- Small Size: Installed sensor appears almost invisible.
- Fast Simple Installation: Easy ceiling mount, three wire connection (low voltage) and twist-lock sensor attachment.
- Accurate, Consistent Switching: Occupant complaints are eliminated; lights are on when room is occupied, off when empty. annoying false-offs are minimized and lights on at night is eliminated.
- Self-Adapting: An internal microprocessor continually analyzes, evaluates and adjusts settings. Performance is kept at a maximum and user complaints are eliminated.
- Maximum Reliability, Low Cost: All digital circuitry uses a minimum of components.
- Non-Volatile Memory: Learned and adjusted settings saved in protected memory. Power outages will not cause status loss.
- Ambient Light Recognition: The photocell prevents lights from turning on when room is adequately lit by natural light.
- Excellent Warranty: 5-Year Limited warranty.
- Typical Applications: Cafeteria, Computer Room, Conference Rooms, Office Private, Office Executive, Office w/Cubicles, Office Open, File Room, Classroom, Lounge, All Restroom types, Open Area, Work Space General, Workout Facility or Gymnasium
SPECS
Product Features
- Adjustment: Self-Adjusting
- Code Compliance: California Title 24
- Color: White
- Coverage (Sq.Ft.): 1000
- Current Consumption: 35mA
- Housing Material: High-Impact, Injection Moulded Plastic
- Input Voltage: 24VDC
- LED Disable: LEDS Enable/LEDS Disable
- Load Rating: Uses Power Pack
- Manual Time Adjustment: 30s-30m, 6s Test Mode
- Pattern Degrees: 360
- Photo Cell: Ambient Override ON
- Photo Cell Adjustment: 20 to 3000 Lux
- Photocell Factory Preset: 3000 Lux (disable photocell)
- Product Line: OSC10
- Sensitivity Adjustment: 0 to 100 Pct
- Sensitivity Factory Preset: Ultrasonic 50 Pct Infrared 75 Pct
- Sensor Technology: PIR/Ultrasonic 40kHz
- Sensor Type: Ceiling Mount
- Single/Multi-Tech Mode: Switchable ON/OFF PIR/ULTRA
- Standards and Certifications: CUL/US Cert
- Technology: Multi-Technology PIR/Ultrasonic
- Timer Factory Preset: 10 Minutes
- Warranty: 5-Year Limited
Standards and Certifications
- ANCE: Compliant
- ASHRAE: Standard 90.1 Compliant
- CUL/US: Listed 9034
- Code Compliance: California Title 24
- Current Consumption: 35mA
- FCC: Compliant
- Input Voltage: 24VDC
- Load Rating: Uses Power Pack
- NOM: 057
- Output Voltage: 24VDC w/Short Circuit Protection
- Title 24 Compliant: Yes
Electrical Specifications
- Operating Humidity: 0 Pct to 95 Pct Relative, Non-Condensing
- Operating Temperature: 32F to 104F 0C to 40C
- Voltage: 24 VDC
Material Specifications
- Color: White
- Housing Material: High-Impact, Injection Moulded Plastic
- LED Indicator: Red Infrared Motion & Green Ultrasonic Motion
- PIR Lens Type: Extended Range
- Qty of Transducer Pairs: 2
- Sensor Weight: 5oz/142g
- Transducer Size: 16 mm Diameter
- Wire Leads: Color Coded 6 Inch
Mechanical Specifications
- Coverage (Sq.Ft.): 1000
- Major Motion Area: 46X23 Feet
- Minor Motion Area: 34X17 Feet
- Pattern Degrees: 360
- Photo Cell: Ambient Override ON
- Sensor Technology: PIR/Ultrasonic 40kHz
