Product Description
Leviton 2 Port NPC with 2-5pin Male XLRs. Includes support for use with 8700, NPC & other Colornet Devices. Powered over Ethernet (POE) or external +12-24Vdc supply.
2 DMX Port Network Protocol Converter with (2) Male 5 pin XLR receptacles
Model #NPC2D-0MM
The 2Port Network Protocol converter, NPC2D, offers exceptionally cost-effective DMX-over-Ethernet connectivity in a package well suited for integration with permanently installed stage, studio, and architectural lighting systems. The extensive protocol support enables input and output for the majority of today’s entertainment, as well as architectural, lighting control systems, show controllers, and visualizers.
Product Line: NPC2D
- Ports configurable as Inputs or Outputs
- Protocols supported: (ACN, 8700/HydraNet, SandNet, ColorNet II, Pathport)
- Power over Ethernet - IEEE 802.3af
- Fits in deep 2-gang device back box
- Specialty back-boxes available for Surface, Pipe, C-Clamp mounting
- Pipe/Thru other port for protocol conversion
- Standard NEMA 2-gang wall-plate for installed systems
- Self-healing ESD and transient protection
- LEDs indicate Ethernet and DMX port activity
- Dedicated area for permanent labeling
- Supports both 10BaseT and 100BaseT
NPC2D The 2Port Network Protocol converter, NPC2D, offers exceptionally cost-effective DMX-over-Ethernet connectivity in a package well suited for integration with permanently installed stage, studio, and architectural lighting systems. The extensive protocol support enables input and output for the majority of today’s entertainment, as well as architectural, lighting control systems, show controllers, and visualizers. The two DMX ports are bi-directional for maximum flexibility so that any port, independent of the XLR connector gender, can be configured as an input or output. NPC2D supports 10BaseT and 100BaseT for unparalleled throughput and easy integration with any network topology. Auto MDI/MDI-X eliminates the need to worry about straight vs. cross-over cabling. Power over Ethernet provides effortless power via readily available PoE switches or mid-span power injectors
APPLICATIONS • DMX distribution over Ethernet • Theaters • Cafetoriums • Places of assembly
FEATURES • Ports configurable as Inputs or Outputs • Protocols supported: • ACN • 8700/HydraNet • SandNet • ColorNet II • Pathport • Power over Ethernet - IEEE 802.3af • Fits in deep 2-gang device back box • Specialty back-boxes available for Surface, Pipe, C-Clamp mounting • Pipe/Thru other port for protocol conversion • Standard NEMA 2-gang wall-plate for installed systems • Self-healing ESD and transient protection • Available with male or female XLRs or combination • LEDs indicate Ethernet and DMX port activity • Dedicated area for permanent labeling • Supports both 10BaseT and 100BaseT
Supports 8700 console, Piccolo, Piccolo Scan, NPC, and other colornet devices • RDM ready with user configurable EOL and RDM termination • Free software for configuration, testing, and management • Auto MDI-MDI-X for straight or cross-over CAT5/6 cabling • Dimensions: 4-1/2” x 4-1/2” x 1-5/8”
ORDERING INFORMATION
- NPC2D-FF 2 DMX Port Network Protocol Converter with (2) Female 5 pin XLR receptacles
- NPC2D-MM 2 DMX Port Network Protocol Converter with (2) Male 5 pin XLR receptacles

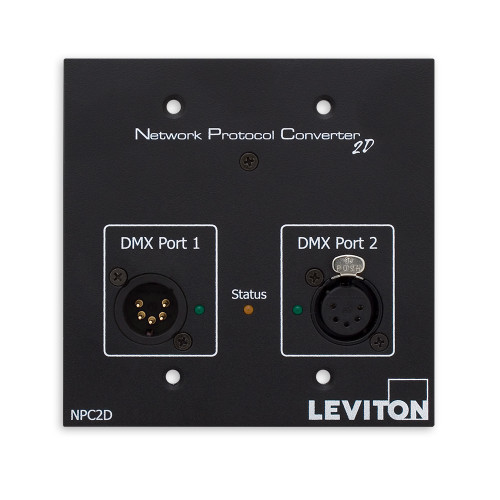

- NPC2D-MF 2 DMX Port Network Protocol Converter with (1) Female and (1) Male 5 pin XLR receptacle
