Product Description
Leviton Lumacan to LumaCan Gateway Manual.
FREE MANUAL. FREE DOWNLOAD.

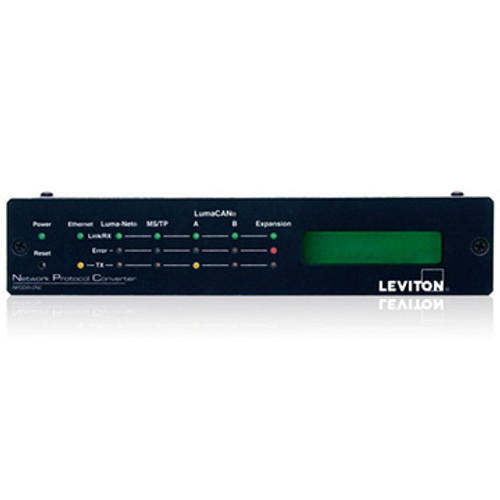

The Luma-Net® to LumaCANTM Gateway offers convenient network conversion between Luma-Net® and LumaCANTM protocols to establish data exchange between network protocols. Environmental: Operating temperature range, 32°F to 104°F (0°C to 40°C), Relative humidity, 5% to 95%, non-condensing, for indoor use only. Electrical: Power requirements, 12-24VDC, 0.6A can be powered via the LumaCANTM bus, barrel connector, or hard wire terminals. Preferred method is hard wire terminals. NOTE: In North America listed/certified Class 2 power supply required. Outside North America a power supply compliant with IEC 60950-1 SELV/LPS is required. Certifications: IEC 61000-4-2, RoHS compliant, FCC 1.1 FEATURES 1.2 TRANSLATION FEATURES • Protocol conversion from Luma-Net® to LumaCANTM and LumaCANTM to Luma-Net® • 250 nodes per subnet and 254 subnets • LCD front panel • Activity LED’s • Update software via FTP • Real time clock for time stamping of log file entries • Factory default button to restore factory settings • Rack ears included for mounting in a standard EIA 19" rack • Luma-Net® Channel levels LumaCANTM channels • LumaCANTM channels Luma-Net® channels • Luma-Net® "Daylighting On" (fade time of 254) LumaCANTM daylighting on • Time master broadcast exchange • LumaCANTM & Luma-Net® read back • "Split-Out" or combine channel fade to messages • Throttling - minimum time in-between messages 1.3 SPECIFICATIONS NOTE: The MS/TP, LumaCANTM B and Expansion LED indicators are for future use. 1.4 FRONT PANEL INTRODUCTION Page 3 Power Reset Network Protocol Converter NP00G Ethernet Luma-Net® MS/TP A B LumaCAN® Expansion Error Link/RX Error Indicators TX Reset Power Indicator Protocol Activity Indicators LCD Screen
