Product Description

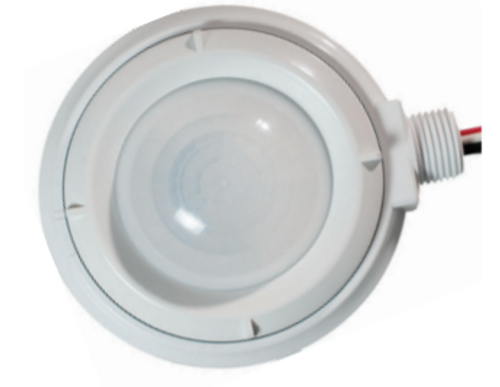

Leviton HBE11-IUB 0-10v Dimming PIR Indoor/Outdoor Wet Location Occupancy Sensor
Dimming PIR Occupancy Sensor lighting control, Fixture Mount, 120/277/347VAC, IP65 Rating for Low-Temp, Water Tight, Indoor/Outdoor, Adjustable time delay between 1m-15m, Downward and upward facing daylight sensor (selectable via dipswitch), Dimming Presets Unoccupied: 70%, 60%, 50% & 20%, UL and cUL Listed. Lens Sold Separately. Color: White.
The 0-10V Dimming Fixture Mount PIR Indoor/Outdoor Wet Location Occupancy Sensor is specifically designed to be mounted directly to an industrial fluorescent fixture or electrical junction box for control of 0-10V dimmable fixtures. The sensor is IP65 rated making it ideal for wash down applications in indoor and outdoor locations.
Features
- Controls 0-10V dimmable ballasts for daylight harvesting applications
- Interchangeable high/low area detection lenses in 360° view or aisle patterns*
- Full OFF timer delay
- 8-second test mode with 1, 5, 10 and 15 minute time outs
- Unoccupied dimming presets: 70%, 60%, 50%, 20%
- IP65 rated
- Meets energy code requirements for ASHRAE 90.1, California Title 24 and IECC, UL and cUL listed
*Lenses must be ordered separately
Specs
- Color: White
- Coverage (Sq.Ft.): 8'-45'
- Product Line: HBE11
- Sensor Type: Fixture Mount
- Technology: Passive Infrared
Standards and Certifications
- Title 24 Compliant: Yes
- Electrical Specifications
- Frequency: 50/60Hz
- Voltage: 120/277/347 VAC
Mechanical Specifications
- Neutral Wire Connection: Required
