Product Description
Leviton DS 12-24E - 12 Channel 2400 Watt/Channel Modular Rack Mount Dimmer/Relay System. NDS12-24E.
WITH EDISON CONNECTOR
12 channel, 2400 Watt/Channel, Modular Rack Mount Dimmer / Relay System, DMX512, Micro-Plex, LUMA-NET, 0-10V Standard, LCD, Soft Patch, Memory Scenes, and 22 Button Keypad. Edison Output, UL/C-UL Listed.
Leviton-NSI DS dimmer systems feature high power capacities in an easy to service compact and modular design. The DS digital dimmer systems combine convenient mobility with a rugged design and high caliber performance for a variety of lighting application demands. Our innovative modular design concept provides easy front panel access for control and dimmer module replacement even while the systems are rack mounted. This friendly feature is especially important for touring groups and also permanently installed systems where complete pack removal is difficult or impossible. The DS digital dimmer systems include a sixteen character 3.430 17.150 17.200 AT PRESET 6 9 F2 FULL 4 7 F1 DIMMER DMX # 5 8 DS 8 Digital Dimming System CLEAR DMX TERM MICRO 3 PLEX ENTER DMX 1 0 C 0 B 0 MICRO 0 A PLEX # 2 OVER TEMP 7 6 8 5 4 2 1 3 UL Listed 1 3 2 1 2 3 3 2 1 3 1 2 1 3 2 2 1 3 2 1 3 1 2 3 1 2 3 1 2 2 1 3 1 2 3 3 2 1 3 2 1 3 2 1 3 1 2 3 17.200 3.430 CO-ORDINATE DS12 INPUT TYPE WITH TERMINATION LABEL INSIDE / / / SHORT CIRCUIT CURRENT RATING: 10,000 RMS SYM. AT 240VAC MAX DS12 INPUT: 80A MAX, 120/208V, 3O, 4WIRE, 50/60HZ OR 125A MAX, 120/240V, 1O, 3WIRE, 50/60HZ DS8 INPUT: 80A MAX, 120/240V, 1O, 3WIRE, 50/60HZ LOAD PER CIRCUIT 120VAC - AMPACITY ON CIRCUIT BREAKER KO12 TYPE 1 ENCLOSURE AC LIGHTING LOADS ONLY NSI CORP., TUALATIN, OR. MADE IN U.S.A. CO-ORDINATE DS12 INPUT TYPE WITH TERMINATION LABEL INSIDE / / / SHORT CIRCUIT CURRENT RATING: 10,000 RMS SYM. AT 240VAC MAX DS12 INPUT: 80A MAX, 120/208V, 3O, 4WIRE, 50/60HZ OR 125A MAX, 120/240V, 1O, 3WIRE, 50/60HZ DS8 INPUT: 80A MAX, 120/240V, 1O, 3WIRE, 50/60HZ CO-ORDINATE DS12 INPUT TYPE WITH TERMINATION LABEL INSIDE / / / SHORT CIRCUIT CURRENT RATING: 10,000 RMS SYM. AT 240VAC MAX DS8 INPUT: 80A MAX, 120/240V, 1O, 3WIRE, 50/60HZ DS12 INPUT: 80A MAX, 120/208V, 3O, 4WIRE, 50/60HZ OR 125A MAX, 120/240V, 1O, 3WIRE, 50/60HZ CO-ORDINATE DS12 INPUT TYPE WITH TERMINATION LABEL INSIDE / / SHORT CIRCUIT CURRENT RATING: 10,000 RMS SYM. AT 240VAC MAX DS8 INPUT: 80A MAX, 120/240V, 1O, 3WIRE, 50/60HZ / DS12 INPUT: 80A MAX, 120/208V, 3O, 4WIRE, 50/60HZ OR 125A MAX, 120/240V, 1O, 3WIRE, 50/60HZ 1 3 5 9 11 7 2 4 LOAD PER CIRCUIT 120VAC - AMPACITY ON CIRCUIT BREAKER 6 NSI CORP., TUALATIN, OR. MADE IN U.S.A. 10 12 TYPE 1 ENCLOSURE AC LIGHTING LOADS ONLY 8 PB12 1 2 3 4 5 6 7 8 LOAD PER CIRCUIT 120VAC - AMPACITY ON CIRCUIT BREAKER SP8 TYPE 1 ENCLOSURE. AC LIGHTING LOADS ONLY NSI CORP., TUALATIN, OR. MADE IN U.S.A. LOAD PER CIRCUIT 120VAC - AMPACITY ON CIRCUIT BREAKER AC LIGHTING LOADS ONLY TYPE 1 ENCLOSURE MADE IN U.S.A. SP12 NSI CORP., TUALATIN, OR. 11 10 12 9 8 7 4 5 6 3 2 1 LISTED C US 2J80 IND. CONT. EQ. LISTED C 2J80 IND. CONT. EQ. US C US LISTED 2J80 IND. CONT. EQ. LISTED US C IND. CONT. EQ. 2J80 UL UL UL L U R R R R DMX OUT CLASS 2 CONTROL DMX IN MPX IN MPX OUT PATENT PENDING DMX OUT CLASS 2 CONTROL DMX IN MPX IN MPX OUT PATENT PENDING DMX OUT CLASS 2 CONTROL DMX IN MPX IN MPX OUT PATENT PENDING PATENT PENDING CLASS 2 CONTROL DMX OUT MPX IN DMX IN MPX OUT LUMANET 0-10 VDC IN LUMANET 0-10 VDC IN LUMANET 0-10 VDC IN LUMANET 0-10 VDC IN 3.430 17.150 17.200 AT PRESET 6 9 F2 FULL 4 7 F1 DIMMER DMX # 5 8 DS 8 Digital Dimming System CLEAR DMX TERM MICRO 3 PLEX ENTER DMX 1 0 C 0 B 0 MICRO 0 A PLEX # 2 OVER TEMP 7 6 8 5 4 2 1 3 UL Listed Modular rack dimmers Modular rack dimmers liquid crystal display and front panel keypad for intuitive access to features like backup presets with fade time, soft patch of DMX and NSI Micro-Plex control signals, O-IOVDC analog input control, and dimmer module temperature monitoring. LED’s on the front panel also provide status to a host of functions like dimmer control level, active power sources, active DMX512 and NSI Micro-Plex control signals, and over temperature warning. A DMX512 termination switch is also provided on the front panel. All of these performance features combined with the highest power density on the market make this dimmer an unbeatable value. Patents pending.
Features
• 20 button function keypad
• Liquid crystal display (backlit 16 character x 2 line)
• 400 programmable time fade presets
• Non-volatile EEPROM preset and softpatch storage
• Valid DMX signal indicator
• Valid NSI Micro-Plex signal indicator
• Line power indicator LED’s
• Individual dimmer load LED indicators
• Temperature status LED
• Front panel accessible DMX512 termination switch
• 120V input power
• 15V RMS preheat range
• Adjustable level test switches can be set to bump or latch action
• Over voltage and over temperature protection
Dimming
• Individual dimmer test/lamp focus buttons
• 10,000 AIC branch rated fully magnetic circuit breakers
• Rugged dual SCR dimmer design
• Automatic line regulation/compensation for power fluctuations
• 8 channel/single phase power operation
• 12 channel/single or three phase power operation
• Available in Edison/U-ground, stage pin or hardwired versions
• 1 output per dimmer
• Available in 1.2kW and 2.4kW versions
• Programmable maximum and minimum levels for each dimmer
• Pre-programmed dimming curve for Advance Mark X™ fluorescent dimming ballast
• LCD dimmer feedback including current temperature, control level and type of control signal
Mechanical
• Unique modular dimmer design
• Unique modular control electronics design
• Modules are front panel accessible and plug-able for easy cleaning and service
controL • DMX512 in/out (5 pin XLR male and female) • NSI Micro-Plex in/out (3 pin XLR male and female) • NSI Luma-Net® architectural (plug-able 6 screw terminal block type) • O-10VDC analog control Inputs (15 pin D-Sub, male)

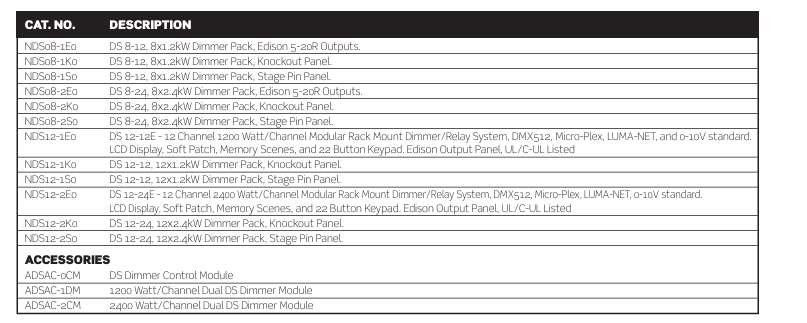

dS8-12 • 8-1200 watt dimmer/relay channels • 9,600 watts maximum power capability • 2 pole 40 amp power feed • 400 microsecond toroidal filtering
dS8-24 • 8-2400 watt dimmer/relay channels • 19,200 watts maximum power capability • 2 pole 80 amp power feed • 400 microsecond toroidal filtering
dS12-12 • 12-1200 watt dimmer/relay channels • 14,400 watts maximum power capability • 2 pole 60 amp/3 pole 40 amp power feed • 400 microsecond toroidal filtering
dS12-24 • 12-2400 watt dimmer/relay channels • 28,800 watts maximum power capability • Single/three phase power operation • 2 pole 120 amp/3 pole 80 amp power feed • 400 microsecond toroidal filtering
