SKU:: NDS12-1S0 REPAIR
UPC:: 7847712133
Condition:: Refurbished
Availability:: Repaired within 1-2 business days and then return shipped to you
Shipping:: Free Shipping

Overview
Warranty

Product Description

Leviton discontinued repairs on this product in January 2024. We might be able to help you with an alternative solution.
Please call us at 1-866-457-5937 with any questions.
***************************************************

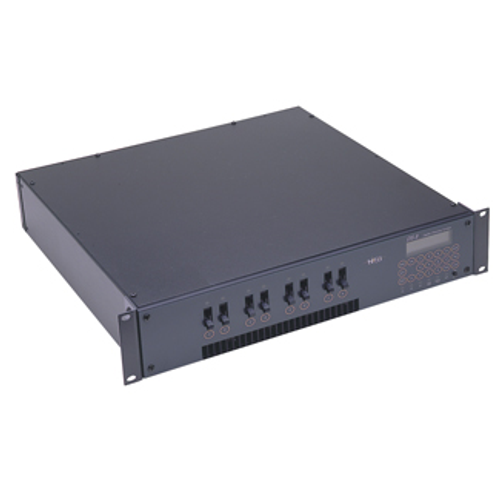

DS 12-12 12x1.2kW Dimmer Pack Stage Pin Panel. NDS12-1S0, REPAIR

THIS IS THE REPAIR OF AN EXISTING UNIT.

ONCE YOU PLACE THE ORDER, WE WILL PROVIDE YOU WITH AN RMA# AND SHIPPING ADDRESS TO SHIP THE ITEM OUT FOR REPAIR. ONCE THE ITEM IS RECEIVED, IT WILL BE REPAIRED IN 1-2 BUSINESS DAYS AND THEN OVERNIGHT BUSINESS DAY RETURN SHIPPED TO YOU.

12 channel, 1200 Watt/Channel, Modular Rack Mount Dimmer/Relay System, DMX512, Micro-Plex, LUMA-NET, 0-10V Standard, LCD, Soft Patch, Memory Scenes, and 22 Button Keypad. Stage Pin Panel, UL/C-UL Listed.

Leviton-NSI DS dimmer systems feature high power capacities in an easy to service compact and modular design. The DS digital dimmer systems combine convenient mobility with a rugged design and high caliber performance for a variety of lighting application demands. Our innovative modular design concept provides easy front panel access for control and dimmer module replacement even while the systems are rack mounted. This friendly feature is especially important for touring groups and also permanently installed systems where complete pack removal is difficult or impossible. The DS digital dimmer systems include a sixteen character Dimmersliquid crystal display and front panel keypad for intuitive access to features like backup presets with fade time, soft patch of DMX and NSI Micro-Plex control signals, O-IOVDC analog input control, and dimmer module temperature monitoring. LED’s on the front panel also provide status to a host of functions like dimmer control level, active power sources, active DMX512 and NSI Micro-Plex control signals, and over temperature warning. A DMX512 termination switch is also provided on the front panel. All of these performance features combined with the highest power density on the market make this dimmer an unbeatable value. Patents pending.

Features
• 20 button function keypad
• Liquid crystal display (backlit 16 character x 2 line)
• 400 programmable time fade presets
• Non-volatile EEPROM preset and softpatch storage
• Valid DMX signal indicator
• Valid NSI Micro-Plex signal indicator
• Line power indicator LED’s
• Individual dimmer load LED indicators
• Temperature status LED
• Front panel accessible DMX512 termination switch
• 120V input power
• 15V RMS preheat range
• Adjustable level test switches can be set to bump or latch action
• Over voltage and over temperature protection

Dimming
• Individual dimmer test/lamp focus buttons
• 10,000 AIC branch rated fully magnetic circuit breakers
• Rugged dual SCR dimmer design
• Automatic line regulation/compensation for power fluctuations
• 8 channel/single phase power operation
• 12 channel/single or three phase power operation
• Available in Edison/U-ground, stage pin or hardwired versions
• 1 output per dimmer
• Available in 1.2kW and 2.4kW versions
• Programmable maximum and minimum levels for each dimmer
• Pre-programmed dimming curve for Advance Mark X™ fluorescent dimming ballast
• LCD dimmer feedback including current temperature, control level and type of control signal

Mechanical

• Unique modular dimmer design
• Unique modular control electronics design
• Modules are front panel accessible and plug-able for easy cleaning and service
• Highest power density on the market, requiring only 2 EIA 19” rack spaces
• Internal variable speed cooling fan
• Recommended minimum of one rack space between packs to maintain adequate cooling

Other Details

"Warranty Repair/Replacement Any equipment bought from Leviton which fails within the warranty period may be returned for repair or replacement at Leviton's discretion, at no charge except freight, unless damaged by abuse. Warranties All warranties are F.O.B. factory, Tualatin, Oregon. Leviton product warranties are described in the product documention. The warranty begins from the date of purchase to the original owner when purchased from an authorized dealer or distributor. Some Projects may have purchased an extended warranty or are subject to other warranty terms as described in the Project documentation. The purchaser is responsible for completing and mailing to Leviton, within 15 days of purchase, the warranty registration card enclosed with each product. Leviton products that have been subject to accident, alteration, abuse, or defacing of the serial number are not covered by this warranty. The normal wear and tear of items such as knobs, jacks, and switches are not covered under this warranty. If your product requires service during the warranty period, Leviton will repair or replace, at its option, defective materials provided you have identified yourself as the original owner of the product to Leviton or any authorized dealer. Transportation charges to the Leviton factory for repair shall be the responsibility of the owner. All products returned to Leviton must have factory authorization in the form of an RMA (Return Materials Authorization) for return, prior to shipping. RMA numbers must be marked clearly on the packaging or the shipment will not be accepted. Leviton is not liable for any incidental or consequential damages resulting from defect or failure, other than repairs of the Leviton product, subject to the terms of this warranty. This warranty gives you specific legal rights, and you may have other rights, which vary from state to state. This warranty is expressly in lieu of all other agreements and warranties expressed or implied except as otherwise required by law. Lamps that are included with Leviton lighting fixtures are covered by the lamp manufacturer. Returns: must be accompanied with written authorization and issuance of an RMA form by Leviton Technical Services department. This department can be reached at (800)959-6004. A restocking fee may apply to any returned product."
