Leviton D8000 Slider & Button Station, 9 Sliders & 11 Buttons, black, refurbished (KS091-B)

DESCRIPTION 2 3 OFF

The Dimensions® D8000 Slider Stations are part of an advanced family of lighting controls. The distributed processing and network topology of this system brings the power and flexibility of networked computing to the lighting realm. With D8000, lighting projects of very large scale and complexity are readily designed and controlled, enabling total integration of theatrical, architectural, and energy management lighting control systems. This highly dependable and scalable system is also appropriate for small applications that may benefit from the intuitive operation, flexibility, and attractive appearance of the D8000 series. A complete D8000 lighting control system may also incorporate push button stations, LCD stations, theatrical lighting consoles, dimming racks, relay cabinets, photocell and occupancy sensors. Systems are programmable through the use of an offline, PC-driven editing program. Protocol converters are available to allow communications in Ethernet TCP/IP, DMX512, RS232, and Luma-Net® III.

FEATURES

• Machined From solid Corian for beautiful appearance and extreme durability

• Distributed processing provides enhanced reliability

• Station retains programming information for a minimum of 10 years without power

• Built-in IR receiver • Advanced software readily permits sophisticated join/separate room combining operations

• Available in black and white as standard colors

• Any Corian finish available as a custom

SPECIFICATIONS

• All buttons are programmable and can exeute any system function

• Programmable functions include, but are not limited to:   -“Fade To” Command     - Personality Change   - Room Combine     - Scene Change   - Snapshot    - Lock   - Raise/Lower    - MAX

• Programmable through LumaEdit™ PC-based offline editing program

• Controls up to 2,048 dimmer channels

• Mechanically captured buttons and sliders to prevent removal or vandalism

• Daylight viewable blue LED button and slider backlights with 20-year minimum life

• Fits in 3.5” deep wall box

• Stations connected in series using Belden cable #9829 or equivalent, and two conductors for station power

SPECIFICATIONS Communication Communicates via Luma-Net® III over Leviton #WIRLN-500P, Belden #1502R, Belden #9829, or equivalent, RS-485 compatible control cable Power Input +10-24Vdc, 50-25ma Capacity Up to 32,640 stations on a full network, Up to 128 stations on a sub-network, Up to 2,048 dimmer channels per sub-network Security Electronic station lock-out, Multiple levels of security passwords Programming PC based offline editing via LumaEdit™ software, Optional LumaGraphic™ software permits simplified total system programming, including very large scale and sophisticated join/separate room combining operations

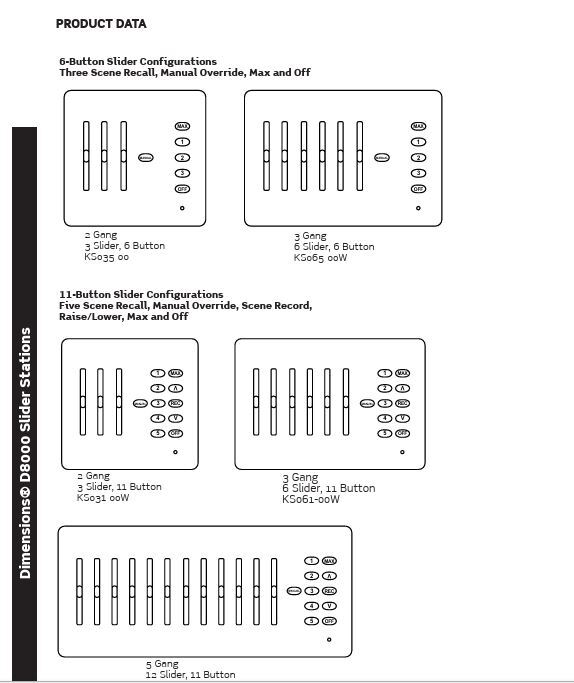

ORDERING INFORMATION* CAT. NO. DESCRIPTION:

KS035-00W D8000 Slider & Button Station, 3 Sliders & 6 Buttons: Manual, Presets 1 thru 3, Max & Off, Color: White

KS035-00B D8000 Slider & Button Station, 3 Sliders & 6 Buttons: Manual, Presets 1 thru 3, Max & Off, Color: Black

KS065-00W D8000 Slider & Button Station, 6 Sliders & 6 Buttons: Manual, Presets 1 thru 3, Max, Off, Color: White

KS031-00W D8000 Slider & Button Station, 3 Sliders & 11 Buttons: Manual, Presets 1 thru 5, Raise, Lower, Record, Max & Off, Color: White

KS061-00W D8000 Slider & Button Station, 6 Sliders & 11 Buttons: Manual, Presets 1 thru 5, Raise, Lower, Record, Max & Off, Color: White

KS121-00W D8000 Slider & Button Station, 12 Sliders & 11 Buttons: Manual, Presets 1 thru 5, Raise, Lower, Record, Max & Off,  Color: White

*D8000 stations are available as a custom in any color Corian available. Custom engraving is also available. Consult factory for color and engraving options.
