Product Description

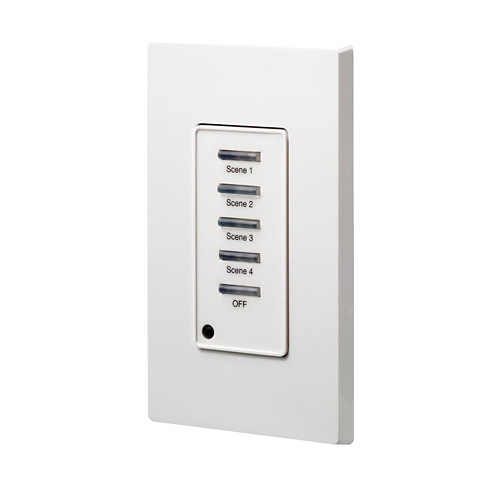

Leviton D42P4-00W Dimensions, Scene 1-4/OFF, Push Button, Light Switch, Refurbished
UPC Code: 078477180822
Country of Origin : Mexico
Applications There is a complete range of remote control stations available for D4200 systems. Their DECORA® design matches other DECORA® devices, and accepts any of the DECORA® or DECORA® PLUS screwless wallplates. These stations allow remote access to many of the D4200’s functions, at multiple locations. Several remote stations can be combined in one location to provide the exact control functions required. Rooms with multiple entrances may use different remote stations at each entry, providing control of the functions that are best suited to that location.
Features
• Remote controls available in 15 different configurations
• Up to 10 pushbuttons for full control, or simple two push button stations where only limited access to controls is desired
• All control switches are back lighted to indicate what has been selected
• Excellent tactile feel, and a “click” you can feel
• Used with Leviton DECORA® PLUS plates there are no visible fasteners
• Most units have an infrared receiver inside, and presets can be selected from a remote hand held infrared transmitter
• As many as 127 units can be operated on one set of control wires
• Only four wires required, two data wires, and two low voltage (12 volt DC) power wires
• All wiring can be Class 2
The D4200 remote control stations are designed to mount in standard, single-gang back boxes. Deep boxes are recommended to provide ample wiring space behind the units. All stations are designed to accept the Leviton family of DECORA® wallplates, including DECORA® PLUS screwless models, which leave no fasteners exposed. The stations extend many of the functions of a D4200 master control unit to remote locations. For example, in a room with several doors, the main master control might be located at one door while remote stations could be mounted adjacent to the others. This would provide light control from any entrance. The remote location control can be as complex or as simple as needed, depending on the remote stations selected.
Features
• Easy Installation- only four wires that loop from station to station
• Fits in a single gang deep switchbox
• Two #12 wires will not fit in terminals, wire as shown in diagram below
• Do not connect shield to ground or wall station, wire shield to shield. Terminate one time in dimmer cabinet.
• All low voltage(12V)
• Built to withstand static discharge
• Can be ganged using standard DECORA® wallplates
• Faceplate snaps on leaving no visible means of attachment
• Operating temperature 32°F to 104°F - Relative humidity 90% or less non condensing
• Wide choice of bezel colors, see DECORA® wallplates
• Multiple stations in one room for three way type applications
