Product Description

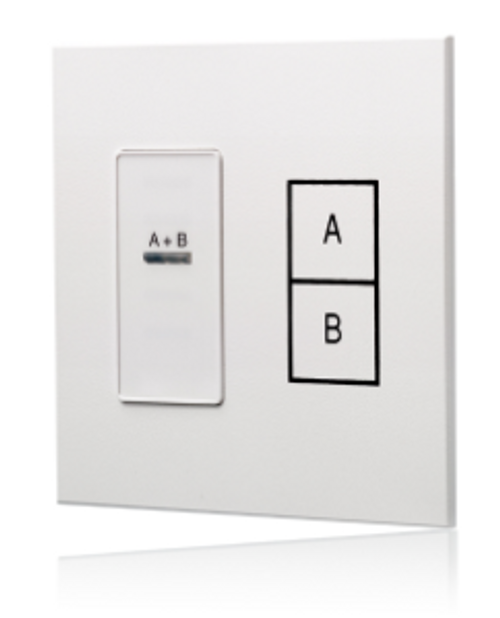

Dimensions® Room Combine A+B/C, Title 24 compliant, ASHRAE 90.1 compliant, White
A complete range of Decora® remote control stations are available for the Dimensions® D4200 systems. Use with any of the Decora or Decora® Plus screwless wallplates.
UPC Code: 07847769904
Country Of Origin: United States
Country Of Origin: United States
The Leviton D4200 architectural lighting controller puts total lighting control at your finger tips. The simple Combine Station allows a quick and out of the box solution for combining rooms.
Description
• Provide affordable Room Combine capabilities with an out of the box solution
• Minimal Programming required to work
• 5 common room configurations
• Customizable if necessary
D4200 Combine Stations Work With
• D4200 LCD Stations (up to 4 Masters)
• a-2000 Dimming Panels
• i Series e Dimming Racks
• Any DMX Dimming Rack in conjunction with a NPC XP or DLR
• D4200 Entry Stations
• Luma-Net Hub
SPECIFICATIONS
Operating Voltage
• Low-voltage type Class 2 (PELV), 10VDC to 15VDC.
• Lightning Strike Protection: Meets ANSI/IEEE standard 62.41-1980. Can withstand voltage surges of up to 6000V and current surges up to 3000A.
Appearance
• Faceplate snaps-on and shows no visible means of attachment.
• Available colors: White base with white door White base with black translucent door. LED’s are visible through the translucent door.
Environment
• LV221 features rocker on/off with bright/dim capabilities
• LV230 features on/off button with raise/lower slider
• Designer Decora styling enhances any décor
• Can be used with stand-alone or networked miniZ system
• Easy to find lighted button
Additional Features
• You can add up to 127 devices (LCD Stations, Entry Stations, Hubs, Combine/Closure Interface) on a data run.
