Product Description

Lake People G103-P MKII Headphone Amplifier

Overview

The Lake People G103P MKII contains everything that is still important to us today:

• robust, indestructible amplifiers with high transmission quality
• long-term stable Alps RK14 potentiometers for volume control
• 25 mm volume knob milled from aluminum
• more than adequately dimensioned internal power supply

Inputs & Outputs

Inputs analog Stereo:
-> 1x Neutrik XLR, unbalanced

Headphone Output:
-> 2x TRS 6,3 mm, unbalanced

Too Loud - Too Quiet - The Solution: Lake People PRE-GAIN

5-way adjustable gain for optimum adaptation to all sources and headphones (internal, -6, 0, + 6, +12, +18 dB).

Unlike comparable models, the overall amplification can be adapted to the headphones used via internal jumpers. Thanks to this special Lake People technology, the headphone amplifier can be operated with almost all known headphone impedances from 8 - 600 ohms and is as low-noise and dynamic as possible.

Perfect Headphone Protection

Lake People headphone amplifiers are equipped with various protective circuits to prevent headphone defects. These circuits protect against overvoltages, sudden current peaks or short circuits that could damage sensitive headphones. The integration of such protection mechanisms ensures that the amplifier always supplies the headphones with safe and stable power, which significantly extends their service life..

Housing & elements of the highest quality

The housing of the G103P MKII is made of black anodized aluminium. This promises high mechanical stability and resistance to harsh environmental influences. The high electrical conductivity of the surfaces results in excellent EMC properties..

The thickness of the front panel is 3 mm.

The solid milled 25 mm aluminum rotary knob is characterized by its clear design and forms the center of the Lake People G103P MKII. Thanks to its balanced weight and the Alps RK14 potentiometer, it provides a smooth, high-precision rotary feel for precise volume control.

Switch on and get started

The "POWER"-Switch is located on the front panel. A green LED below the "POWER" switch indicates when the unit is switched on. Two short-circuit-proof transformers generate the internal operating voltages of aprox. +/- 25 V.

Features

• unbalanced Inputs via gold plated RCA connectors
• PRE-GAIN: internal gain adaption in five steps
• Power Stages with power op-amp OPA551
• compact and extremely rugged aluminium case
• Made in Germany

Includes

• 1x Lake People G103P MKII
• 1x Power Chord
• 1x Manual

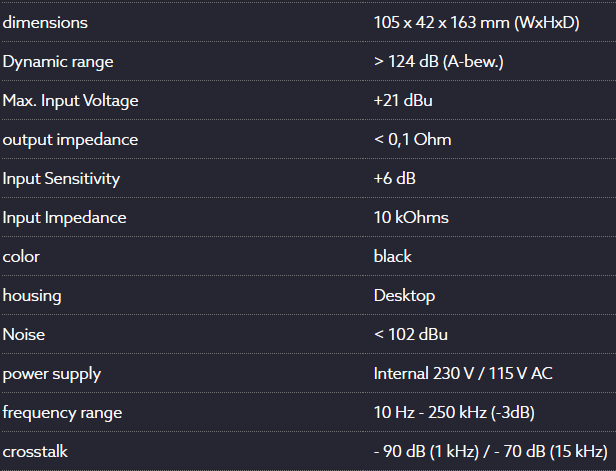

Specifications
