Lake People F611 AES/EBU Splitter
Overview

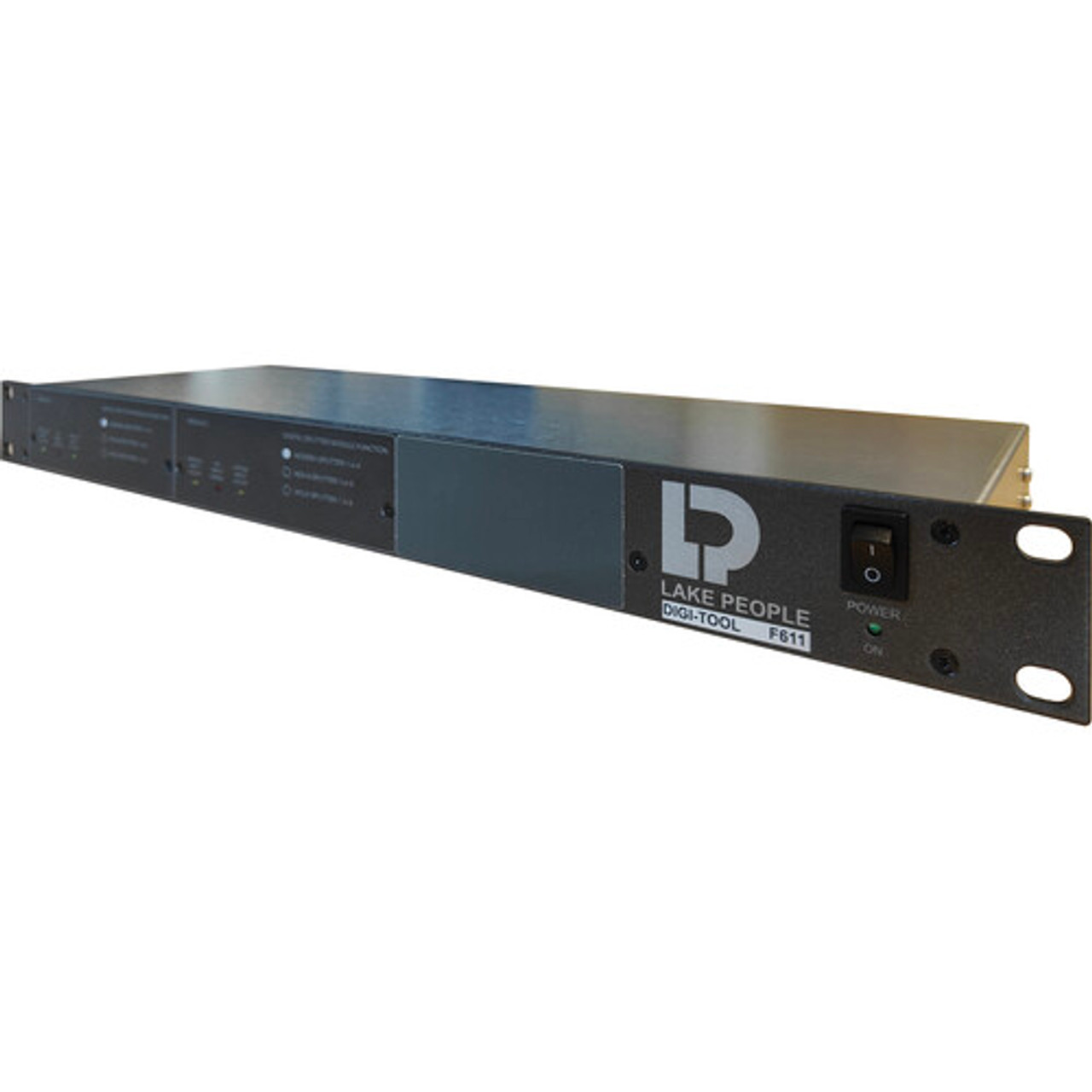

Ideal for use in modern recording and broadcast studios, the DIGI-TOOL F611 from Lake People is a distribution amplifier and digital splitter designed to deliver up to eight expanded AES/EBU XLR outputs for one input at sample rates as high as 24-bit / 192 kHz. The F611 features two separate modules, each with one balanced, digital XLR input and four balanced, digital XLR outputs, which can be operated individually, providing two 1-in, 4-out routings, or together to split one input into eight.
The unit features high output voltages for maintaining signal strength over very long distances, and a high input sensitivity helps to regenerate weak input signals. The F611 also sports failsafe operation thanks to its switchable multimode power supply, which automatically detects power input and switches to the appropriate voltage between 90 and 260 VAC.
To address this issue, the F611 sports AGC amplifiers to produce 5 Vpp output signals, more than enough to cover extremely long cable runs while maintaining optimal signal integrity. All I/O is balanced and both the inputs and outputs feature transformers for ensuring ideal signal strength, even allowing the unit to recover (regenerate) lost signal strength when receiving weak input signals.
Features
- For Studio and Broadcast Use
- 2 Modules Each with 1 Input & 4 Outputs
- Can Operate in 1 Input, 8 Output Mode
- XLR 3-Pin AES/EBU Balanced I/O
- 24-Bit / 192 kHz Max Sample Rate
- High Input Sensitivity for Signal Regen
- Large Output Voltages for Long Cable Run
- Auto-Switching Multimode PSU
Includes
- LAKE PEOPLE DIGI-TOOL F611 AES/EBU Splitter
Specifications
| Audio I/O |
| Power Source | |
| AC Input Power |
| Certifications |
| Mounting | |
| Color | |
| Material of Construction | |
| Dimensions |
