Product Description

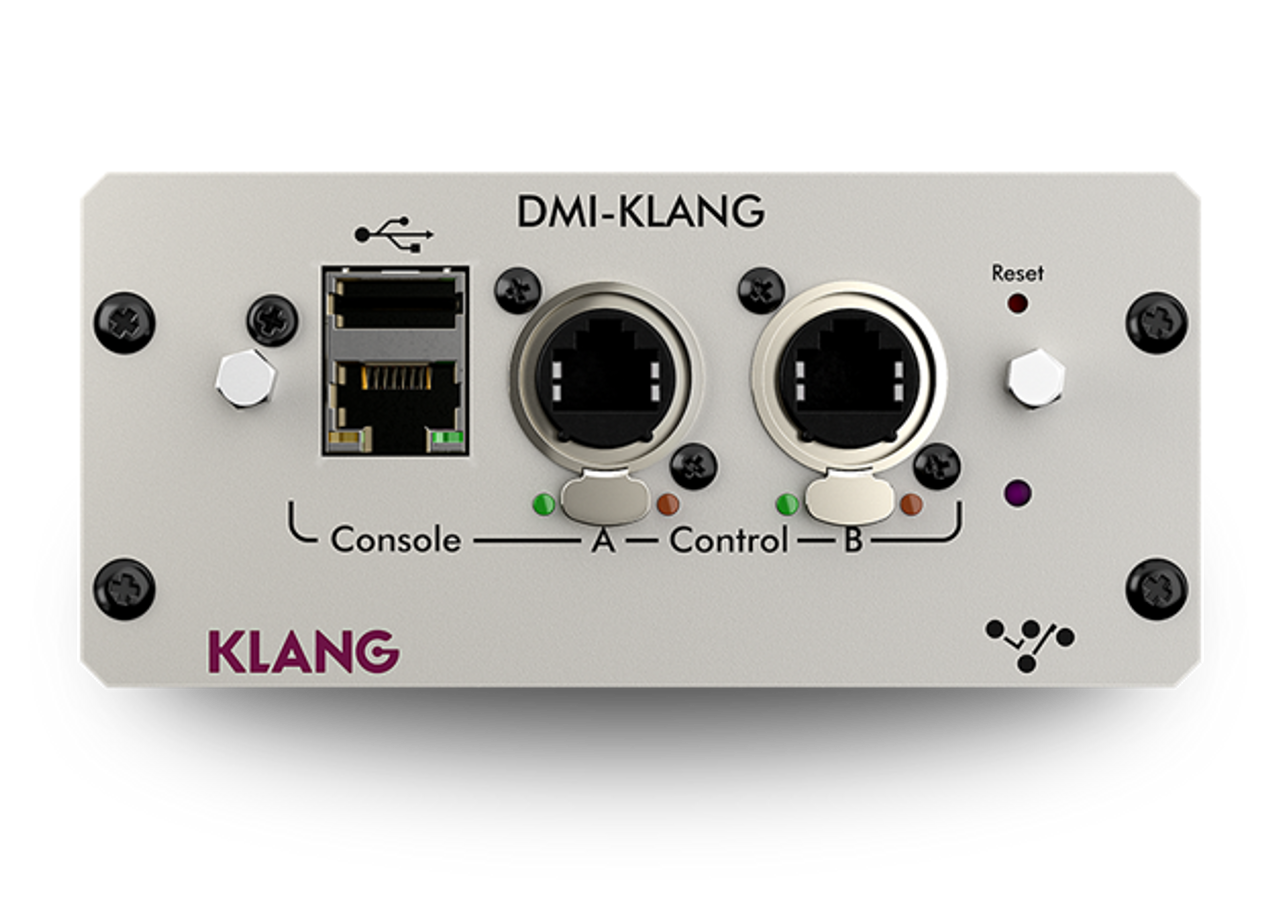

KLANG Technologies MOD-DMI-KLANG Immersive In-Ear Mixing Expansion Card
Overview
Following in the footsteps of KLANG:fabrik, DMI-KLANG is the first hardware product after KLANG and DiGiCO joined forces. KLANG took their immersive mixing core and build it with todays latest FPGA technology. The ultra fast and powerful FPGA architecture enables 16 immersive in-ear mixes for 16 musicians of 64 input channels single and double speed sampling rates at a processing latency of a quarter of a millisecond.
Integrated into a DMI card it connects directly to DiGiCo SD and Quantum console’s internal audio stream without any additional hardware IO or overhead. Route any audio channel from your console to DMI-KLANG and return the mix to the Aux merge input. Via the DiGiCo KLANG console link you can stay in usual mixing workflow, use your snapshots, faders and knobs, but with all the benefits of immersive in-ear mixing. Mounted into a DiGiCo OrangeBox the DMI-KLANG can be connected to any console with e.g. MADI (Optical, TP, BNC), Optocore, Dante and many other available DMI expansion cards. Or it can be installed in KLANG:konductor for additional processing.
This unrivaled mixing capability makes DMI-KLANG the perfect companion for any monitor engineer who needs to deliver better mixes with lower levels to their artist. If you are looking for further on-board flexibility with MADI, Dante, ADAT or our revolutionary root/intensity-EQs, please take a look at our other rack mounted immersive processors.
Features
- 16 immersive In-Ear mixes
- 64 input channels
- Easily connects to DiGiCo DMI expansion slots
- Ultra low latency through FPGA technology
- Workflow integration with DiGiCo SD and Quantum series consoles
- Add personal mixing by KLANG:app on any tablet, smartphone or PC/Mac
Specifications
- DMI card compatible with DiGiCo consoles and Orange Box and KLANG:konductor.
- Compatible with DMI slot in DiGiCo Quantum 225, Quantum 338, Quantum 7 (Must be installed in DMI Slot 2)
- Compatible with DMI slot in SD12
- Compatible with DMI slot in S21 and S31
- Mounted into a DiGiCo OrangeBox DMI-KLANG can be connected to any console with e.g. MADI (Optical, TP, BNC), Optocore, Dante and many other available DMI expansion cards
- 1x RJ45 Control Ethernet with packet filter for Console Link
- 2x Neutrik EtherCON
- 1/4 ms latency
- USB port for Software Updates and Preset Exchange
- 96 kHz | 48 kHz
- No root-intensity EQs supported
- DMI-KLANG does not have Dante IO and must be combined with a Dante DMI card for :kontroller
