Product Description
Kino Flo FreeStyle T24 Interview LED DMX Kit Universal (2-Unit)
Key Features
- 2 x FreeStyle T24 Fixtures w/ LED Tubes
- 2 x FreeStyle 140 LED DMX Controllers
- 2 x KinoGrip K41 Mounts
- 2 x 25' Head Extension Cables
- Gel Presets and FX Mode
- 2500-9900K Adjustable Color Temperature
- Multi-Voltage: 100-240 VAC
Kino Flo FreeStyle T24 Overview

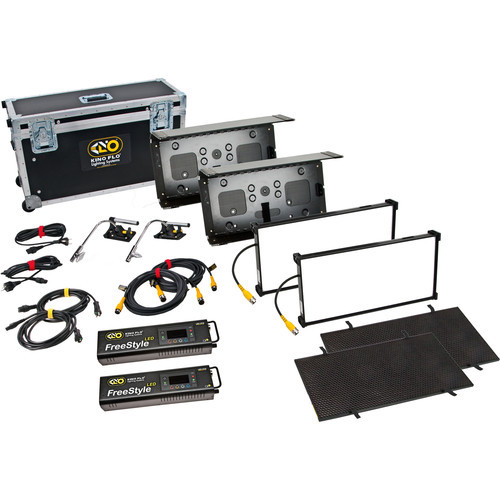

This 2-Unit FreeStyle T24 Interview LED DMX Kit Universal from Kino Flo is a professional lighting package for filming on the go. It includes two FreeStyle T24 LED Fixtures, complete with removable barndoors and honeycomb louvers, two FreeStyle LED DMX controllers with all required interconnect cables and mounting hardware, and a heavy-duty shipping case.
Kino Flo FreeStyle T24 LED Fixture
Slim and compact, the FreeStyle T24 LED Fixture from Kino Flo offers the same Color Science LED technology found in all Kino Flo LEDs. The portable and lightweight fixture can easily fit into tight locations or can be handheld with a separately purchased KinoGrip 41K mount. For mounting on light stands, the back of the fixture features a twist-on removable KinoGrip center mount, which can be adapted to work with multiple Kino Flo mounting adapters. The unit also comes with built-in barndoors and for additional light-shaping options, a reflector and 90° louver are included.
The FreeStyle T24 LED fixture requires separately purchased LED tubes, a head cable, and a DMX controller, and the controller features four individual modes: White, Gels/Hue Color, RGB Color, and FX. The White mode features dimming from 1 to 100% and a tunable range of 2700 to 6500K. In the Gels/Hue Color mode, the range is expanded from 2500 to 9900K. The gel channel also includes Kino Flo presets such as blue and green screen, sodium vapor, and mercury vapor, as well as over 100 well-known lighting gels. RGB Color mode gives individual control of red, green, and blue LEDs, and in FX mode you are provided access to popular effects such as candle, fire, TV, police, lightning, paparazzi, pulse, and scroll.
- Accepts four 2' LED tubes
- Adjustable color temperature from 2500 to 9900K
- 1 to 100% dimming without color shifts
- Flicker-free and quiet operation
- Gel presets include blue and green screen, sodium vapor, and mercury vapor, as well as over 100 well-known lighting gels
- FX mode for popular effects such as candle, fire, TV, police, lightning, paparazzi, pulse, and scroll
- Full-range onboard and DMX dimming
- DMX wireless link
Kino Flo FreeStyle 2' LED Tube
This FreeStyle 2' LED Tube from Kino Flo is compatible with the FreeStyle T24 LED Fixture. The LED tube can operate inside the fixture or independently with only the wiring harness. The LED tubes also have an aluminum rail on the backside of the lamp that can be used as an access point for alternative mounting accessories.
Kino Flo FreeStyle 140 LED DMX Controller for FreeStyle T44 Bulbs, (120 VAC Cord)
This Kino Flo FreeStyle 140 LED DMX Controller for FreeStyle T44 Bulbs comes with a power cord for running on 120 VAC while controlling and powering up to four T44 LED tubes. The controller features four modes that provide near total control of the output of the LED tubes (LED tubes not included). In white mode, the unit drives LED tubes output light with a color temperature range between 2700 to 6500K. It also enables dimming and green/magenta adjustment. Gels/Hue expands the color temperature range to 2500 to 9900K while providing access to background keying presets and over 100 lighting gel looks.
RGB mode provides access to the individual red, green, and blue LED luminaries for precise control. FX Mode provides customizable presets. The integrated display screen shows dim, Kelvin, green/magenta shift, and the DMX Channel. Four built-in buttons default to four Kelvin presets, but you can customize the settings of the buttons. The built-in control knob lets you set dimming, Kelvin, green/magenta levels and DMX address. The controller supports both wired and wireless DMX, and it accepts worldwide power inputs as well as 18 to 36 VDC
Menus
- White: dimming, tunable Kelvin range from 2700K tungsten to 6500K daylight; Green/Magenta controls
- Gels/Hue: extended Kelvin color range from 2500-9900K and provides access to Kino Flo presets such as blue & green screen, sodium vapor, mercury vapor as well as over 100 well-known lighting gels
- RGB: provides access to individual red, green, and blue control. Works with Apps with predetermined RGB presets or color wheels
- FX: custom presets like Candle, Fire, TV, Police, Lightning, Paparazzi, Pulse, and Scroll with control parameters that can be altered. For example, Lightning effect has a "Storm" and "Frankenstein" preset, but can change the Rate to provide additional variation
Kino Flo KinoGrip K41 Twist-On Mount with 5/8" Baby Receiver
Make your fixture easier to transport and handle with this KinoGrip K41 Twist-On Mount with 5/8" Baby Receiver from Kino Flo. Able to work with fixtures featuring Twist-On mating plates, this mount will add a grip handle for easier maneuvering of the light, as well as a wing knob for making quick adjustments and locking the light in position.
Kino Flo Extension Cable 150 for Select LED System (25')
The 25' Extension Cable 150 for Select LED System from Kino Flo provides extra distance between the Select LED head and its ballast. Up to 2 extensions can be joined for a total of 50'.
Kino Flo FreeStyle T24 Interview Systems Case with Wheels (Black)
Store, transport, and protect two Kino Flo FreeStyle T24 Interview Systems with this black Ship Case from Kino Flo. Photographers will appreciate the metal corners and valence. The case features recessed latch closure, top and side spring handles, and built-in wheels and feet.
Kino Flo FreeStyle T24 LED Fixture Specs
Light Fixture
Item Type | 1 x LED Light Tube/Wand |
Photometrics | 194 fc / 2090 Lux at 3.3' / 1 m* 22 fc / 247 Lux at 9.8' / 3 m 8 fc / 93 Lux at 16.4' / 5 m *Standardized Measurement Supplied by the Manufacturer |
Color Temperature | 2500 to 9900K |
Dimming | Yes, Built-In Dimmer 1 to 100% |
Front Accessory Mount | Proprietary |
Connectivity
Wireless Remote Control Type | Unspecified Type |
Power & I/O
Power Source | AC Power (Cable Not Included) Power Supply/Controller (Not Included) |
AC Input Power | 100 to 240 VAC, 50 / 60 Hz |
Inline Switch | No |
Power Pass-Thru | No |
Mounting
Fixture Mounting | 1 x Lollipop Receiver |
Included Adapter | 1 x Lollipop Mount: 3/8" Stud to Lollipop Ball |
General
Dimensions | 28 x 13 x 3.5" / 71.1 x 33 x 8.9 cm (Fixture) |
Weight | 8 lb / 3.63 kg |
Kino Flo FreeStyle 2' LED Tube Specs
General
Length | 2' / 61 cm |
Kino Flo FreeStyle 140 LED DMX Controller For FreeStyle T44 Bulbs, (120 VAC Cord) Specs
Connections | Power AC Input: IEC Connector DC Input: 3-Pin XLR DMX In & Out: 5-Pin XLR (Male & Female) USB: Mini-B |
Dimming Range | 100 to 1% Brightness |
Power | Voltage AC: 120 to 240 VAC, 50/60 Hz DC: 18 to 36 VDC, 150 W Draw AC: 1.25 A @ 120 VAC DC: 6.25 A @ 24 VDC Fuse 3.15 A/250 V |
Dimensions | 9.5 x 4.5 x 2.5" / 24.13 x 11.43 x 6.35 cm |
Weight | 4.5 lb / 2.04 kg |
Kino Flo KinoGrip K41 Twist-On Mount With 5/8" Baby Receiver Specs
Mount | 5/8" / 16 mm Baby Receiver |
Kino Flo FreeStyle T24 Interview Systems Case With Wheels (Black) Specs
Exterior
Closure Type | Latch |
Carry and Transport Options | Spring-Loaded Recessed Handle |
Exterior Dimensions (W x H x D) | 36 x 13 x 16.5" / 91.4 x 33 x 41.9 cm |
Weight | 27.5 lb / 12.5 kg |
