Product Description

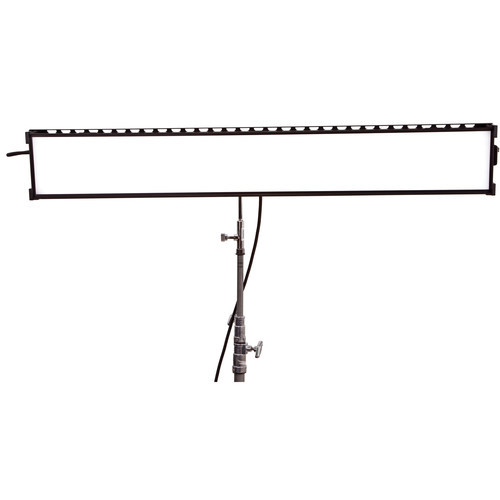

Kino Flo FreeStyle/GT 41 LED DMX System
Overview
The FreeStyle/GT 41 LED DMX System from Kino Flo contains everything you'll need to get up and running with this versatile fixture that offers complete color adjustment and extensive control features. The kit includes the FreeStyle/GT 41 fixture with a Gaffer Tray, LED Controller, and a 90-Degree Louver (grid) to narrow the fixture's beam for selective lighting. A KinoGrip mount with a 5/8" receiver and a 25' head cable are also included.
Key Features
- 1 x FreeStyle/GT 41 LED Fixture
- 1 x Gaffer Tray
- 1 x LED 151X DMX Controller
- 1 x KinoGrip Mount with Baby Receiver
- 1 x Extension Cable: 25'
- 1 x 90-Degree Louver
- Panel Measures 49.5 x 7.5 x 2.5"
- Variable Color Temperature: 2700-6500K
- Extended Range: 2500-9900K
Kino Flo LED Controller for Kino Flo Select 20 and 30 Fixtures
The LED Controller for Kino Flo Select 20 and 30 Fixtures from Kino Flo is a detachable controller for the Select 20 or Select 30 LED heads. The controller can be mounted on the back of the lamp head or used remotely up to 25' away with an optional extension cable. It enables the fixture to produce a consistent light level across the variable 2700 to 6500K color temperature range in the White Menu and 2500 to 9900K in the Color Menu. The White Menu has Dimming, Kelvin and Green/Magenta adjustment channels. The Color Menu gives you access to Gel, Hue Angle and Saturation channels. The Gel channel includes presets such as blue and green screen, sodium vapor, mercury vapor and over 100 well-known lighting gels. Hue Angle and Saturation channels act like a traditional color wheel with a 360-degree color range and choice of color intensity. The detachable controller has a display screen for menu navigation and information display, as well as physical buttons for navigation and settings.
This hard-wired DMX controller is augmented by wireless DMX, which is provided by Lumen Radio. It can accept worldwide AC power and can also be powered by DC via a 3-pin XLR connector.
Benefits
- Tunable Kelvin 2500K to 9900K in Color Menu
- Tunable Kelvin 2700K to 6500K in White Menu
- Dimming without color shift
- Green/Magenta control
- Kino Flo presets and Gel presets
- Dial-in color using Hue angle and Saturation control
- Universal input 100-240 VAC and 18-36 VDC
- Manual and DMX dimming with Auto Terminate
- DMX wireless (Lumen Radio)
- Flicker-free, dead-quiet operation
Kino Flo KinoGrip K41 Twist-On Mount with 5/8" Baby Receiver
Make your fixture easier to transport and handle with this KinoGrip K41 Twist-On Mount with 5/8" Baby Receiver from Kino Flo. Able to work with fixtures featuring Twist-On mating plates, this mount will add a grip handle for easier maneuvering of the light, as well as a wing knob for making quick adjustments and locking the light in position.
Kino Flo Extension Cable 150 for Select LED System (25')
The 25' Extension Cable 150 for Select LED System from Kino Flo provides extra distance between the Select LED head and its ballast. Up to 2 extensions can be joined for a total of 50'.
Kino Flo LED Controller For Kino Flo Select 20 And 30 Fixtures Specs
Power | VAC: 100 to 240 V @ 50/60 Hz, 150 W VDC: 18 to 36 V, 150 W 1.3 A @ 120 VAC, 7.0 A at 24 VDC |
Color Temperature | 2700 to 6500K in White Menu 2500 to 9900K in Color Menu |
Dimming | 100 - 1% |
Dimensions | 15 x 4.5 x 3.0" (38 x 11.5 x 8.0 cm) |
Weight | 4.5 lb (2.0 kg) |
Kino Flo KinoGrip K41 Twist-On Mount With 5/8" Baby Receiver Specs
Mount | 5/8" / 16 mm Baby Receiver |
