Product Description

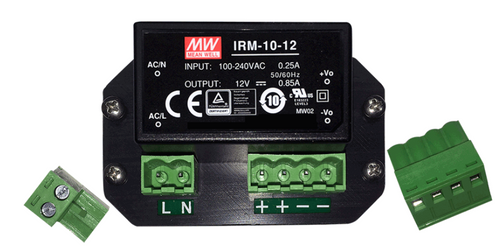

Johnson Systems PS-MINI-12 Miniature 12VDC 0.85A Power Supply
10 Watt miniature power supplies for integration with JSI control stations and other stand-alone low current AV applications. Power supply dimensions (all models) 1.6" W x 2.75" H x 1.06" D are designed to fit inside a standard single gang electrical back box. All supplies are UL rated for an input voltage range from 100-240VAC, encased in a UL94V-0 flame rated enclosure and feature our standard high quality break-away style plug/header for ease of installation. Optional single gang mounting plate available, see #PS-MOUNT below.
| Model | Description |
| PS-MINI-3.3 | Miniature 3.3VDC 2.5A supply. |
| PS-MINI-5 | Miniature 5VDC 2.0A supply. |
| PS-MINI-12 | Miniature 12VDC 0.85A supply. |
| PS-MINI-15 | Miniature 15VDC 0.67A supply. |
| PS-MINI-24 | Miniature 24VDC 0.42A supply. |
| PS-MOUNT-B | Single gang mounting plate. Black powder coat finish. |
| PS-MOUNT-W | Single gang mounting plate. White powder coat finish. |
Specs
Warning: Risk of electrical shock! Wiring termination must be done by qualified personnel only! For connection use copper wire only rated 167°F (75°C) or higher.
Wire Size: 28-12 AWG (1.0-2.5 mm2)
Strip Length: 0.28 in (7 mm)
Torque: 3.6 in-lbf (0.4 Nm)
