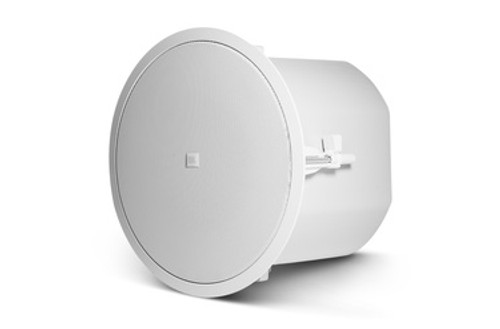

6.5" Ceiling Loudspeaker Transducer Assembly
The Control 26C is a powerhouse ceiling speaker containing a coaxially mounted 6.5" woofer and 3/4" titanium-coated tweeter, able to deliver maximum sound level over a wide coverage area.
The Control 26C is a powerhouse ceiling speaker containing a coaxially mounted 6.5" woofer and 3/4" titanium-coated tweeter, able to deliver maximum sound level over a wide coverage area.
Frequency Range | 75 Hz - 20 kHz |
Power Rating | IEC System Long-Term Ratings (low-Z direct): 150 Watts Continuous Program Power 75 Watts Continuous Pink Noise (150W peak), 100 hrs |
Nominal Sensitivity | 89 dB, 1m/1 W |
Coverage Angle | 110° conical |
Directivity Index (DI) | 4.6 averaged 500 Hz to 4 KHz |
Impedance | 16 ohms |
Maximum SPL (1m) | 107 dB (low-impedance, 113 dB peak) |
Drivers | LF Driver: 165 mm (6.5 in) HF Driver: 19 mm (¾ in) |
Terminations | Removable 4-pin locking connector with screw-down terminals. |
Dimensions (H x Dia) | 210 mm x 252 mm (8.3 in x 9.9 in) |
Net Weight (each) | 2.7 kg (6 lbs) |
Shipping Weight (pair) | 6.4 kg (15 lbs) |
Sensitivity | 89 dB (100 Hz - 10 kHz) |
Color | White |
Safety Agency | Suitable for use in air handling spaces per UL1480, UL2043, NFPA90 & NFPA 70. S7232/UL Listed, Signaling Speaker. Transformer UL registered per UL1876. In accordance with IEC60849/EN60849. |
Backcan | formed steel (included "blind-mount") |
Baffle/Rim | Medium impact polystyrene, fire rated UL94V-0 |
Ceiling Cutout Size | 220 mm (8.75 in) diameter (cardboard cutout template included) |
Included Accessories | C-shaped support backing plate 2 tile support rails (fits both 2 x 4 ft or 600 x 1200 mm tiles) Cutout template Paint shield Removable locking wiring connector |
Plenum Usage | Yes, backcan included |
