Product Description

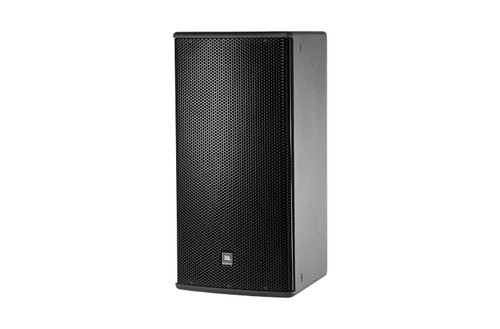

JBL AM5215/95 Two-Way Full-Range Loudspeaker System 1 x 15" 90° x 50° Coverage
2-Way Loudspeaker System with 1 x 15" LF
The AM5215 is a medium power, lightweight, 2-way, full-range loudspeaker system comprised of the JBL Differential Drive® dual voice coil and dual magnetic gap 265H-1 380 mm (15 in) low frequency driver and 2408H-1 high frequency 38 mm (1.5 in) exit, 38 mm (1.5 in) voice-coil compression driver. The large format PT™ Progressive Transition waveguide provides excellent coverage in a variety of patterns. The waveguide is rotatable so the loudspeaker system can be used in either the vertical or horizontal orientation. High-slope passive networks minimize band overlap. Well-controlled off-axis response enhances arrayability.
- 90° x 50° Coverage
- 265H-1 Differential Drive® Low-Frequency Driver
- 2408H-1 High-Frequency Compression Driver
- Large PT™ Progressive Transition waveguide for excellent pattern control and low distortion
- Rotatable waveguide for vertical or horizontal orientation
- Bi-Amp/Passive Switchable
- Available in Black, White and WRC/WRX weather resistant finishes
Applications
- Performing Arts Facilities
- Theatrical Sound Design
- Auditoriums
- Worship Facilities
- Live Clubs
- Dance Clubs
- Sports Facilities
- Themed Entertainment Venues
Frequency Range (-10dB) |
35 Hz - 20 kHz |
Frequency Response (±3 dB) |
41 Hz – 18 kHz |
Coverage Pattern |
/64: 60° x 40°/66: 60° x 60°/95: 90° x 50° /26: 120° x 60° |
Directivity Factor (Q) |
14.5 |
Directivity Index (DI) |
11.6 dB |
Crossover Modes |
Bi-amp/Passive switchable |
Passive Crossover Frequency |
2 kHz |
Transducer Power Rating (AES) |
LF: 500 W (2000 W peak), 2 hrs350 W (1400 W peak), 100 hrsHF: 40 W (160 W peak), 2 hrs |
System Power Rating |
Passive mode: 350 W (1400 W peak), 100 hrs |
Maximum SPL (1m) |
Bi-amp mode:LF: 125 dB-SPL cont avgHF: 131 dB-SPL cont avg. |
System Sensitivity (1w @ 1m) |
Passive mode: 98 dB SPL |
LF Driver |
1 x JBL 265H-1 380 mm (15 in) driver with 50.8 mm (2 in) dual voice coil |
Nominal Impedance |
8 ohms |
Sensitivity (1W @ 1m, within operational band) |
99 dB SPL |
HF Driver |
JBL 2408H-1, 38 mm (1.5 in) exit compression driver, 38 mm (1.5 in) voice coil |
Sensitivity |
115 dB SPL |
Waveguide |
PT-H66HF-1 |
Enclosure |
Trapezoidal with 15 degree side angles, 16 mm (5/8 in) exterior grade 11-ply birch plywood |
Suspension Attachment |
15 points (4 top, 4 bottom, 2 each side, 3 rear), M10 threaded hardware |
Finish |
Black DuraFlex™ finish. White available upon request. |
Grille |
Powder coated 14 gauge perforated steel, with acoustically transparent black foam backing. |
Input Connector |
NL4 Neutrik Speakon® and CE-compliant covered barrier strip terminals. Barrier terminals accept up to 5.2 sq mm (10 AWG) wire or max width 9 mm (.375 in) spade lugs. Speakon in parallel with barrier strip for loop-through. |
Environmental |
Mil-Std 810; IP-x3 per IEC529. |
Dimensions (H x W x D in vertical orientation) |
783 x 422 x 504 mm(30.8 x 16.6 x 19.85 in) |
Net Weight (each) |
25.0 kg (55 lb) |
Optional Accessories |
M10 x 35 mm forged shoulder eyebolts with washers U-Bracket MTU-1 |
System Power Rating |
Passive mode: 350 W (1400 W peak), 100 hrs (IEC rated) |
Nominal LF Driver Impedance |
8 ohms |
Nominal HF Driver Impedance |
8 ohms |
