Product Description
Interactive Technologies SN-200 2-Port SmartNode
Overview
The 2-Port SmartNode is a flexible network I/O device that is easily customized with a wide variety of interface types such as DMX, Digitial I/O, Relays, Serial, Station Bus, MIDI, and more, using optional Smart Modules. By adding modules, the physical interfaces become available on the network, and can be configured to augment a CueServer system or freely convert between popular network protocols such as sACN, ArtNet, or simple UDP messages.
For example, a SmartNode with DMX modules can convert between sACN, ArtNet, and physical DMX. Similarly, any of the other available modules, such as Relay, Digital I/O, Serial, Station Bus, MIDI, etc., can be configured to either augment a CueServer processor with additional I/O, or can be operated by lighting control protocols such as sACN or ArtNet, or exposed to the network via simple UDP messages.
Use the 2 Port SmartNode to add additional I/O to a lighting or general automation project over the network. With its vast array of configuration options, the SmartNode is easily integrated into CueServer-based systems, general lighting control projects, and custom networked-based applications.
Note: Smart Modules are sold separately.
Features
• Self-contained network I/O chassis for hosting up to two Smart Modules
• May be powered via PoE or 24V DC Input
• Multiple protocol conversion between CueServer, sACN, ArtNet, and UDP
• Supports growing catalog of Smart Modules
• Small anodized aluminum enclosure with optional brackets for panel, DIN, or truss mounting

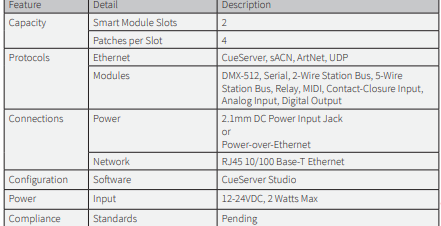

Specifications
