Product Description
Interactive Technologies SM-SBUS-2W 2-Wire Station Bus Smart Module
Overview
Smart modules add additional functionality and connectivity to select CueServer 3 models by plugging them into an available module slot.
Use SM-SBUS-2W modules to add the ability to connect to 2-Wire CueStation button stations (such as Mystique or Ultra stations).
The SM-SBUS-2W module provides enough drive capability to operate up to 10 stations, with a maximum distance from the module to any station of 1,000 feet (300 meters). The recommended wire types include inexpensive options, greatly reducing installation costs. The CueStation 2-wire protocol is both topology-free and polarity-free, meaning that “star” and “daisy-chain” wiring can be mixed together while not being concerned with polarity of the signal. Additionally, an LED indicator on the module provides at-a-glance operational status.
Features
• Connect up to ten (10) 2-Wire stations
• Maximum distance from module to farthest station of 1,000 feet (300 meters)
• Preferred wire type is CAT-6 cable
• Also supports many other inexpensive low resistance 2-conductor cable types (including Belden 5340, Belden 9740, Alpha M8528010 or similar)
• Can work with a wide variety of additional cable types, including many found in retrofit applications
• Topology-Free and Polarity-Free wiring
• Built-in status indicator LED

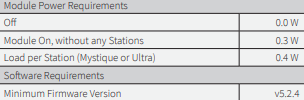

Specifications
