Product Description

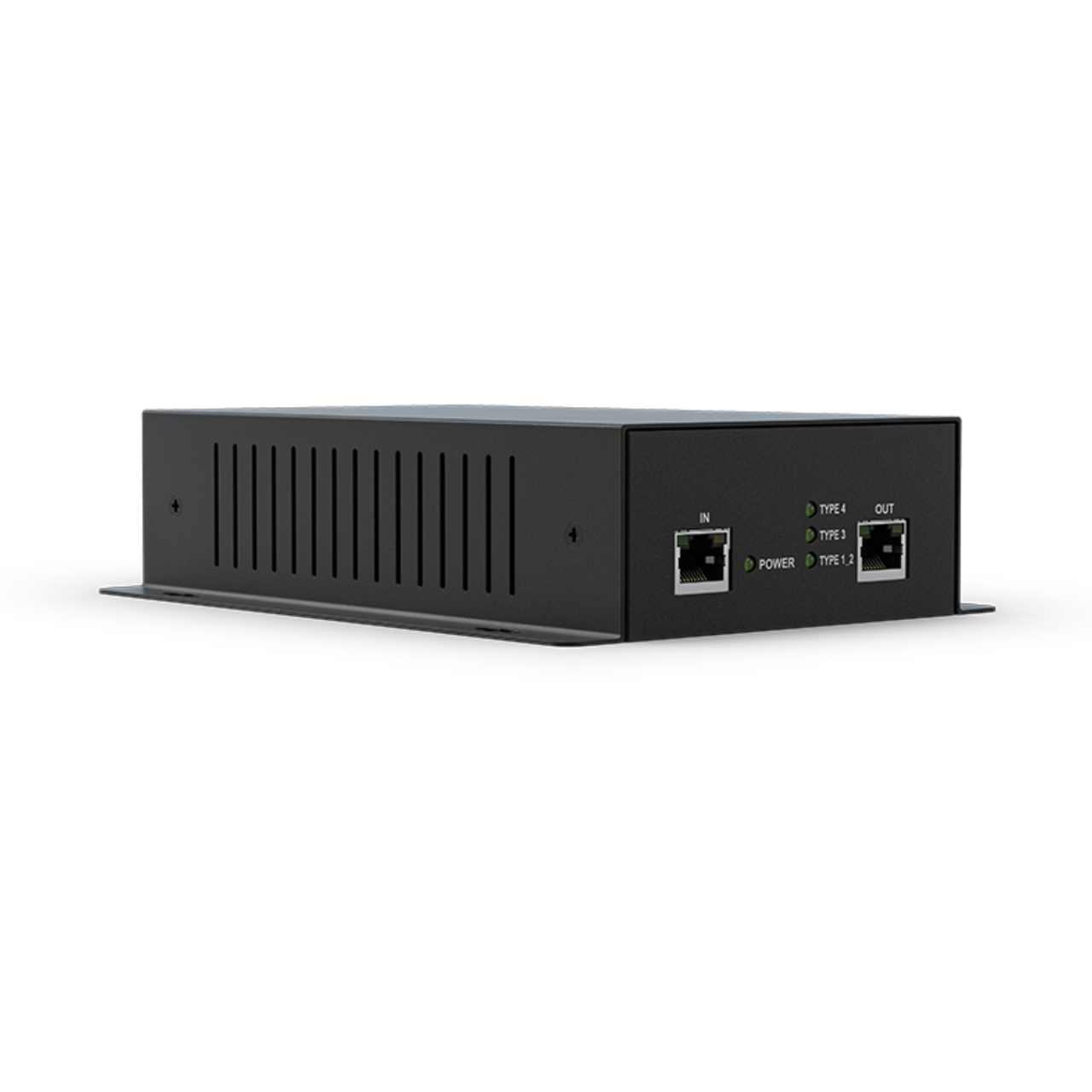

Iluminarc LOGIC POE Injector
Overview
Designed to inject POE power to remote fixtures using the latest POE standard IEEE 802.3 bt (Power over Ethernet). The Logic POE Injector has 1 output port and supports a maximum of 92.5 W. This unit can be mounted using the 2 teardrop brackets on either side of the housing. One power cable is included. A Logic controller using the Logic Remote Protocol (proprietary) is required to monitor the POE Injector.
Specifications
- Fixture Color: Black
- Mounting Options: wall mount via teardrop slots on side of Injector housing (2 on each side, 4 total)
- Weight: 1.8 lb (0.9 kg)
Control Specifications
- Control Protocol: Art-RDM, Art-Net, sACN
- Standalone Control: N/A
- Recommended Control Cable Specification: Belden 2413F, 2412F
Electrical System Specifications
- Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging), From LOGIC Driver
- Power and Current:
- 150 W, 1.50 A @ 100 V
- 150 W, 1.25 A @ 120 V
- 150 W, 0.72 A @ 208 V
- 150 W, 0.63 A @ 240 V
