Product Description

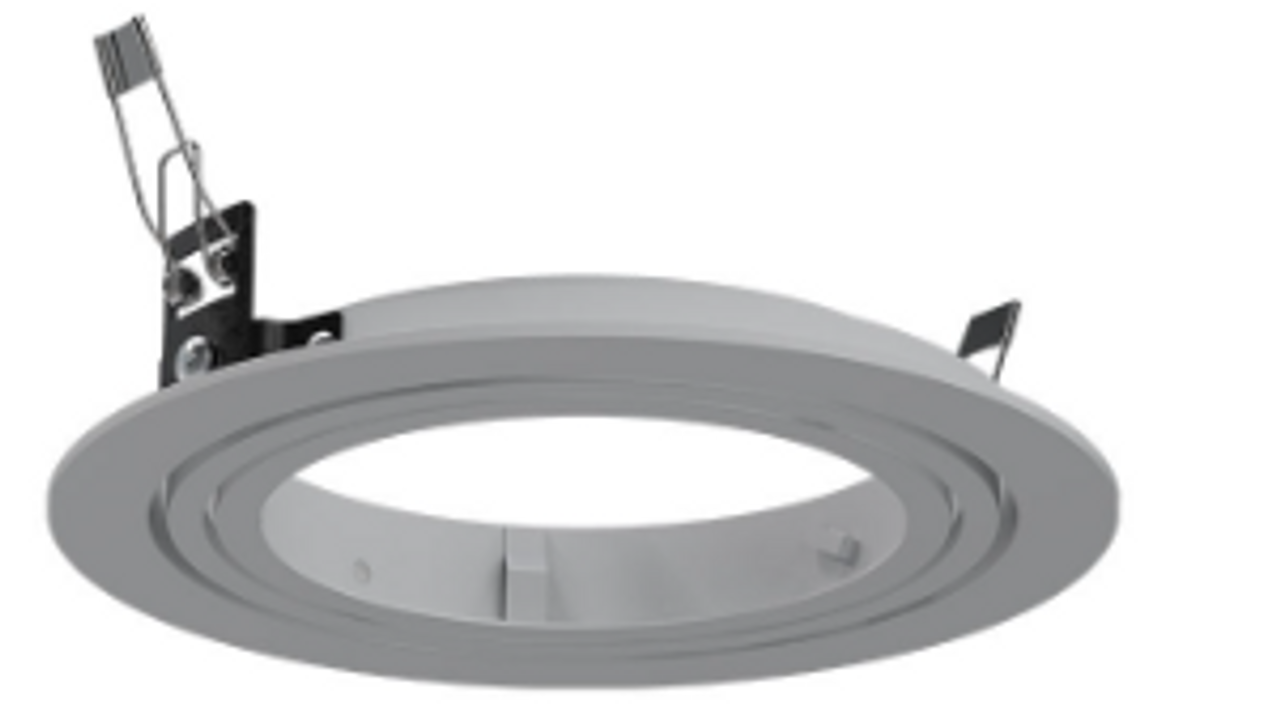

Iluminarc LOGIC AR111 Trim Ring - White
Overview
The Logic AR111 Trim is a trim ring mounting accessory for Logic AR111 downlights. It features a double gimbal to aim the lighting fixture up to 50° in either direction. It is used to mount the Logic AR111 fixtures in recessed ceiling lighting applications, such as drywall and plywood surfaces up to 22 mm, or ¾ in.
Specifications
- Cut Hole Diameter: 158.14 mm / 6.226 in
- Dimensions: 6.65 x 6.65 x 1.33 in (169 x 169 x 33.8 mm)
- Fixture Color: White
- Housing Material: Aluminum and steel
- Maximum Ceiling Thickness: 22 mm / 0.866 in
- Tilt Range: 50°
- Trim Diameter: 169 mm / 6.653 in
- Weight: 5.5 oz (156 g)
Thermal Specifications
- Cooling: Convection
Regulatory & Voluntary Qualification
- Certification Listings: CE/MET/FCC/RoHS
- Environment Details: All indoor permanent installations. Please refer to the User Manual for more detailed information on installation.
- Environment Locations: Dry
- Warranty: 36-month manufacturer’s limited warranty (for covered regions only)
