Product Description

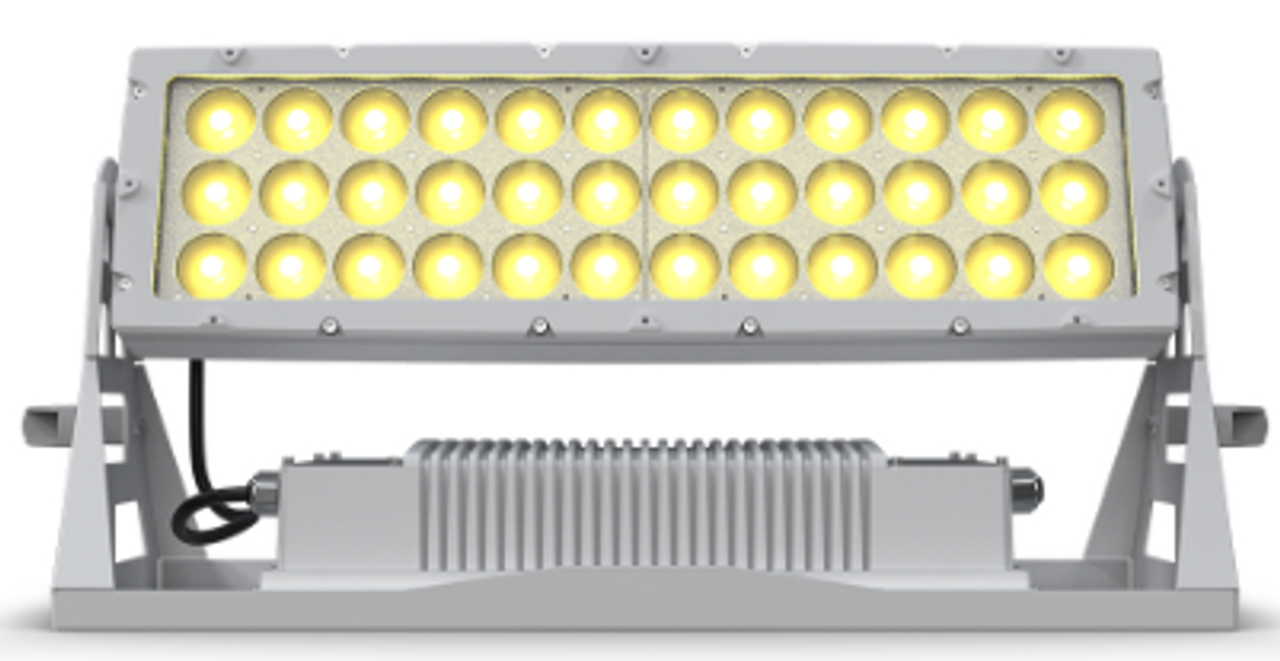

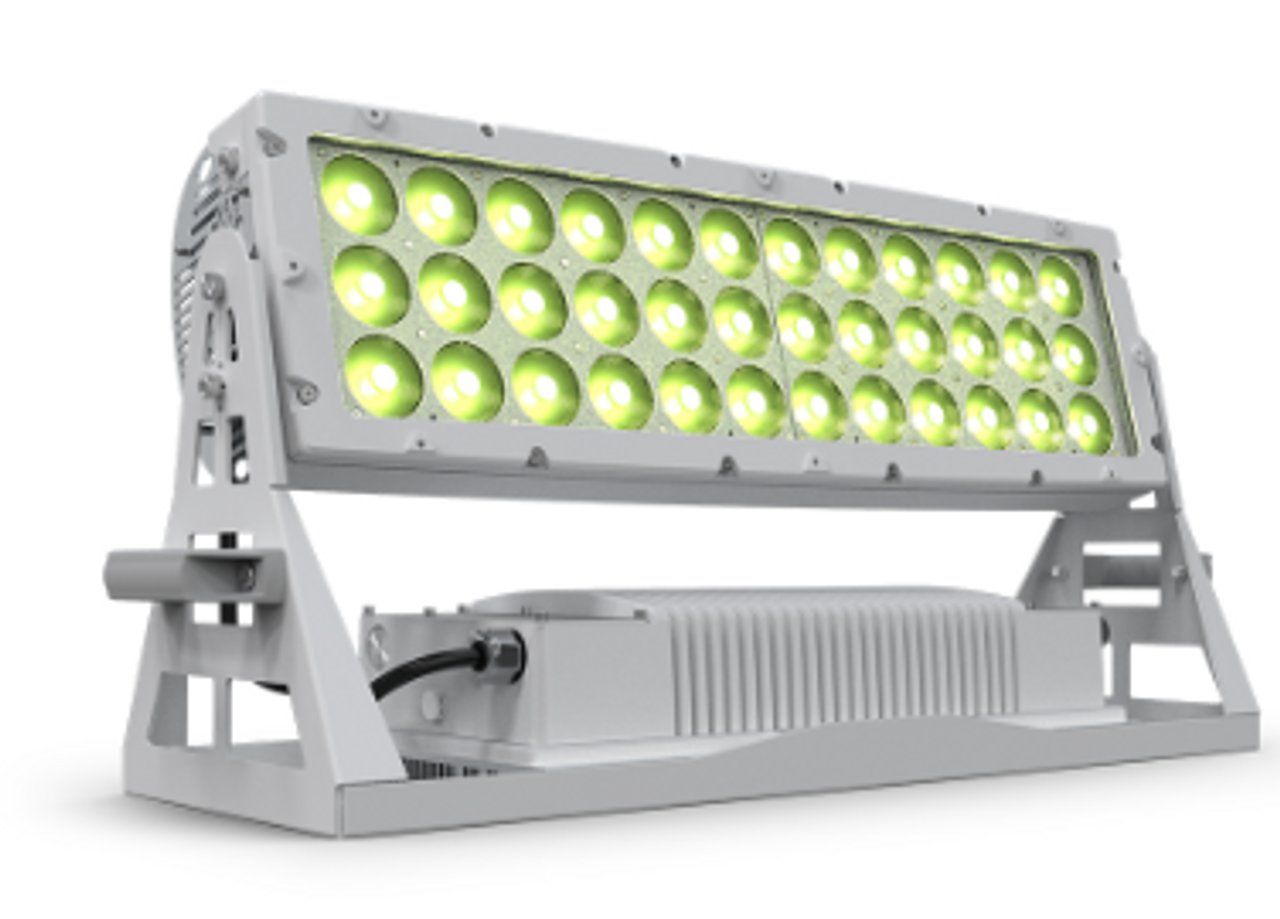

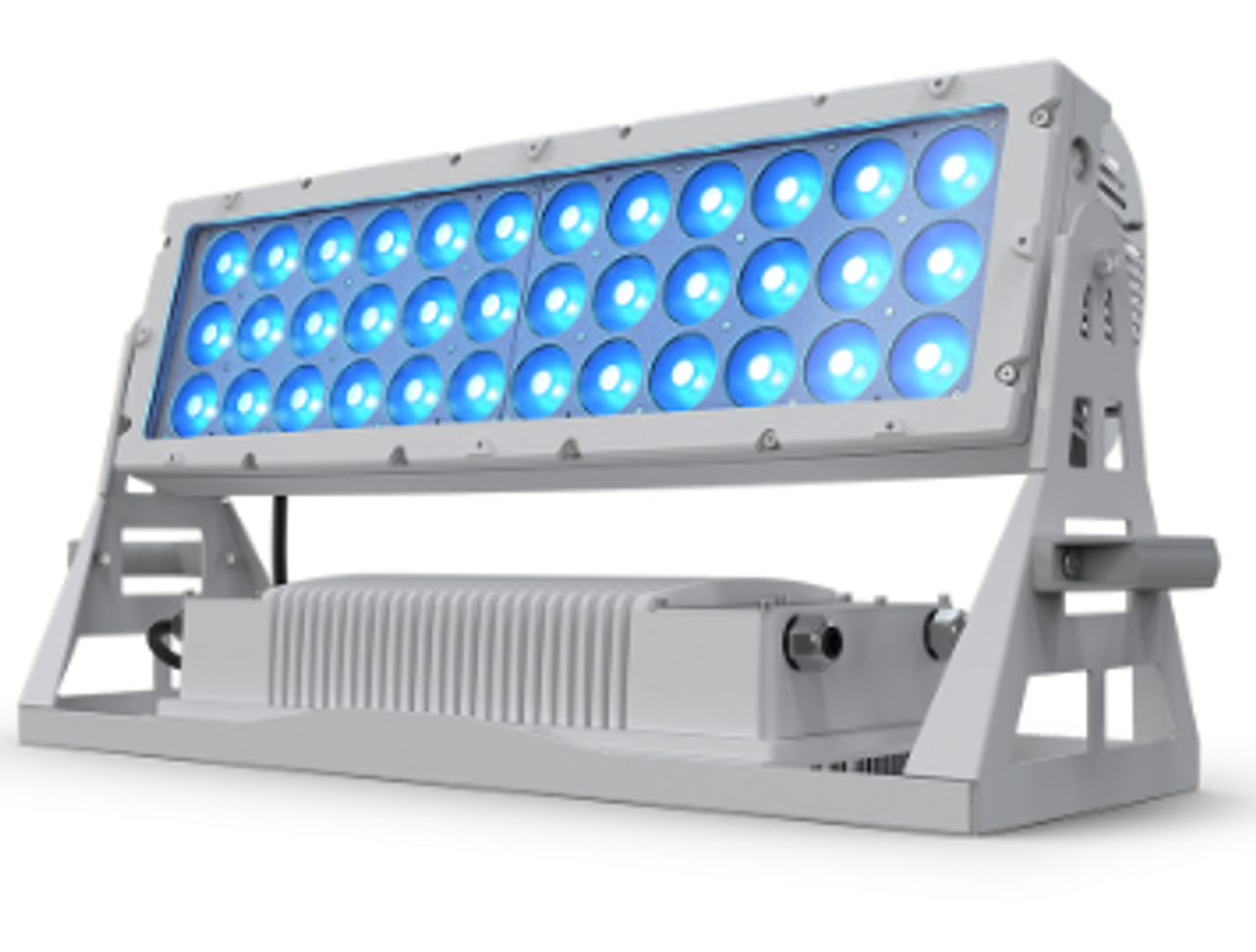

Iluminarc Ilumipanel LL large-Format LED Architectural Light
Overview
Ilumipanel LL from Iluminarc is a large-format LED architectural unit. Perfect for washing the sides of buildings in bold, beautiful colors, it includes a range of easy-to-install beam spread filters to fit any size application. Installation is fast and simple, while the sleek chassis blends into the environment. Precision optics eliminate multicolored shadows, and the RGBL (Red, Green, Blue, Lime) four-in-one LEDs output clean, true whites and a nearly unlimited palette of striking colors.
Features
- 4-in-1 RGBL Color Mixing
- 50,000 hour LED Lifespan
- Beam angle: 6.4º, or change with optional Beam Filters
- Illuminance: 29,314 lux @ 5 m
- IP Rating: 67
- Integrated Yoke
- Optional Beam Spread Filters can be applied without breaking IP Seal
Specifications
- Light Source: 36 LED (quad-color RGBL) 20 W, (1 A)
- Light Source Life Expectancy: 50,000 hours based on LED manufacturer’s specifications
- Installed Optics: 6°
- Optional Optics: Medium Filter, Wide Filter, Very Wide, Asymmetrical Filter
- Beam Angle: Installed Optics: 6.4°, Medium Filter: 19.9°, Wide Filter: 32.6°, Very Wide Filter: 34.9°, Asymmetrical Filter: 37° x 12°
- Field Angle: Installed Optics: 11.7°, Medium Filter: 41.3°, Wide Filter: 65.3°, Very Wide Filter: 72.7°, Asymmetrical Filter: 68.1° x 29°
- Cutoff Angle: Installed Optics: 19.7°, Medium Filter: 61.5°, Wide Filter: 162.7°, Very Wide Filter: 168.4°, Asymmetrical Filter: 168.1° x 51.2°
- Lumens: Installed Optics: 18,228, Medium Filter: 16,623, Wide Filter: 14,211, Very Wide Filter: 13,612, Asymmetrical Filter: 16,970
- Iluminance: Installed Optics: 29,314 lux @ 5 m, Medium Filter: 3,316 lux @ 5 m, Wide Filter: 939 lux @ 5 m, Very Wide Filter: 699 lux @ 5 m, Asymmetrical Filter: 2,605 lux @ 5 m
- Efficacy At Full: 37 lm/W
- Color Temperature Presets: 1800K - 10000K
Construction & Physical Specifications
- Dimensions: 32.4 x 9.92 x 15 in (824 x 252 x 381 mm)
- Fixture Color: Off white, C5-M
- Housing Material: Cast aluminum
- Lens Cover: Impact resistant glass
- Mounting Options: Bracket, hole diameter: 13M
- Weight: 69 lb (31.3 kg)
Control Specifications
- Control Protocol: USITT/DMX-512a/RDM
- Operating Modes: Selectable personalities
- Personalities:
- Solid (1-Channel)
- Arc 1 (3-Channel)
- Arc 1+D (4-Channel)
- Arc 2 (4-Channel)
- Arc 2+D (5-Channel)
- Arc Full (8-Channel)
- Special 1 (19-Channel)
- Special 2 (9-Channel)
- Data Connections:
- 6.25 ft (1.9 m) waterproof cable, bare wired to hardwired
- Fixture Setup: RDM Only
- Standalone Control: Yes
- Recommended Control Cable Specification: Gepco DLC224
Electrical System Specifications
- Electronic
- Input Voltage: 100 to 277 VAC, 50/60 Hz (auto-ranging)
- Power and Current:
- 463 W, 3.89 A @ 120 V, 60 Hz PF: 0.99
- 451 W, 2.22 A @ 208 V, 60 Hz PF: 0.97
- 447 W, 2.00 A @ 230 V, 50 Hz PF: 0.97
- 450 W, 1.73 A @ 277 V, 60 Hz PF: 0.95
- Power Supply: Electronic internal
- Recommended Power Cable: 14 AWG (3x 2.08 mm2)
