Product Description

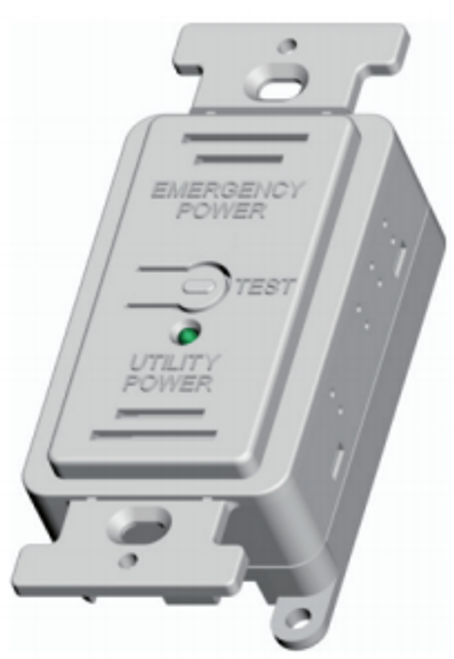

ILC RRU-X-UNV-FM Shunt Relay for 0-10V and Line Voltage Applications
The RRU-X-UNV-FM includes a high voltage Form C (N/O+N/C) relay and a low voltage Form A (N/O) relay and is UL924 Listed for emergency lighting control applications. The RRU-X-UNV-FM can bypass both a line voltage switch and a 0-10V dimming signal, ensuring that an emergency fixture illuminates at full brightness during a utility power interruption. Its slim profile fits most fixture ballast channels or wiring compartments. An integral test switch and LED allow for quick testing and verification of proper function.
Features
- Integral test switch and green utility power indicator
- UL924 Listed
- Fire alarm override input
- Dual N/O & N/C - Used for bypassing line voltage and low voltage switching, occupancy sensors or dimmers. Also used as dry contact to signal relay panels or BMS systems or utility power interruption
Specs
- Sensing Input
- 120V-277V
- LED Load Rating
- 1A (120V-277V) (Contact #1 & Contact #2)
- Ballast Load Rating
- 5A (120-277V) (Contact #1 & Contact #2)
- Incandescent Load
- 360W (120V) / 500W (277V)
- DC Rating
- Contact #1 & Contact #2 may be used for 1A (0-30VDC)
- Mounting
- Fixture Mount, Panel Mount
- Rating
- UL94-0A, Plenum Rated, Damp Location Related
- Shipping Weight/Color
- 8.0 oz. / Black
- Temperature
- 32°F - 140°F (0°C - 60°C)
- Body Size
- 1.7" x 3" x 1.2" (W x H x D body)
