Product Description

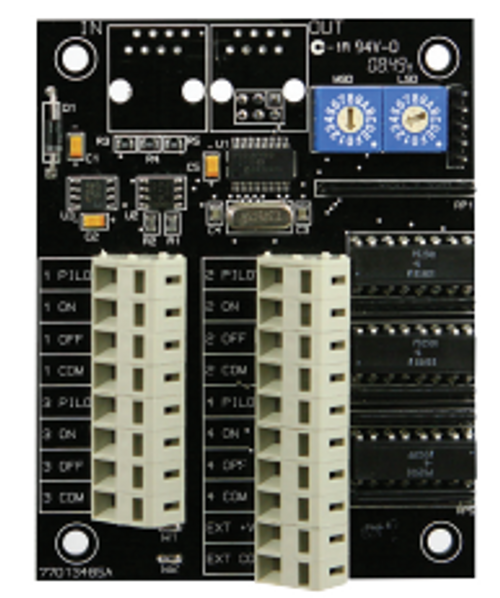

ILC LSPSC-4-PR-P LightSync Photo Sensor Controller - 4 Inputs - Panel Mount on a plate with RJ45 connectors
The LightSync Digital Photo Sensor 4 incorporates a space-saving 4 head controller in 1 module. As with our standard photocell controller it monitors the light levels and transmits the data across the LightSync Digital data line to the lighting control panels. Each sensor has 8 individual set points for on or off control with a selectable dead-band and is programmable to any or all relays, groups, or presets. Each sensor has a built in adjustable filter to eliminate false triggering from lightning or other sudden light sources. Can be used for daylight harvesting to shed lighting loads or used with a dimming module to dim loads. The indoor and outdoor photocell heads convert the analog light levels to a digital form and are UV resistant.
The sensor head is not included.
FEATURES
• Made in the USA
• Digital CAT-5 Ready
• Light levels monitored indoors or outdoors from 0 to 1800 fc
• Incorporates 4 LightSync photocell controllers in 1 module
• Configurable from 1 to 4 photocells
• Control points consists of 8 individual On and Off inputs
• Dead-band for each control point
• Analog to digital photocell heads
• Photocell Filter to eliminate false triggering of loads
• Digitally addressable device for a unique address
• Photocell head connectors are push-to-connect type
• Mounting options for in the panel or at a remote location
Safeguards:
• Photocell filter to eliminate false triggering of loads
• UV resistant photocell heads
• Encased outdoor photocell head protects sensor from the elements
SPECS
Controller Physical:
• 2.75”Wide x 3.50”High
• Digital addressing switches
• Configuration selection jumpers
• Remote mount has RJ45 connectors easy data line connections
• Remote mount provided with a 4.69" x 2.25" deep steel box with cover
• Panel mount supplied with connector for direct connection onto a relay driver board
• Push-to-connect photo sensor inputs
Photocell Heads:
• Outdoor photocell mounts in a 1/2” LB type fitting or junction box
• Indoor photocell mounts to ceiling tile or other structure
• Indoor 45 degree photocell mounts to ceiling or other structure. Angled for light harvesting.
Electrical:
• Powered from the panel or the LightSync network
Controller Operating Environment:
• Location: Interior Space
• Operating Temp.: 0° to 50° C
• Humidity: 10% to 90% Non-condensing
• Atmosphere: Non-explosive/corrosive
• Vibration: Stationary
Photocell Operating Environment:
• Location: Interior/Exterior Space
• Operating Temp.: -35° to 50° C
• Humidity: 10% to 100% Condensing
• Atmosphere: Non-explosive/corrosive
• Vibration: Stationary
Certifications:
• UL
• CUL
• FCC Part 15
