Product Description

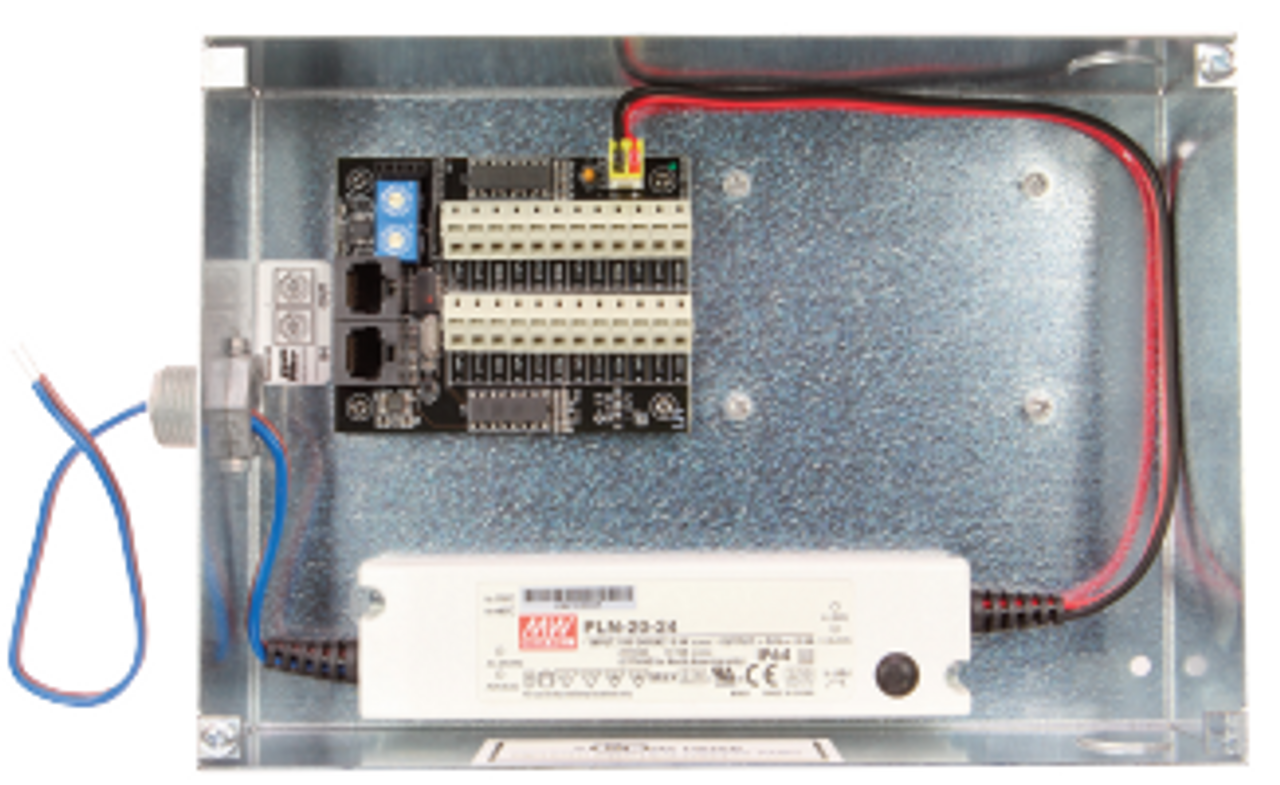

ILC LSOSM-R LightSync Occupancy Sensor Module
Overview
The LightSync Digital Occupancy Sensor module is designed with 8 occupancy sensor inputs that provides power for multiple occupancy sensors. The LSOSM comes preconfigured as a standard occupancy sensor, and contain programmable conditionals for each Input. This allows you to utilize "AND"/"OR" logic schemes for any combination of inputs and pilots. Any input can be programmed to control any relay(s), group(s), or preset(s) in any or all panels. Each input has an associated LED on the board that activates when the input is closed.
Features
- Made in the USA
- Digital CAT 5 ready
- 8 Conditional occupancy sensor inputs per module
- Provides Power and inputs for occupancy sensors
- Programmable conditional logic
- Accepts 2 wire maintained or momentary closures
- Connectors are non-screw push-to-connect type
- Switch closure LED status for each input
- Optically isolated inputs to protect electronics
- Remote mount (R) provided with electrical enclosure
- Power from 120/277VAC power supply
- Software logic programming provided
Specifications
Safeguards:
- Optically isolated inputs protect electronics
Remote Mount Physical:
- Enclosure: 6.50” x 9.25” x 2.50 ”with screw cover
- 1/2”nipple for mounting to an electrical box
- 6”wire leads provided for high voltage connection
- Push-to-connect low voltage connections
- Provided with pre-drilled mounting holes
- Digital addressing switches
- RJ45 connectors for remote mounting option
Electrical:
- Electronics powered from LightSync data line
- Sensors powered from 120/277VAC power supply
- Current: 800mA
- Voltage: 24VDC
- Current limited circuit
Operating Environment
- Location: Interior space
- Operating Temp.: 0° to 50° C
- Humidity: 10% - 90% Non-condensing
- Atmosphere: Non-explosive/corrosive
- Vibration: Stationary
