Product Description
ILC LSOSM-P LightSync Occupancy Sensor Module - Panel Mount
Overview

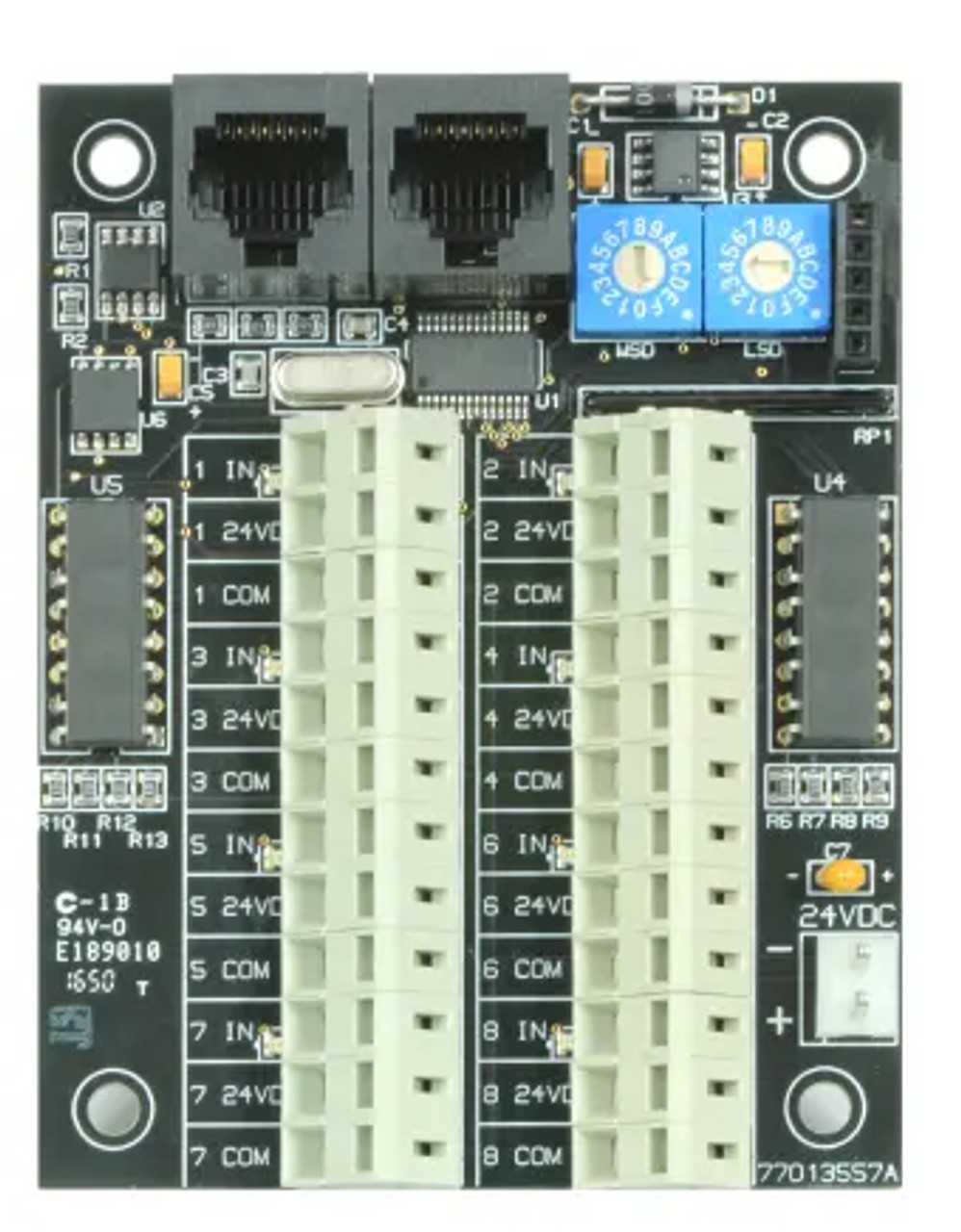

The LightSync Digital Occupancy Sensor module is designed with 8 occupancy sensor inputs that provides power for multiple occupancy sensors. The LSOSM comes pre-configured as a standard occupancy sensor, and contain programmable conditionals for each Input. This allows you to utilize "AND"/"OR" logic schemes for any combination of inputs and pilots. Any input can be programmed to control any relay(s), group(s), or preset(s) in any or all panels. Each input has an associated LED on the board that activates when the input is closed.
Specifications
Safeguards:
- Optically isolated inputs protect electronics
Physical:
- 2.75” Wide X 3.5” High
- Easy non-screw push-to-connect terminals
- Digital addressing switches
- RJ45 connectors for data line connection
- Remote (R) option provided in a 6.5"x9.25"x2.50" enclosure with 1/2" connector and screw cover.
Electrical:
- Electronics powered from LightSync data line
- Input: 120/277VAC @ 400mA
- Output: 24VDC @ 800mA
- Current limited circuit
Operating Environment:
- Location: Interior space
- Operating Temp.: 0° to 50° C
- Humidity: 10% - 90% Non-condensing
- Atmosphere: Non-explosive/corrosive
- Vibration: Stationary
Certifications and Approvals:
- FCC Part 15
- UL
- CUL
