Product Description

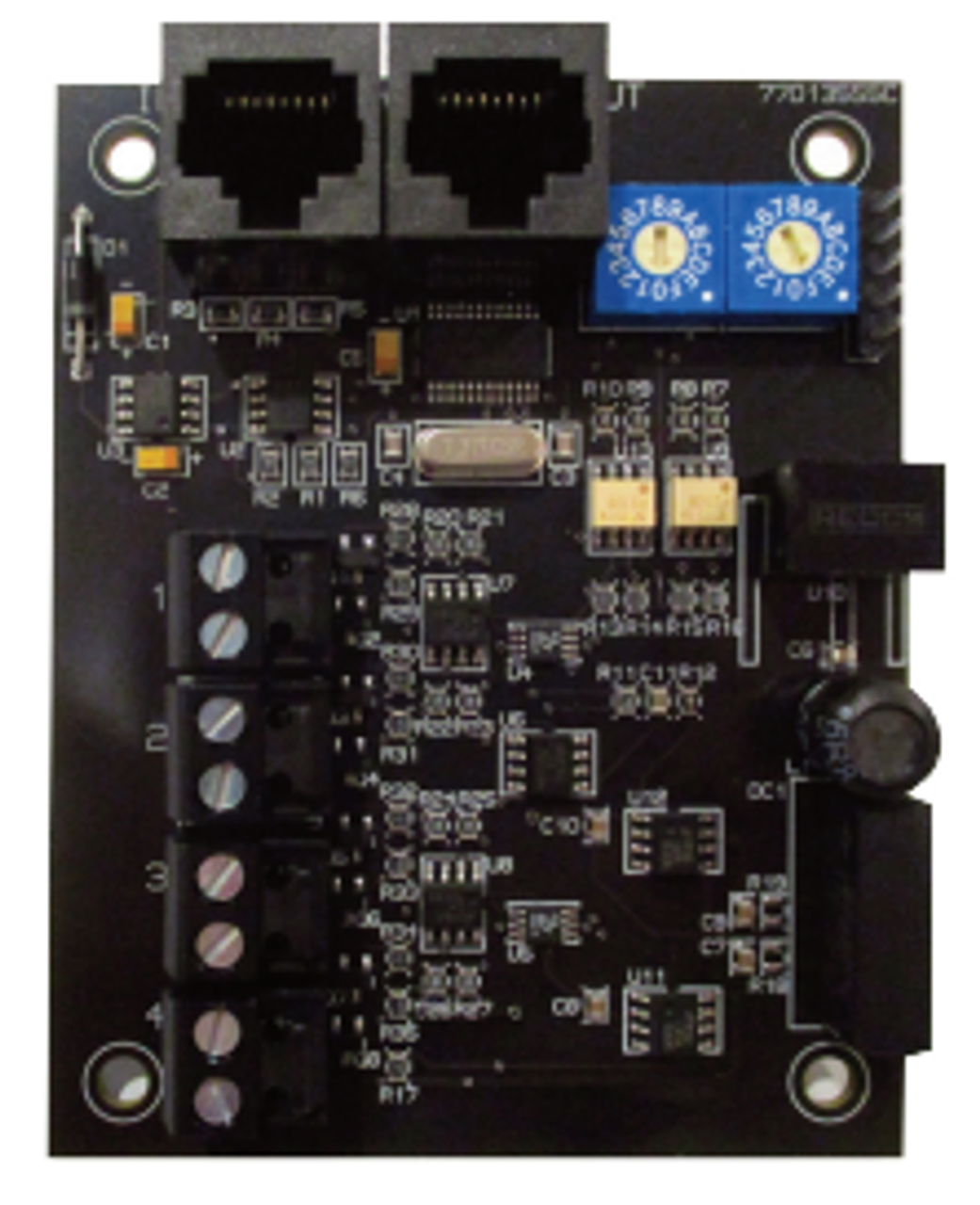

ILC LSDM-P LightSync Dimming Module - Panel Mount
Overview
The LightSync Digital Dimming Module is designed for 0 -10V device control. This dimmer is galvanically isolated up to 1500V and designed to be used with MC luminary style cable. This module can be installed in the lighting control panel or remotely mounted on the panel local CAT-5 network. Each of the 4 independent channels can control up to100 ballasts with 256 steps between 0 and 10V. Outputs are designed to sink voltage up to 100mA per channel. Each output may be programmed to respond to 16 inputs per channel. Upon loss of power, the dimmer outputs will go to 10V or full brightness. The intuitive software provided makes it easy to program and adjust the settings.
Specifications
Physical:
- 2.75” Wide X 3.5” High
- Removable output connectors
- Digital addressing switches
- RJ45 connectors for CAT-5 to the panel local port
Electrical:
- Powered from the panel or from the LightSync network
- 100mA sink per channel
- 0-10VDC
Configuration:
- Software programming
- Directly through keypad
Operating Environment:
- Location: Interior space
- Operating Temp.: 0° to 50° C
- Humidity: 10% - 90% Non-condensing
- Atmosphere: Non-explosive/corrosive
- Vibration: Stationary
