Product Description

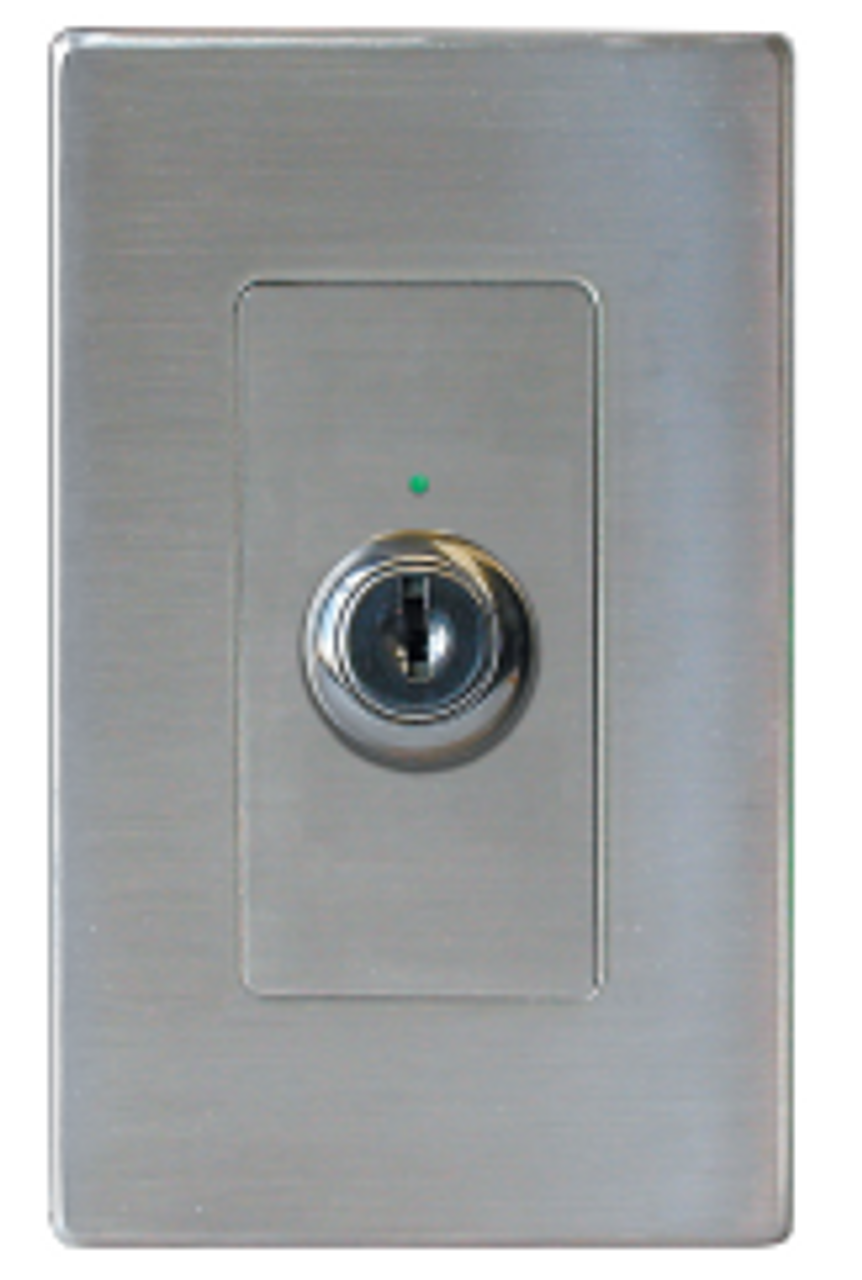

ILC LSDKS-SS LightSync Disable Key Switch - Stainless Steel
Overview
The LightSync Digital Data Line Disable Key Switch Station provides an extra level of security by disabling all LightSync devices down from the disable switch. Ideal for areas with switches that require control functions to be limited or locked out. Switch stations have a high quality 5-tumbler key switch and status LED. Key Switches stations are available in stainless steel.
Features
- Made in the USA, meets BABA Requirements
- Digital CAT-5 Ready
- Disables LightSync devices on the data line
- Feed-through allows for normal data line communication
- Key Switch maintained type with removable key
- Secure 5-tumbler high quality switches
- Status LED indicates disable state
- Key Switch Stations are available in stainless steel
- Mounts in a standard single gang box
- Mount anywhere on the LightSync network
- Self-powered from the network
Specifications
Physical:
- Standard single gang mounting
- Data in, data out, and data disable out ports
- RJ45 connectors provided for easy connection
- Mounting screws provided
- Laser engraving up to 10 characters available
- Available in stainless steel
Switches:
- Maintained SPST key removable in “on” or “off” position
Electrical:
- Powered from the panel or LightSync network
Operating Environment:
- Location: Interior space
- Operating Temp.: 0° to 50° C
- Humidity: 10% - 90% Non-condensing
- Atmosphere: Non-explosive/corrosive
- Vibration: Stationary
