Product Description
ILC LLNC-P LightLEEDer Network Controller - Panel Mount
Overview
The LightLEEDer Network Controller module manages network activities including syncing panel clocks, and data between panels. It also manages communication between up to 254 panels, allows up to 254 LightSync devices on the panel network, and provides USB connection to a PC. In addition, it includes high-speed LightSync device scanning with data line power, single point gateway options, and TCP/IP to host communications. The LLNC can double stack on top of a processor in any panel, or is available in a NEMA 1 enclosure with a hinged locking door.
Specifications
Panel Mount:
- 6” Wide X 4” High
- Removable power connector
- USB connector
- RJ45 Ethernet connector

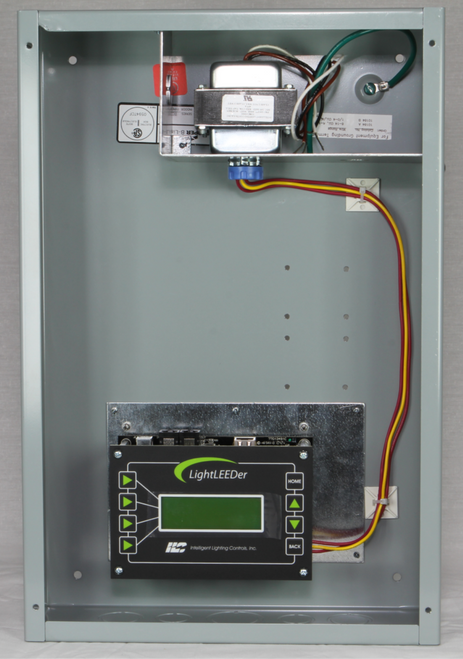

Advanced Remote Panel:
- 14” Wide X 12” High x 6” Deep
- ANSI 61 gray door
- Mounting holes provided
- High voltage divider
- NEMA1 galvanized enclosure
- Knockouts provided
- Surface mount hinge locking door
