Product Description
ILC LLLM4R LightLEEDER LightMaster-4 Retrofit Controller Board
Overview

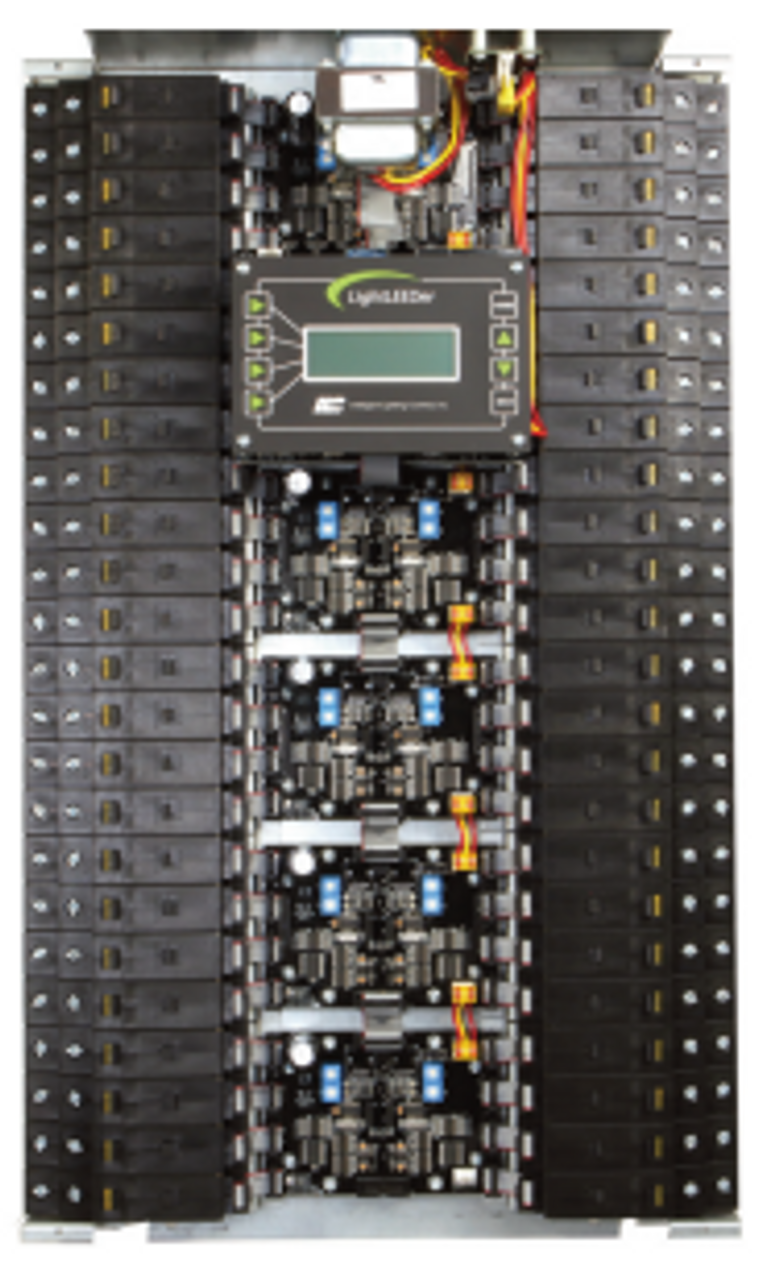

A LightLEEDer Retrofit controller can take your present outdated LightMaster-4 panel and retrofit it up to today's standards. All the enhanced features of the current LightLEEDer system will be available with this retrofit controller from LightSync switches to dimming outputs. The LightLEEDer LM4 Retro upgrade will support all the original connections for existing 2R9C relays, switch inputs, photocells, transformer, and dimmer outputs by only replacing the LM4 controller. No need to change the high voltage wiring, or even shut off the lights during the upgrade.
Features
- Made in the USA
- Digital CAT-5 Ready
- Direct Retrofit controller matches original layout and mounting
- Original Connections are supported using the pull off terminal blocks for relays, power, inputs and dimming
- All ON/Off override switch with relay status LED
- 3-Wire inputs that match original LM4 configuration for easy reuse of existing switches
- LightSync G3 stations and legacy G2 stations supported
- Dimming output 0-10V provide
- 2R9C relay output for existing relays
Specifications
Physical:
- 5.00” W x 7.00” H
Electrical:
- 16VAC CT from existing transformer
Inputs and Outputs:
- 3-wire power input for existing transformer
- Four 3-Wire switch inputs with status
- Two ILC photocell push to terminate inputs
- Four 2R9C relay outputs
- Four 0-10VDC dimming control outputs
Safeguards:
- Power surge and spike suppression up to 123 volts on the 16VAC power input
- Data Line surge and spike suppression up to 8Kv and 15Kv through air
- Memory retention for firmware and programming up to 200 years and electrostatic discharge to 4Kv
- Real-Time-Clock time retention 45 days or greater without power
Operating Environment:
- Location Interior Space
- Operating Temperature 0° to 50° C
- Humidity 10% to 90% Non-condensing
