Product Description

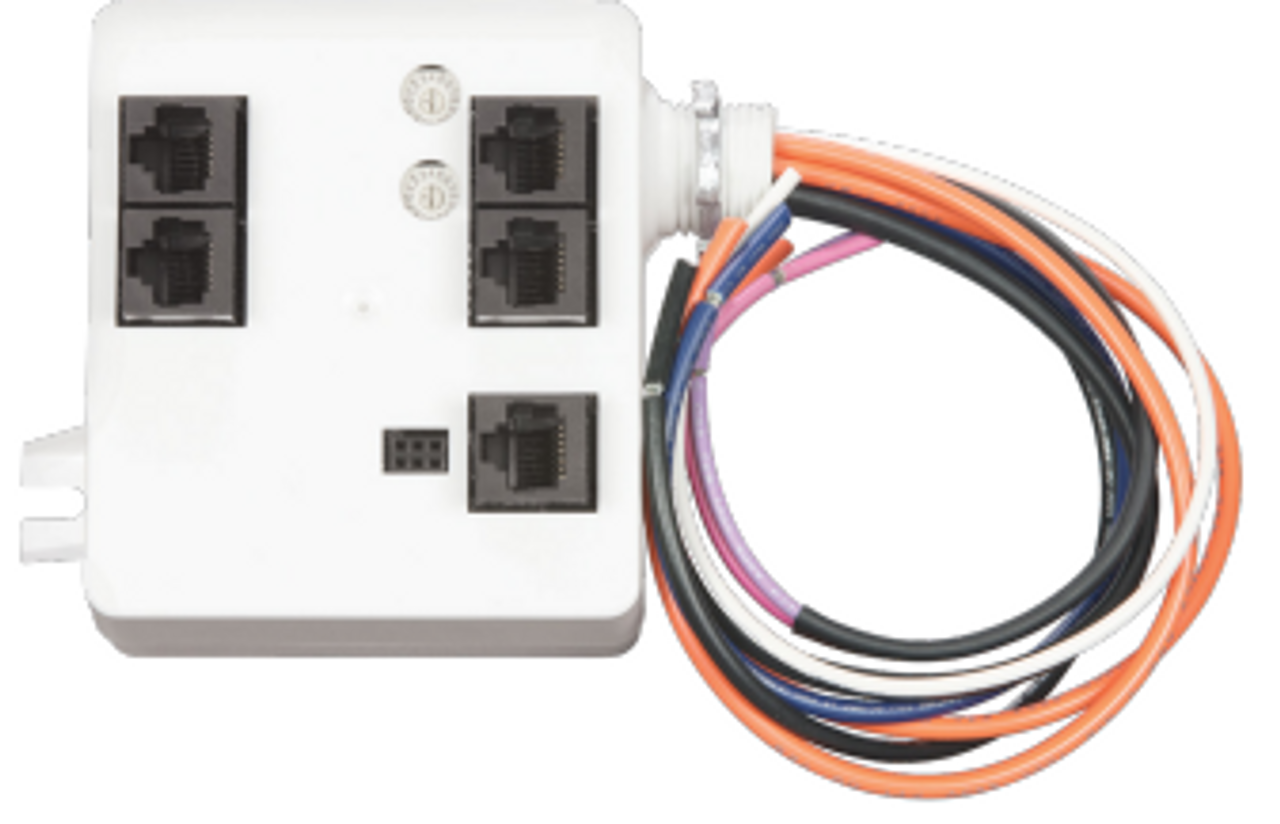

ILC LLEVO-INT-2 LightLEEDer EVO Integrated Controller - 2 Relay Output
Overview
The LightLEEDer EVO Integrated 2 Relay Controller can operate up to two loads. This Controller includes the configuration options of an EVO with two on-board relays and 0-10V dimming integrated into one package for easy installation. The LLEVO-INT-2 relay Controller is ideal for a small office with two zones of lighting control with daylight harvesting or one lighting zone and a plug load. It has RJ-45 ports for local digital LightSync switches, occupancy sensors, and a photo sensor. This convenient and easy to install two relay Controller can be used as a stand-alone device or networked with other LightLEEDer panels
Features
- Made in the USA, meets BABA Requirements
- 2 Isolated load relays rated up to 20 Amps for lighting loads or plug-loads
- Galvanically Isolated 0-10V dimming outputs
- Occupancy sensor input RJ-45 port for motion sensor occupancy or vacancy control
- Photocell Sensor input RJ-45 port for daylight monitoring
- RJ-45 port for digital LightSync switch devices
- Power for digital LightSync switches, photocell sensor and occupancy sensors
- Easy installation with everything Integrated in one convenient box
- Oversized relays for extended life of product with contacts designed for LED inrush current
- Room Controller remote panels supported
- Pre-programmed configurations for vacancy (F1) or occupancy (F2) motion sensors operation and LSG3 switches
- Standalone or Networked with any LightLEEDer controller or EVO panel
- Enclosure suitable for plenum mounting
Specifications
Safeguards:
- Power surge and spike suppression up to 123 volts from power supply to controller
- Memory retention for firmware and programming up to 200 years and electrostatic discharge to 4kV
- Galvanically isolation to 1500V for the 0-10VDC dimmer outputs, with revert to 100% on power loss
Physical:
- Enclosure: 3.10” x 3.50” x 1.875”
- Plastic enclosure with 1/2” nipple and mounting tab
- Color coded wire leads for easy field termination
- RJ-45 connectors provide for easy connections
Interfaces:
- Network In/Out ports for LightLEEDer system connection
- Occupancy sensor input with RJ-45 port
- Photocell Sensor input with RJ-45 port for daylight sensor
- RJ-45 port for up to 61 digital LS CAT-5 device addresses
Operating Environment:
- Location: Interior space
- Operating Temperature: 0° to 50° C
- Humidity: 10% - 90% Non-condensing
- Atmosphere: Non-explosive/corrosive
- Vibration: Stationary
Electrical:
- 120/277VAC @ .6 amps
- Dimming: 100mA sink per isolated output
